Engine Electrical Component Views

Fig 1: Front Lower Left of the Engine (LSJ)

GM1550909

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor (C67)
2	Generator
3	A/C Refrigerant Pressure Sensor (C67)
4	Starter
5	Supercharger Intercooler Coolant Pump
6	A/C Compressor Clutch (C67)

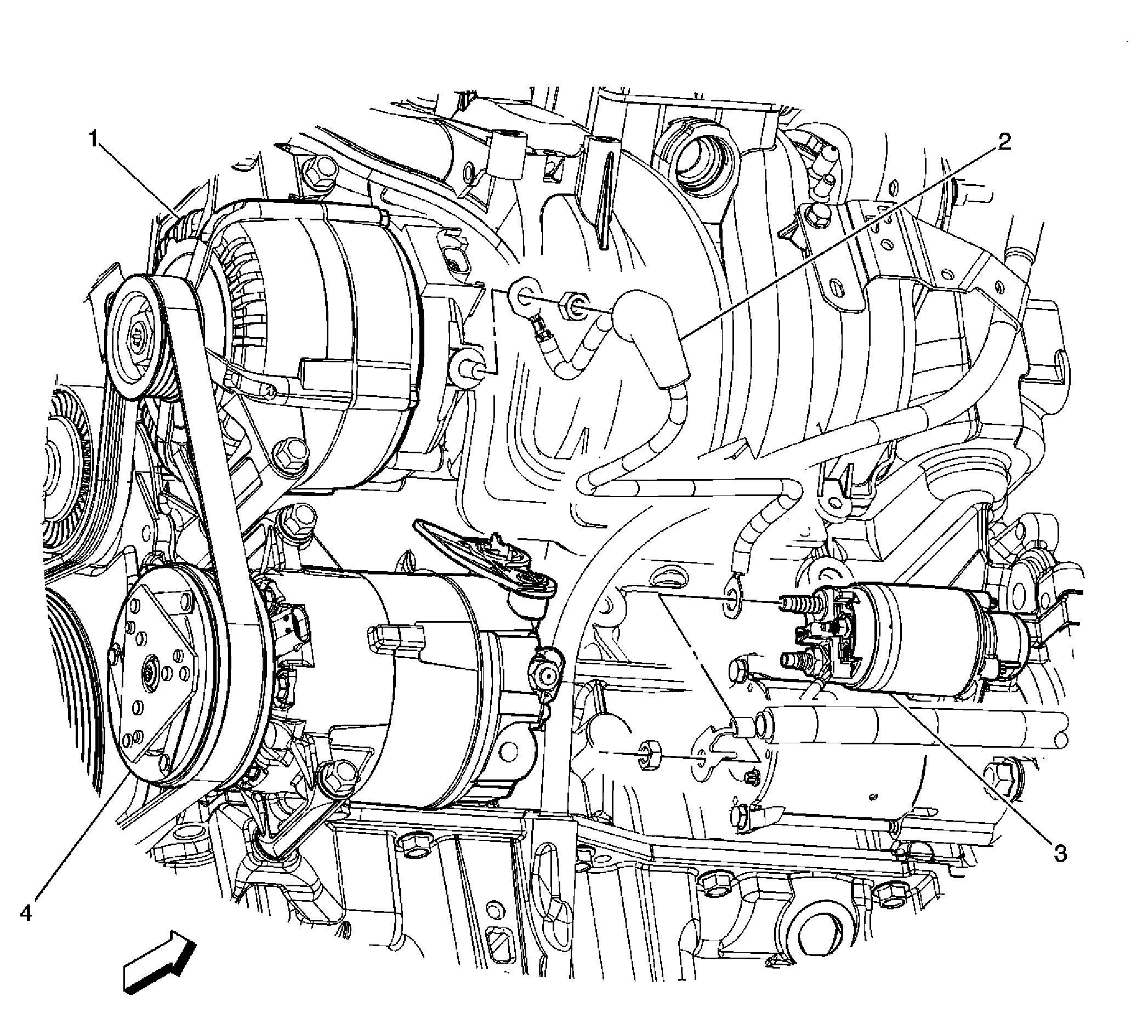

Fig 2: Front Lower Left of the Engine (L61/LE5)

GM1550908

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Fusible Link
3	Starter Soleniod
4	A/C Compressor Clutch (C67)

Fig 3: Pedal Components

GM1543932

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CCP) Switch (M86)
2	Clutch Start Switch (M86)
3	Stop Lamp/TCC Switch
4	Cruise Control Cancel Switch (M86)
5	Accelerator Pedal Position (APP) Sensor
6	Floor Pan

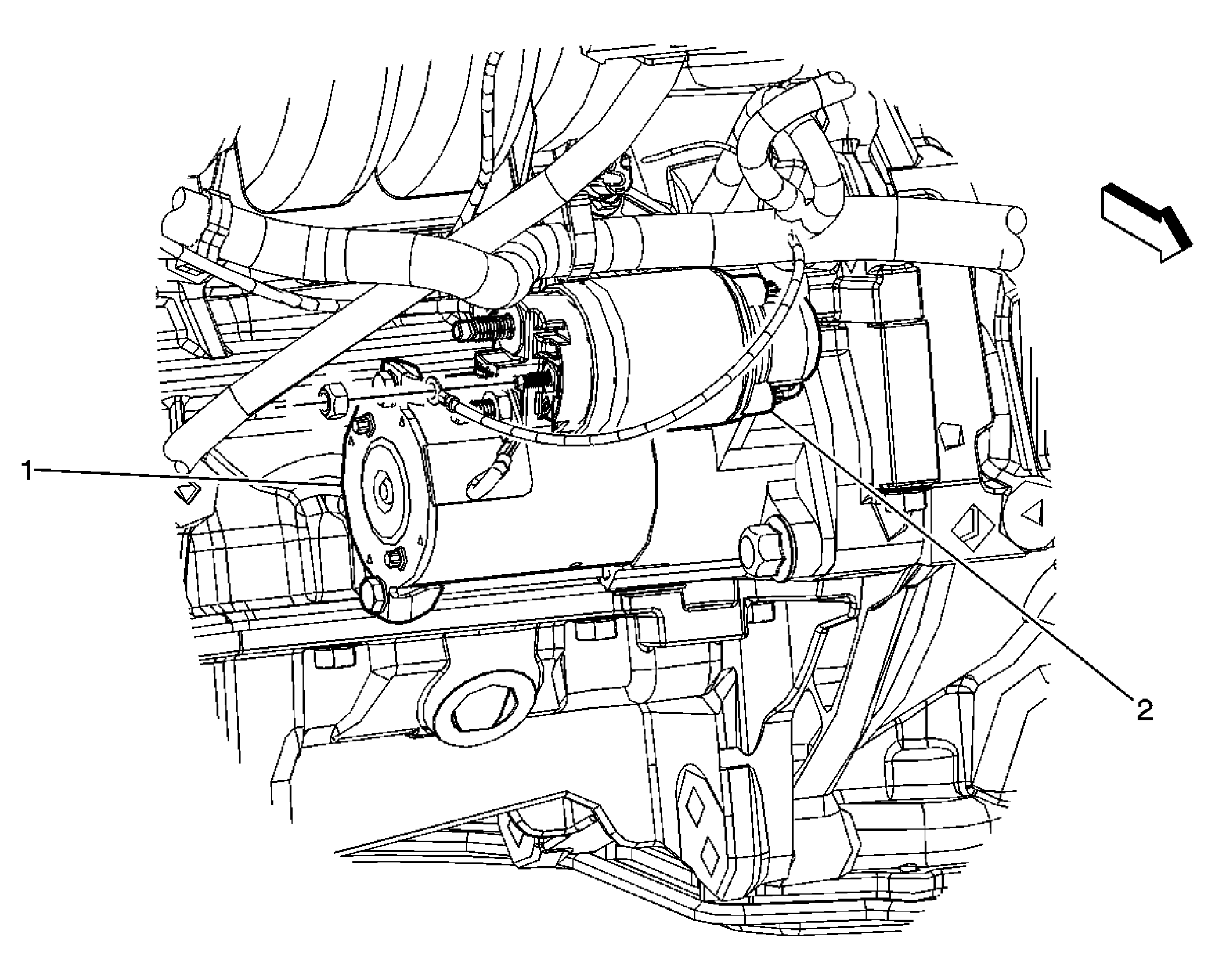

Fig 4: View Of Right Lower Front of Engine - L61

GM1265624

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	Starter Solenoid

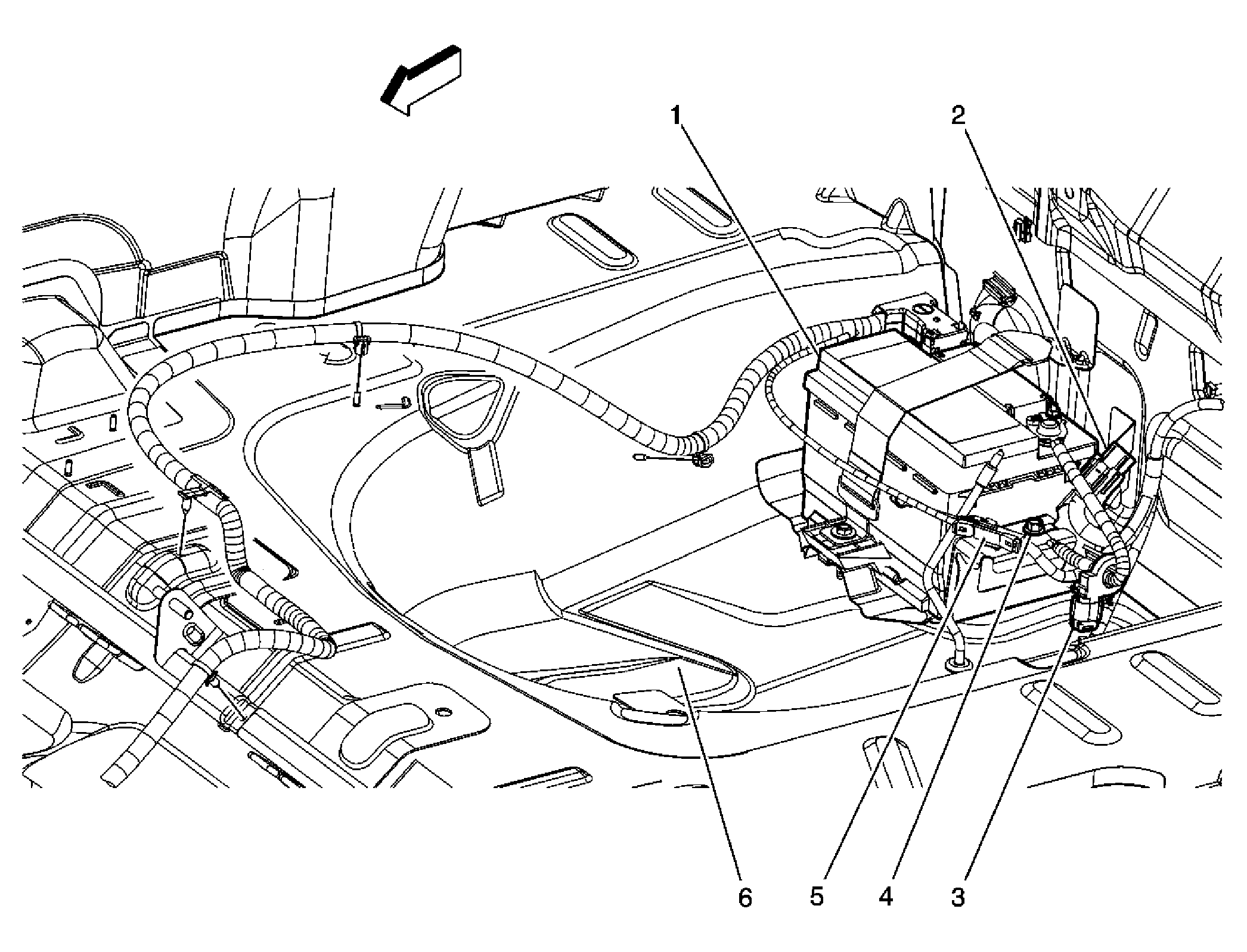

Fig 5: Rear Floor Pan Components and G403

GM1549037

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Fuse Holder 50A
3	Battery Current Sensor
4	G403
5	C400
6	Spare Tire Well
