Installation Procedure

    Fig 1: Battery Tray
    GM1548332Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not tip the battery more than 40 degrees during battery installation.
  1. Install the battery (4).
  2. Install the battery strap (2) and retainer (3).
    3. NOTE: Refer to Fastener Notice .
  3. Install the battery retainer bolt (1).

    Tighten:  Tighten the bolt to 18 N.m (13 lb ft).

    4. Fig 2: View Of Battery Vent Tube To Battery
    GM1656246Courtesy of GENERAL MOTORS CORP.
  4. Install the battery vent tube to the battery.

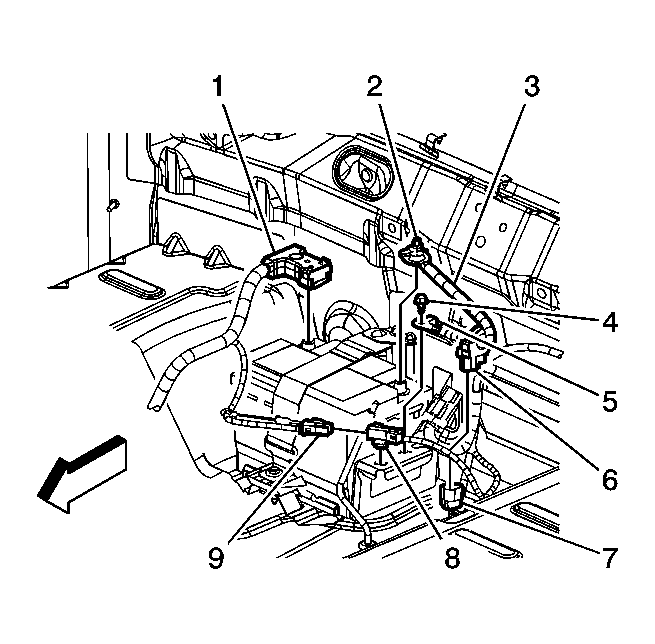

    5. Fig 3: View Of Positive Battery Cable To Battery
    GM1656237Courtesy of GENERAL MOTORS CORP.
  5. Position the positive battery cable (1) to the battery.
  6. Tighten the positive battery cable bolt.

    Tighten:  Tighten the bolt to 17 N.m (13 lb ft).

  7. Close the positive battery cable cover.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
