Refrigerant Pressure Sensor / Switch: Locations

HVAC Component Views

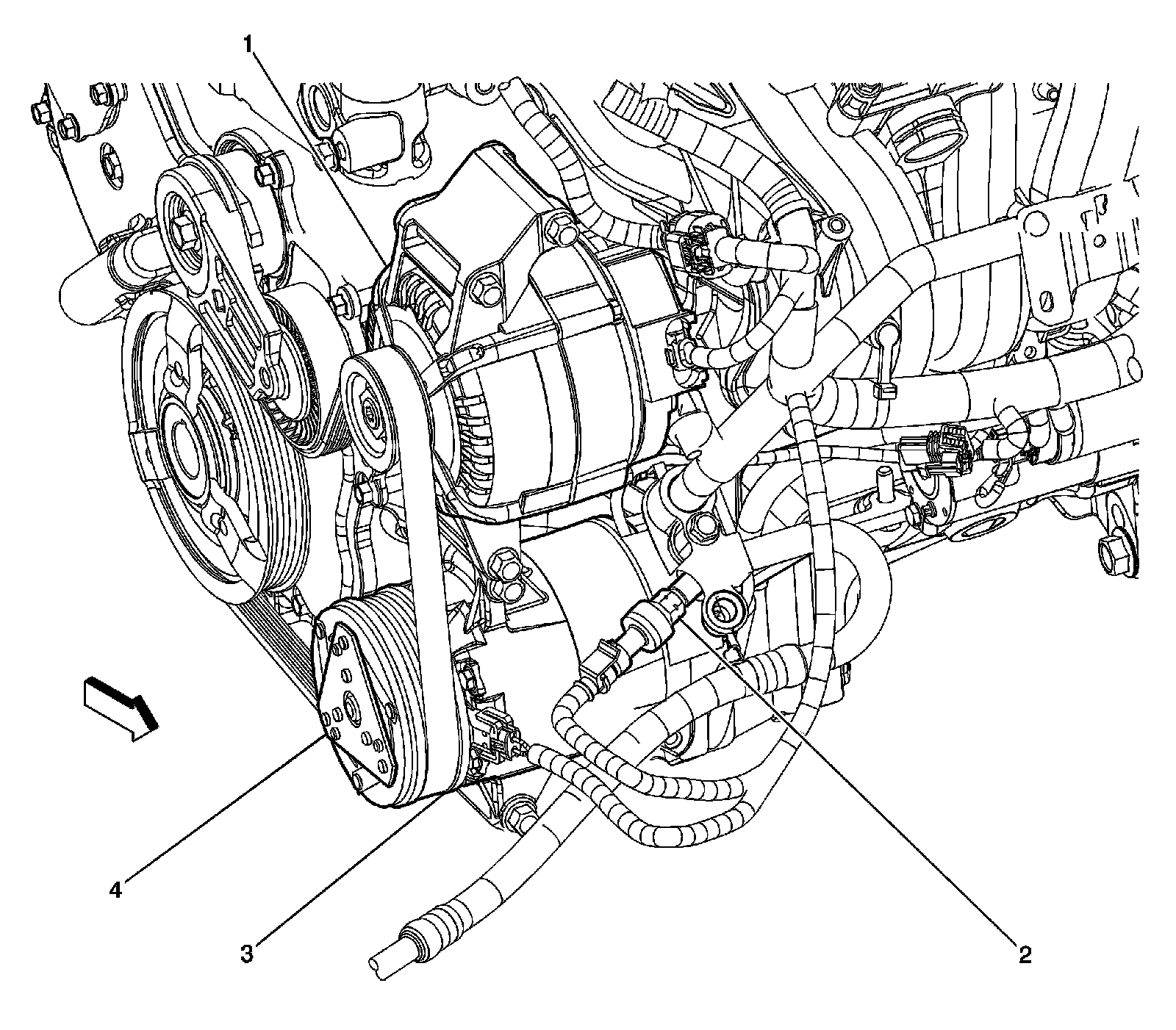

Generator and A/C Compressor (L61/LE5)

Generator and A/C Compressor (L61):

1 - Generator
2 - A/C Refrigerant Pressure Sensor (C67)
3 - A/C Compressor (C67)
4 - A/C Compressor Clutch (C67)
