Emergency Contact Module: Service and Repair

OnStar Module Bracket Assembly Replacement

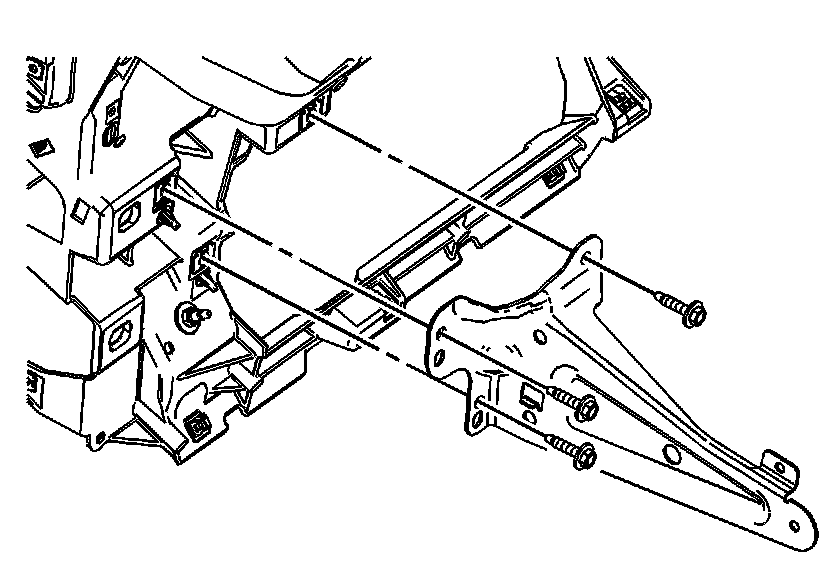

Removal Procedure

1. Remove the right closeout panel.
2. Remove the communication interface module.




3. Remove the OnStar bracket bolts.




4. Remove the OnStar module bracket.

Installation Procedure




1. Install the OnStar module bracket.

Notice: Refer to Fastener Notice.

2. Tighten the OnStar bracket bolts.

Tighten the bolts to 10 N.m (89 lb in).

3. Install the communication interface module.
4. Install the right closeout panel.
