Differential, Manual Transaxle

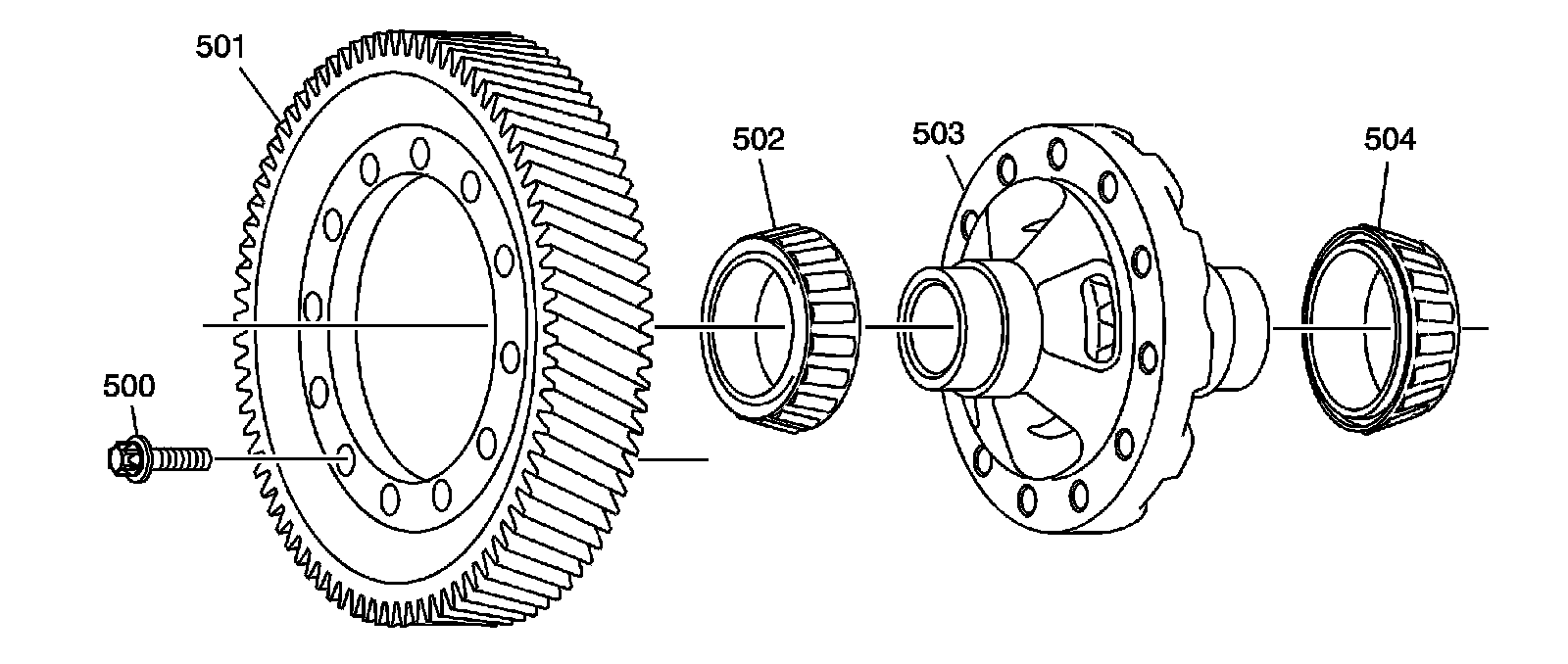

Disassembled Views

Differential Components:





500 - Front Differential Ring Gear Bolt/Screw
501 - Front Differential Ring Gear
502 - Front Differential Bearing Cone Assembly
503 - Front Differential
504 - Front Differential Bearing Cone Assembly
