Power Steering Pump

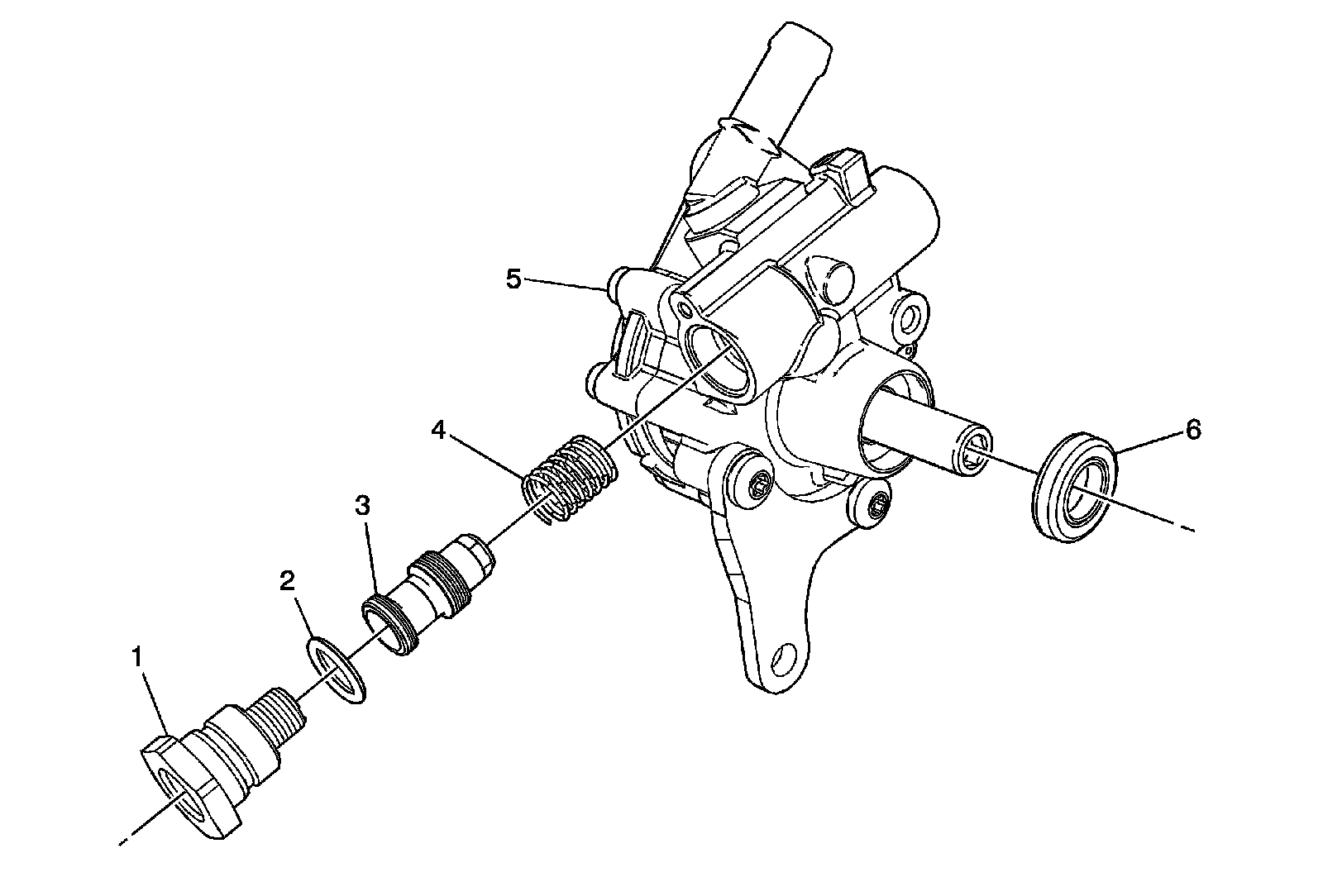

Power Steering Pump Disassembled View (LY7)

Power Steering Pump Disassembled View:

1 - O-ring Union Fitting
2 - O-ring Seal
3 - Power Steering Pump Flow Control Valve
4 - Power Steering Pump Flow Control Spring
5 - Power Steering Pump Housing
6 - Power Steering Pump Drive Shaft Seal
