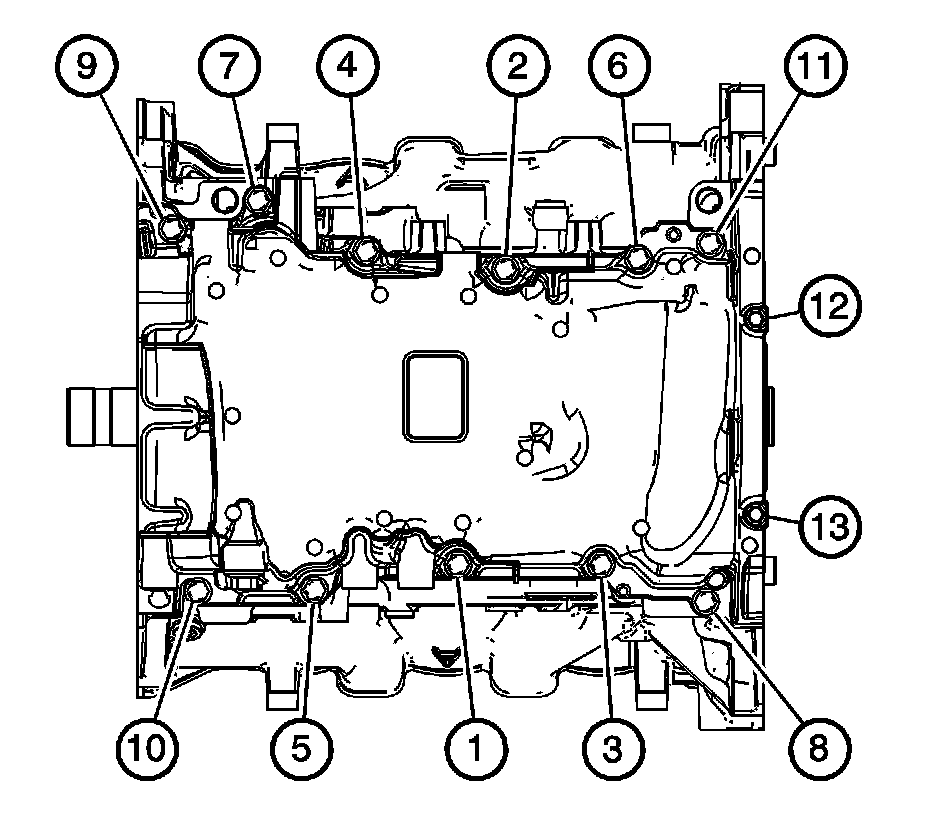

Oil Pan, Engine
Oil Pan
Bolt - Block M8 23 N.m 17 lb ft
Bolt - Crankshaft Rear Oil Seal Housing M6 10 N.m 89 lb in
Windage Tray Bolt 10 N.m 89 lb in
Oil Pan
Bolt - Block M8 23 N.m 17 lb ft
Bolt - Crankshaft Rear Oil Seal Housing M6 10 N.m 89 lb in
Windage Tray Bolt 10 N.m 89 lb in
