Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

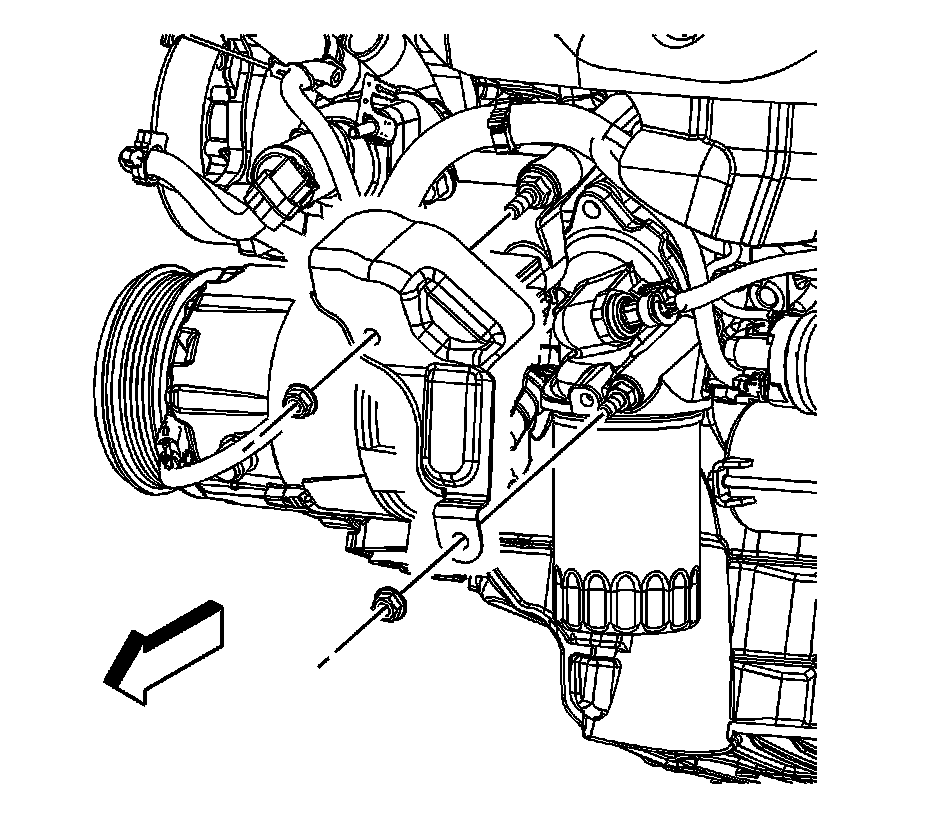

2. Remove the oil pressure heat shield bolts and shield.




3. Disconnect engine oil pressure sensor electrical connector (1).




4. Remove the engine oil pressure sensor.

Installation Procedure





Notice: Refer to Fastener Notice .

1. Install the engine oil pressure sensor.

Tighten the sensor to 16 N.m (12 lb ft).




2. Connect engine oil pressure sensor electrical connector (1).




3. Install the oil pressure heat shield and bolts.

Tighten the bolts to 10 N.m (89 lb in).

4. Lower the vehicle.
