Entertainment/Communication Component Views

Fig 1: Front Center Of Roof Component View

Courtesy of GENERAL MOTORS CORP.

Fig 2: View Of Roof/Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror

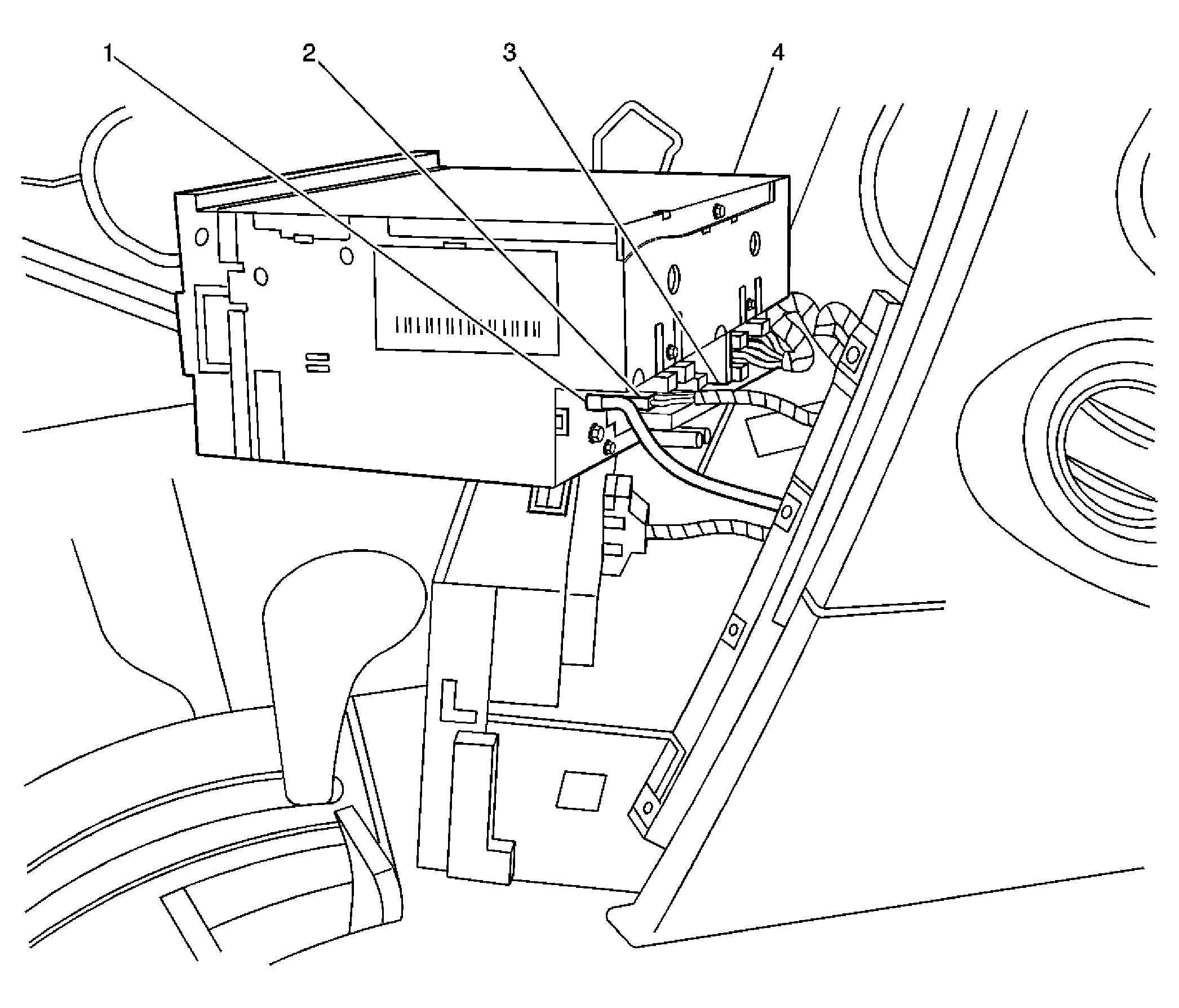

Fig 3: Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Antenna
2	Vehicle Communications Interface Module (VCIM) - C1
3	Vehicle Communications Interface Module (VCIM) - C2
4	Vehicle Communications Interface Module (VCIM)
5	Navigation Antenna

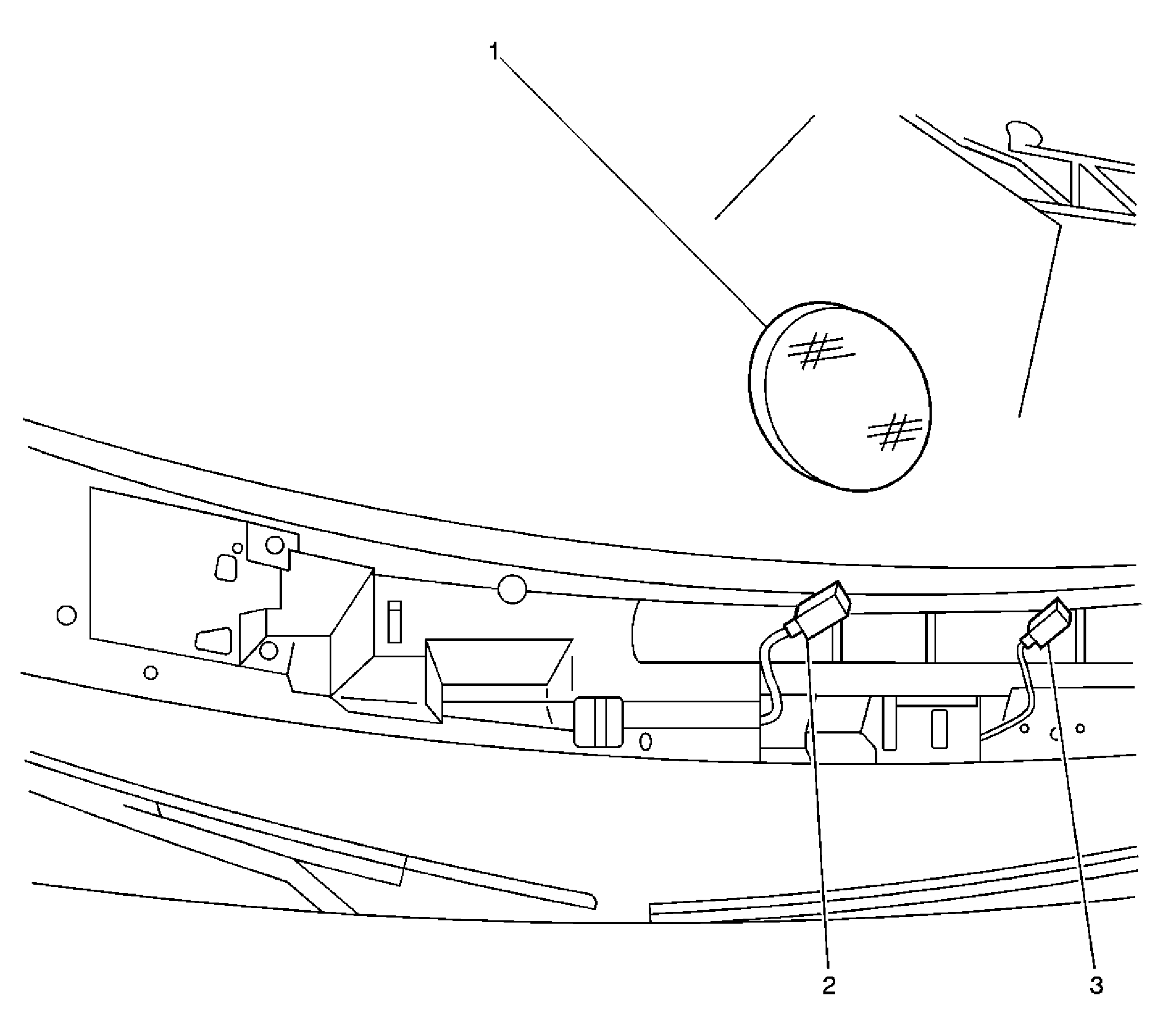

Fig 4: Top Left Side Of Rear Package Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Compass Module
2	Navigation Antenna

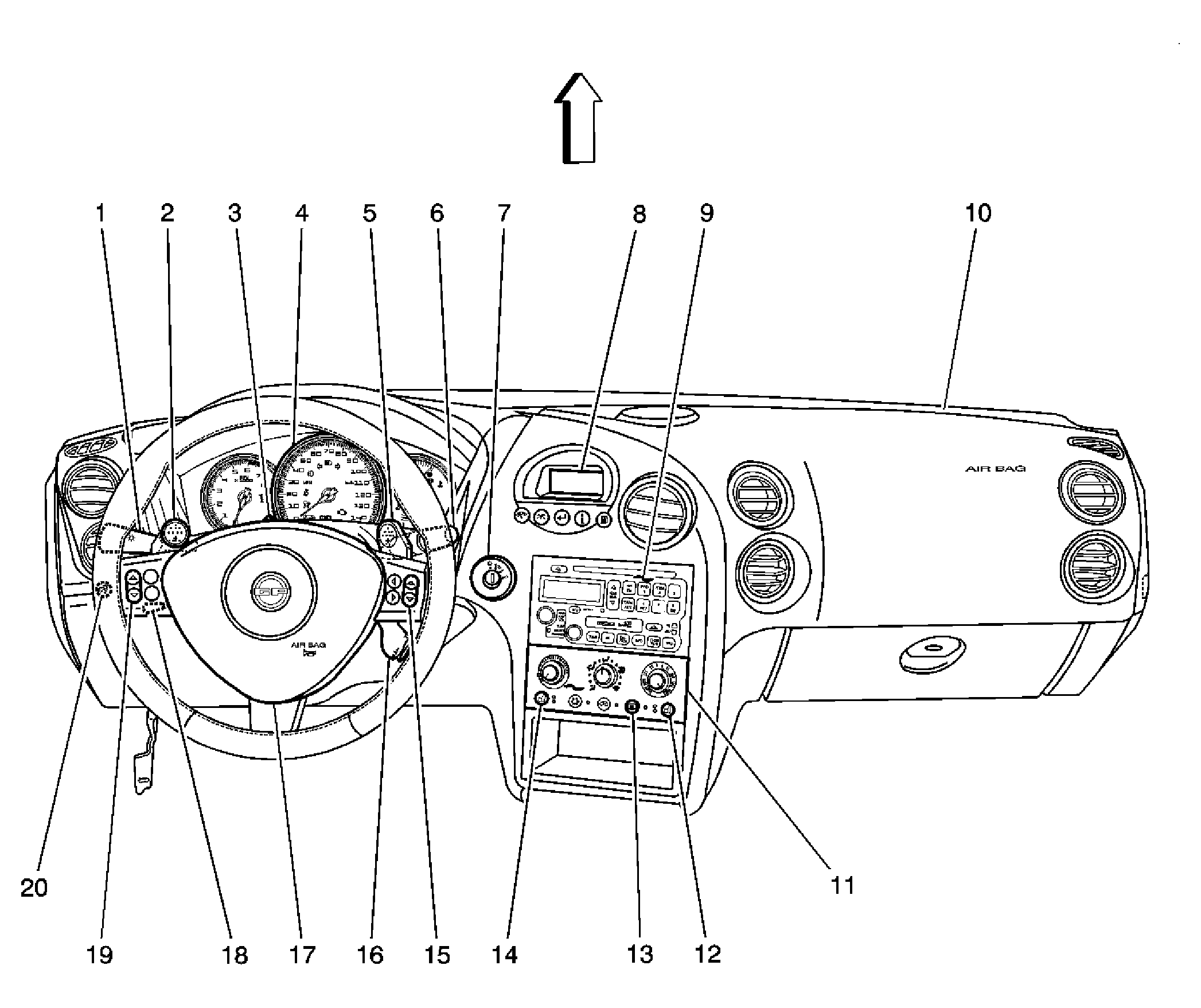

Fig 5: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	Navigation Radio Antenna
11	HVAC Control Module
12	Heated Seat Switch - Front Passenger
13	Rear Defogger Switch
14	Heated Seat Switch - Driver
15	Steering Wheel Controls - Right
16	Cruise Control Switch
17	Inflatable Restraint Steering Wheel Module
18	Tilt Steering Wheel Lever
19	Steering Wheel Controls - Left
20	Interior Lamp Switch

Fig 6: Top of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Center (U87)
2	Ambient Light Sensor (C67), Sunload Sensor Assembly (CJ2)
3	Theft LED

Fig 7: Center Of Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Fig 8: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Inflatable Restraint Steering Wheel Module
16	Tilt Steering Wheel Lever
17	Steering Wheel Controls - Left
18	Interior Lamp Switch

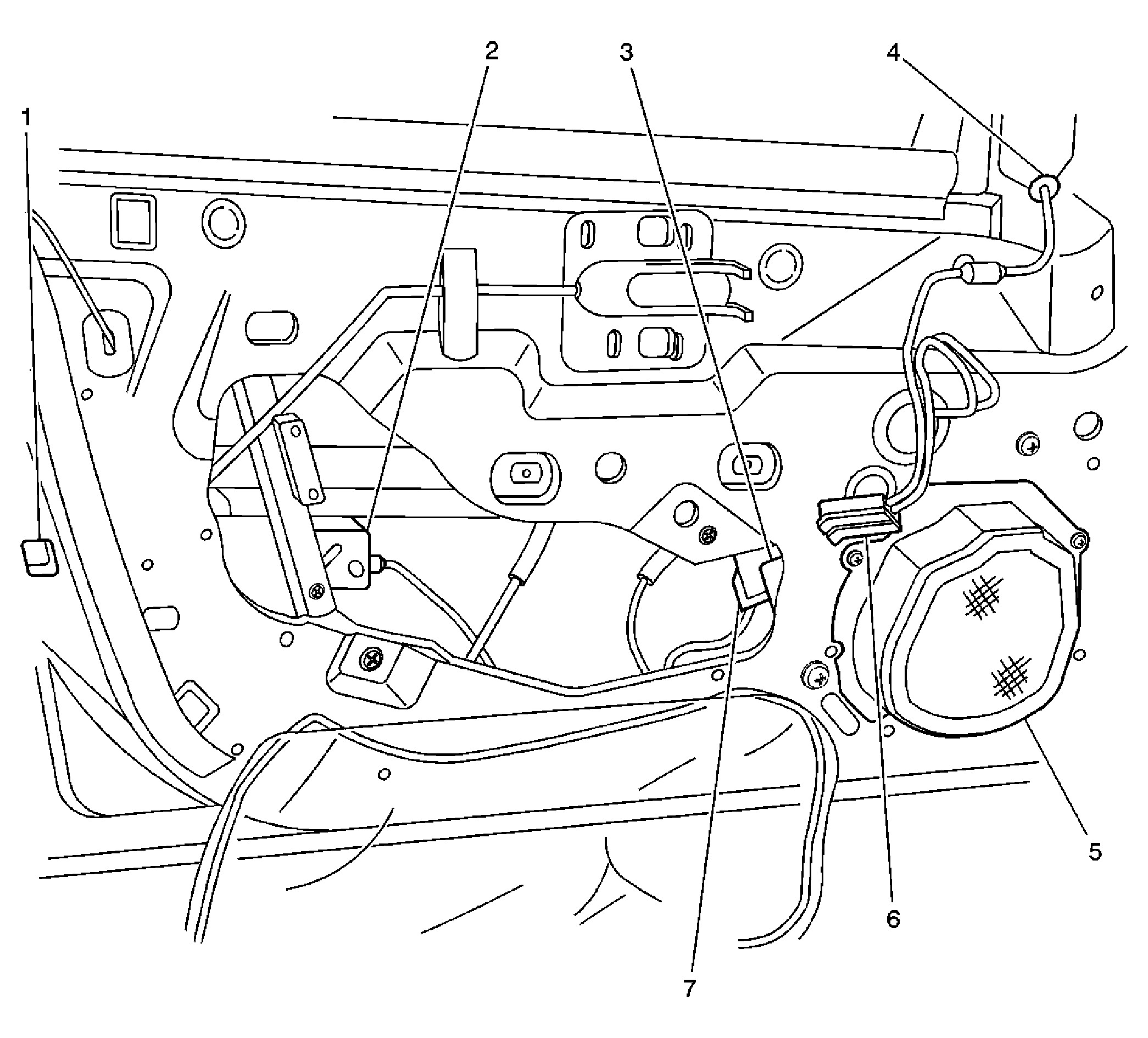

Fig 9: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock - Driver
2	Inflatable Restraint Side Impact Sensor - Left (AY1)
3	Window Motor - Driver
4	Outside Rearview Mirror - Driver
5	Speaker - LF Door
6	C303
7	S305

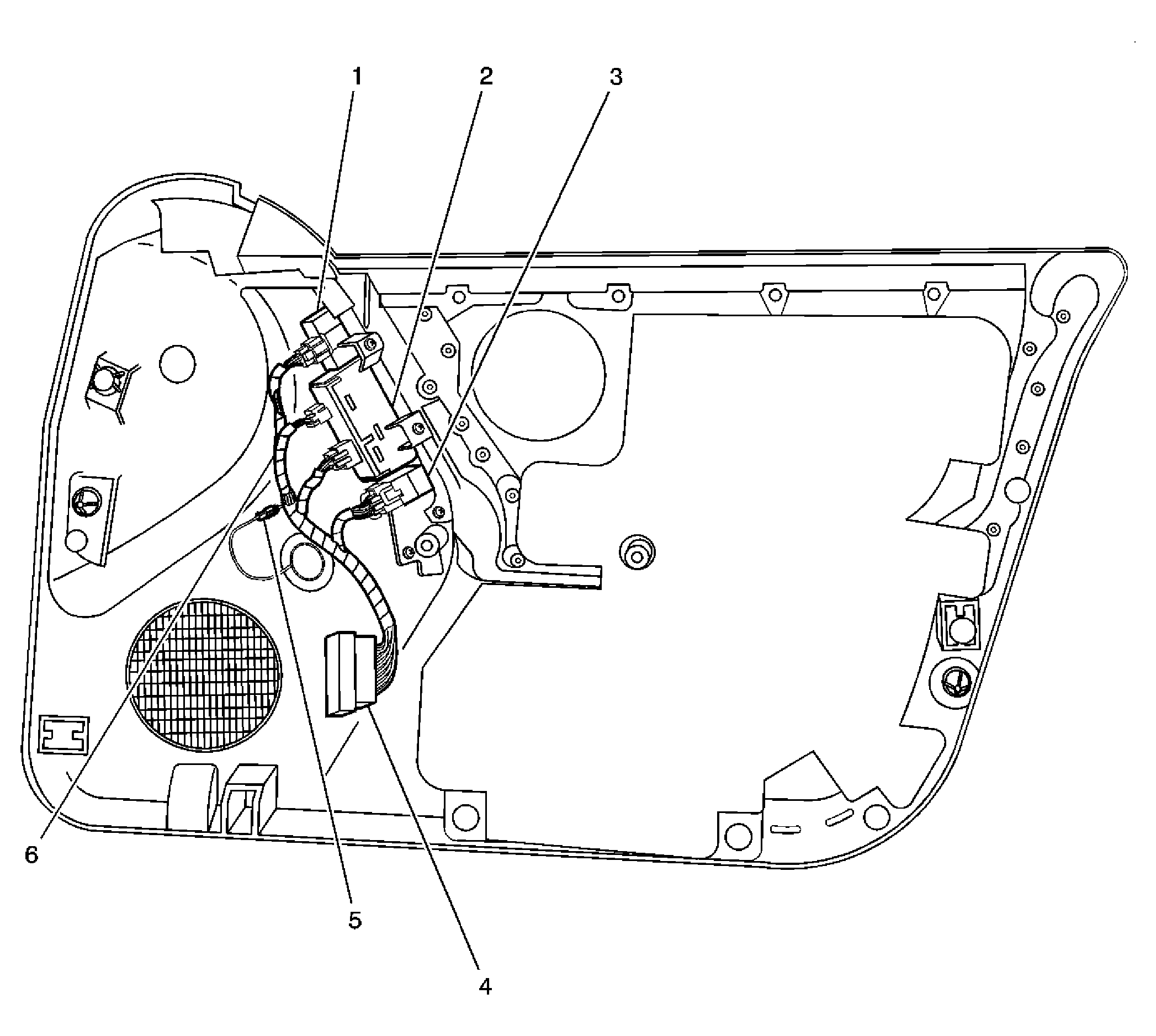

Fig 10: Driver Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Window Switch - Driver
3	Door Lock Switch - Driver
4	C303
5	Speaker - LF Door Tweeter Connector
6	S304

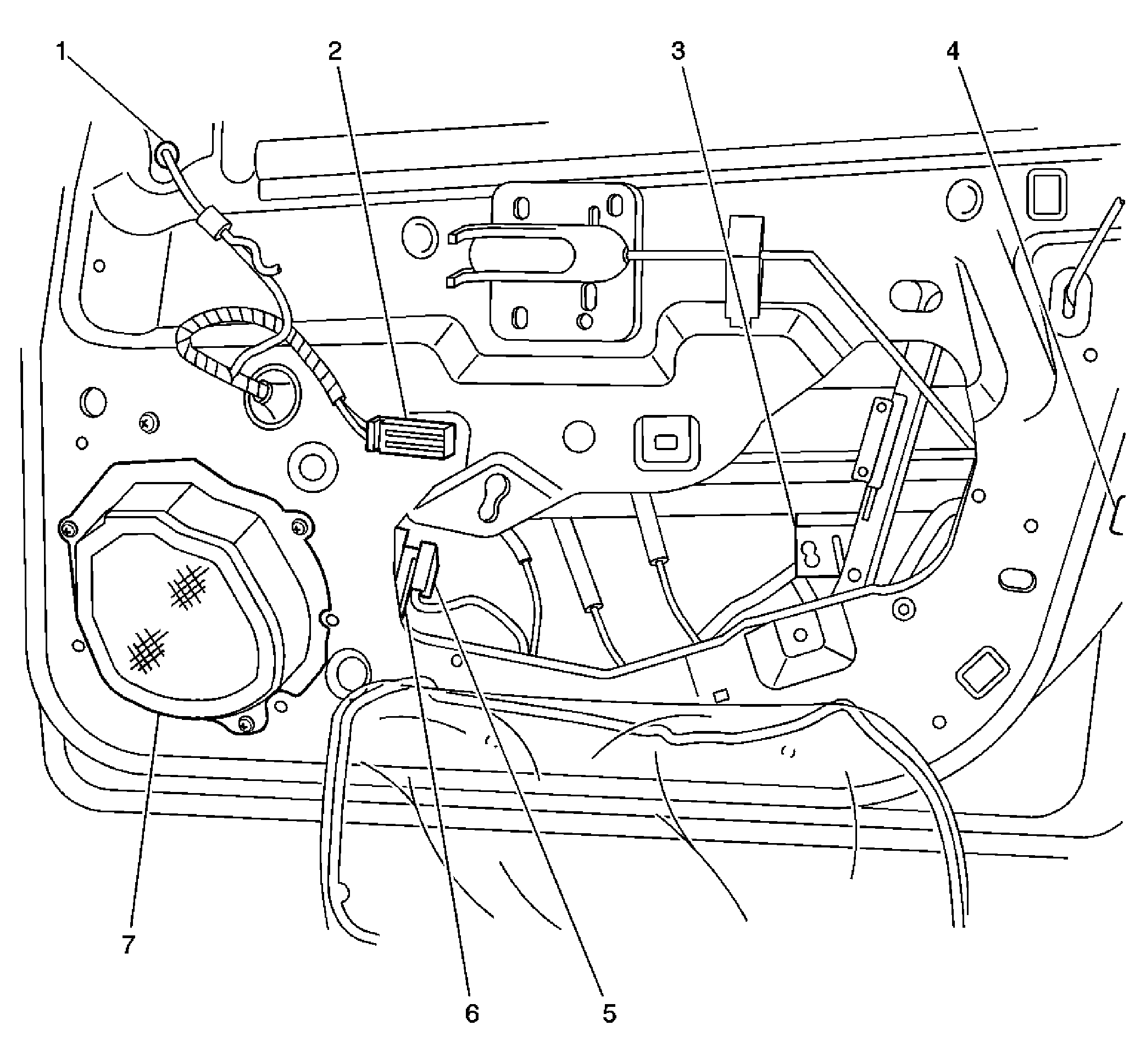

Fig 11: Front Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	C304
3	Inflatable Restraint Side Impact Sensor - Right (AY1)
4	Door Lock - Front Passenger
5	Window Motor - Front Passenger
6	S604
7	Speaker - RF Door

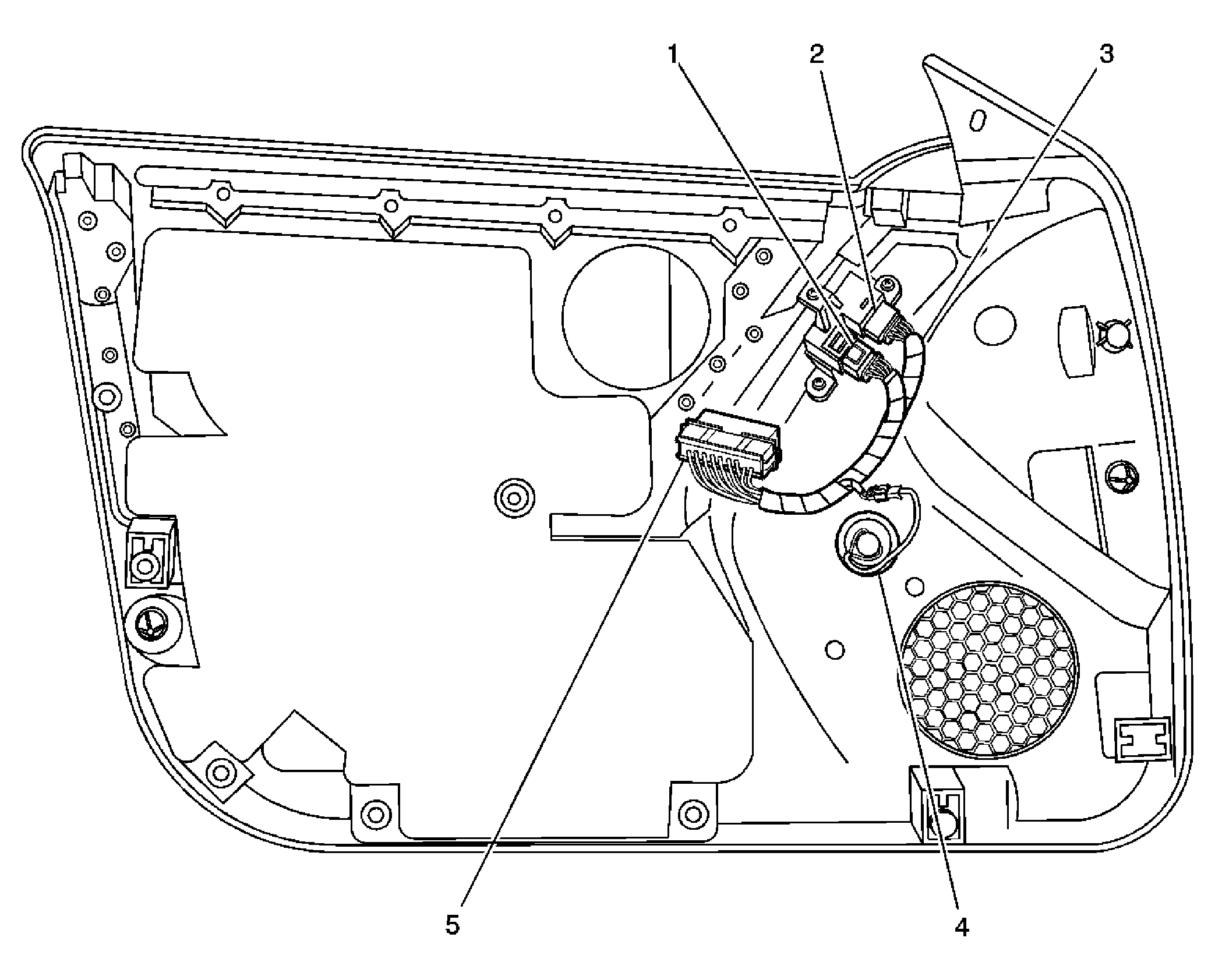

Fig 12: Front Passenger Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger
2	Window Switch - Front Passenger
3	S605
4	Speaker - RF Door Tweeter
5	C304

Fig 13: Center Rear Of Roof Component Views

Courtesy of GENERAL MOTORS CORP.

Fig 14: Left Side Of The Rear Window Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR (Speaker - RR Similar)
2	Rear Compartment Courtesy Lamp
3	Audio Amplifier (U87)
4	Audio Amplifier - C2 (U87)
5	Audio Amplifier - C1 (U87)

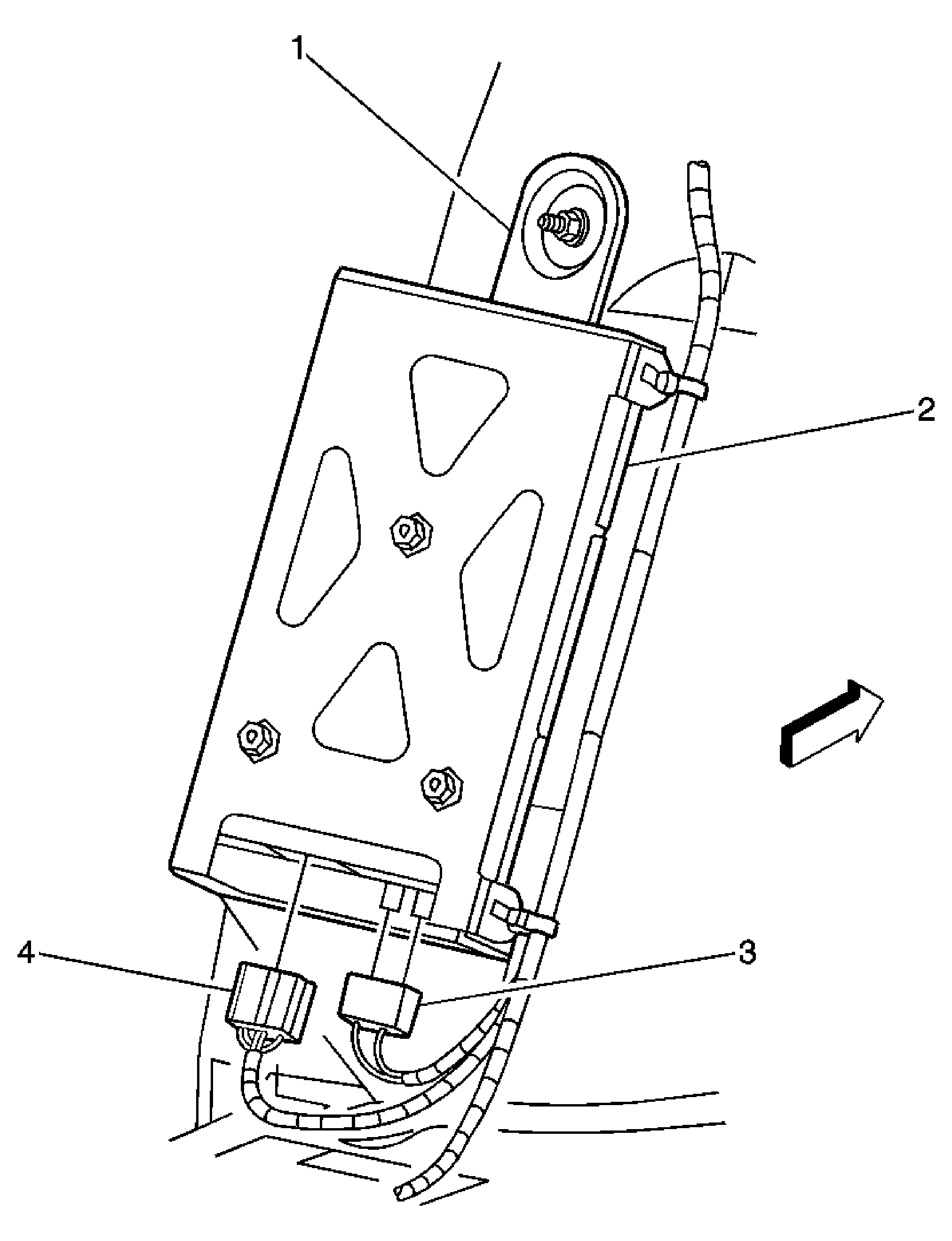

Fig 15: Left Side Of Rear Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Rear Wheel Well
2	Digital Radio Receiver
3	Digital Radio Receiver Connector - C2
4	Digital Radio Receiver Connector - C1

Fig 16: Rear Of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna
2	Center High Mounted Stop Lamp (CHMSL)
3	Backup Lamp - Right
4	License Lamp - Right
5	License Lamp - Left
6	Backup Lamp - Left
