Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Entertainment/Communication Components (Behind Instrument Panel)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp
2	HVAC Control Module
3	Radio
4	Air Temperature Sensor - Inside
5	Steering Wheel
6	Instrument Panel Cluster (IPC)
7	Body Control Module (BCM)
8	Steering Angle Sensor
9	Vehicle Communication Interface Module (VCIM)
10	Cigar Lighter
11	Fuse Block - I/P

Fig 2: Entertainment/Communication Components (Rear of Passenger Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Remote Control Door Lock Receiver (RCDLR)
3	Navigation Antenna
4	Rear Window Shelf
5	Rear Parking Assist (RPA) Module
6	Electronic Compass Module
7	Rear Compartment Courtesy Lamp

Fig 3: Entertainment/Communication Components (Front of Instrument Panel)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lamp Switch Assembly - Fog Lamp
2	Instrument Panel Cluster (IPC)
3	Ignition Switch
4	Air Temperature Sensor - Inside
5	Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (C67)
6	Theft LED
7	Driver Information Center (DIC)
8	Radio
9	HVAC Control Module
10	Heated Seat Switch - Front Passenger
11	Cigar Lighter
12	Heated Seat Switch - Driver
13	Steering Wheel Controls - Right
14	Cruise Control Switch
15	Voice Recorder / Cruise Switch Assembly
16	Steering Wheel Controls - Left
17	Turn Signal / Multifunction Switch
18	I/P Dimmer Switch
19	Lamp Switch Assembly - Interior Lamps

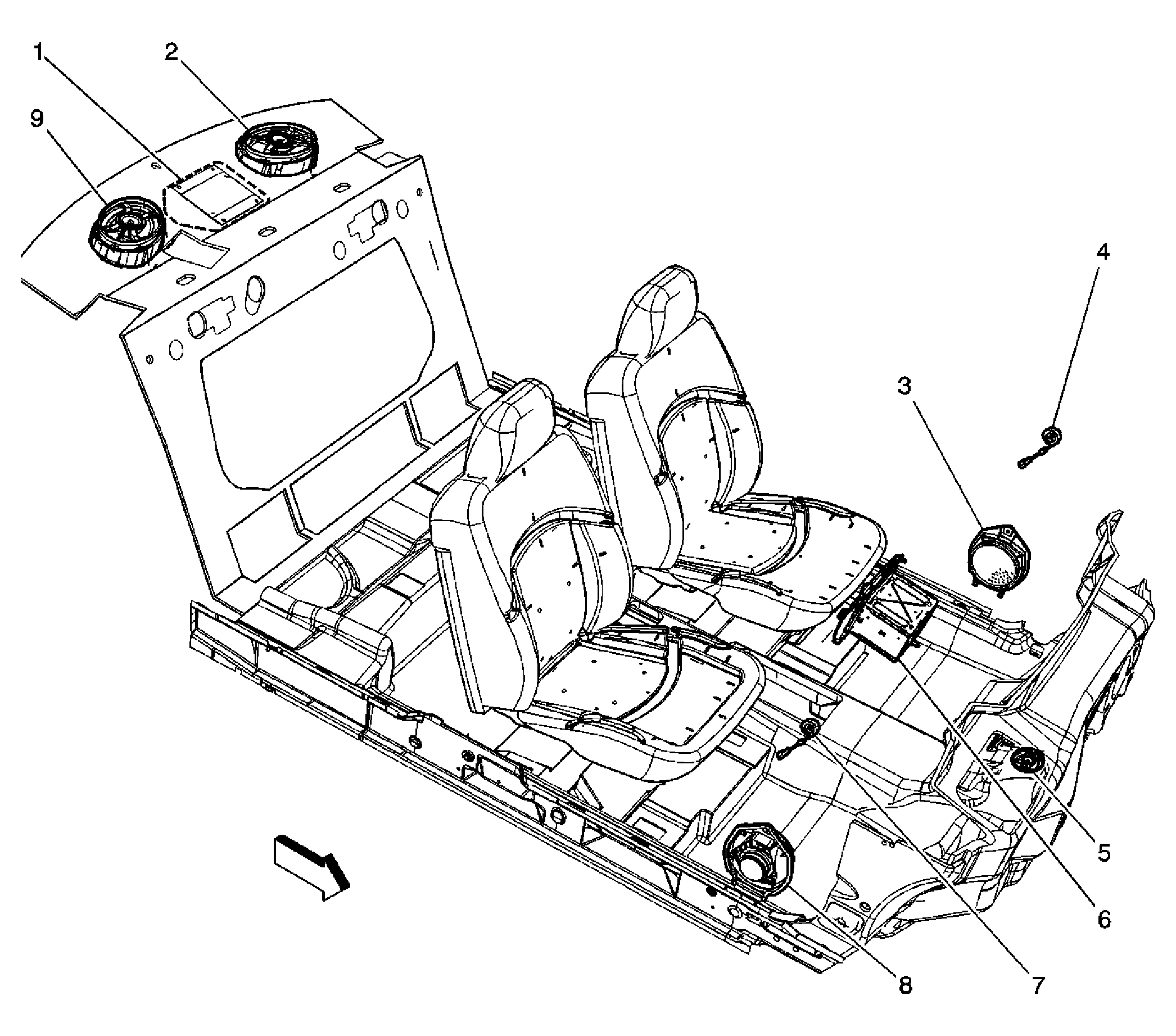

Fig 4: Radio and Speaker Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Amplifier (U88)
2	Speaker - LR
3	Speaker - LF Door
4	Speaker - LF Tweeter
5	Speaker - Center (U88)
6	Radio
7	Speaker - RF Tweeter
8	Speaker - RF Door
9	Speaker - RR

Fig 5: Entertainment/Communication Components (Rear of Passenger Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Remote Control Door Lock Receiver (RCDLR)
3	Navigation Antenna
4	Rear Window Shelf
5	Rear Parking Assist (RPA) Module
6	Electronic Compass Module
7	Rear Compartment Courtesy Lamp

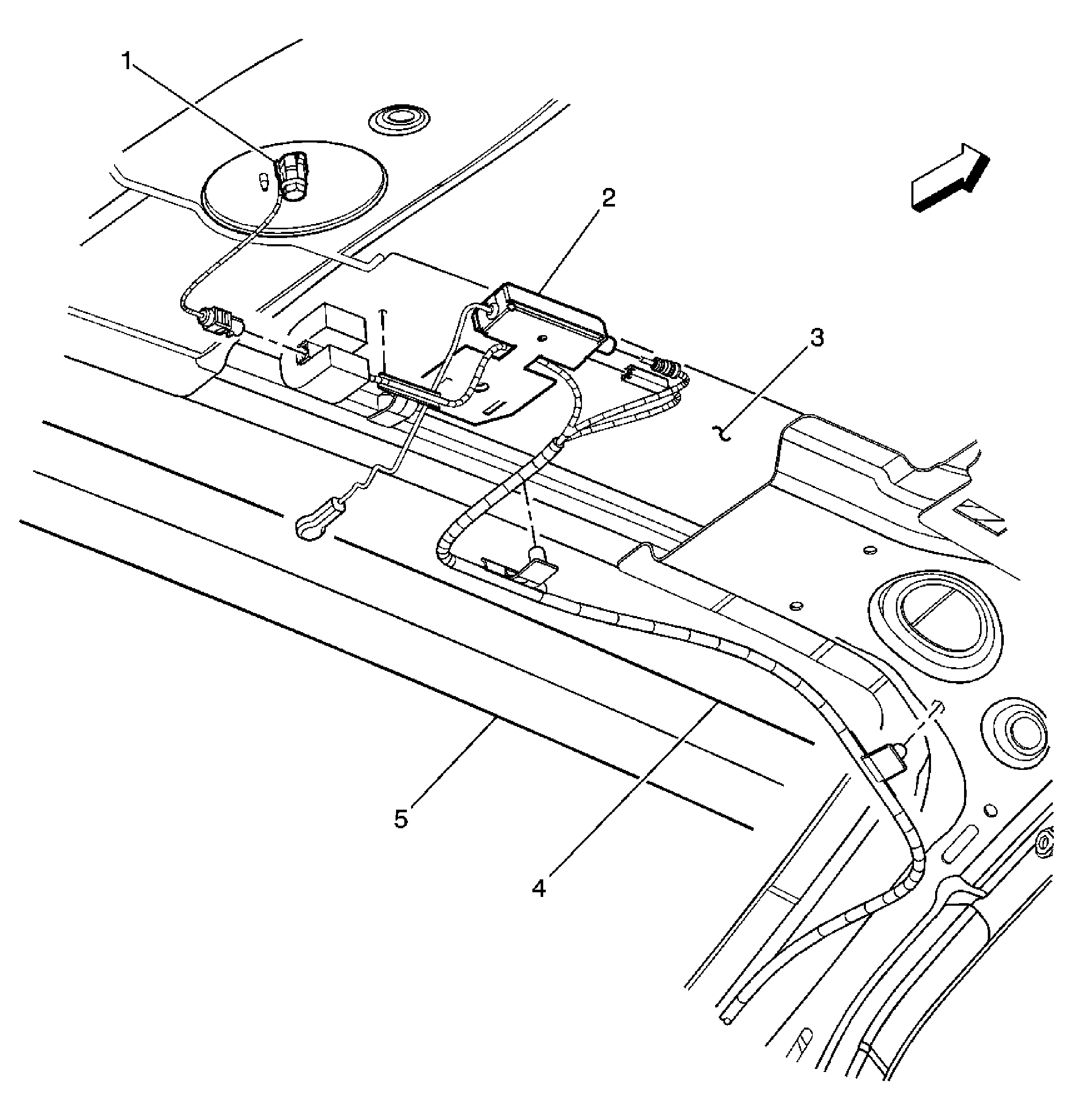

Fig 6: Entertainment/Communication Components (Above Rear Window)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna (U2K)
2	Radio Antenna Module
3	Roof Panel
4	Radio Rear Window Antenna
5	Rear Window Defogger Grid

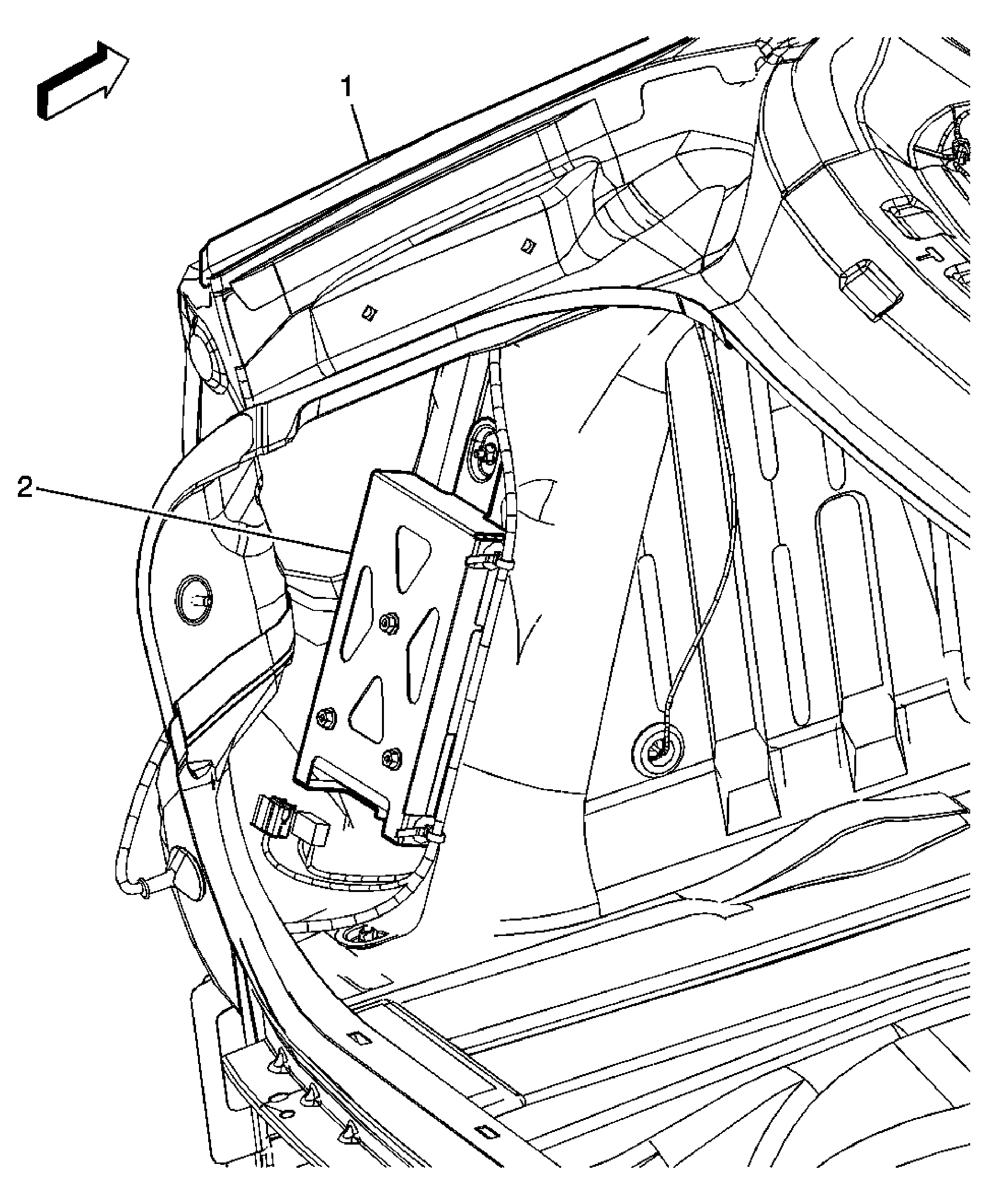

Fig 7: Entertainment/Communication Components (Left Side of Luggage Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LR Fender Panel
2	Digital Radio Receiver (U2K)
