Installation Procedure

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

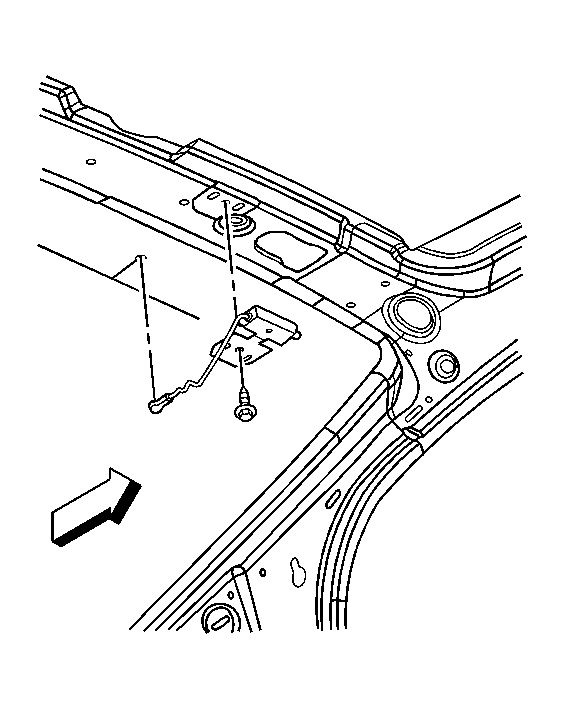

    Fig 1: View Of Antenna Module
    GM907780Courtesy of GENERAL MOTORS CORP.
  1. Connect the rear window antenna lead to the rear window antenna connector.
  2. Connect the antenna coaxial cable.
  3. Connect the antenna module electrical connector.
    4. NOTE: Refer to Fastener Notice .
  4. Install the antenna module and the antenna module bolt.

    Tighten:  Tighten the bolt to 3 N.m (27 lb in).

  5. Install the headliner. Refer to Headlining Trim Panel Replacement .
