Electronic Throttle Control Module

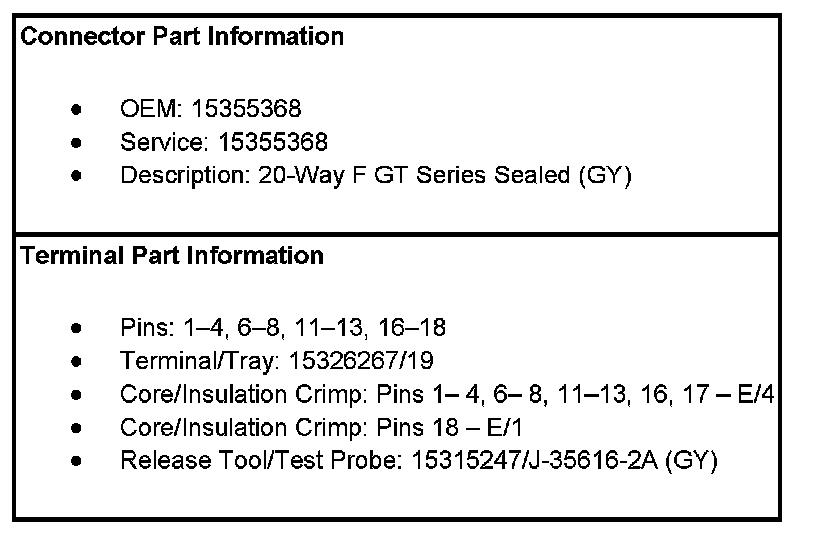

Engine Controls Connector End Views

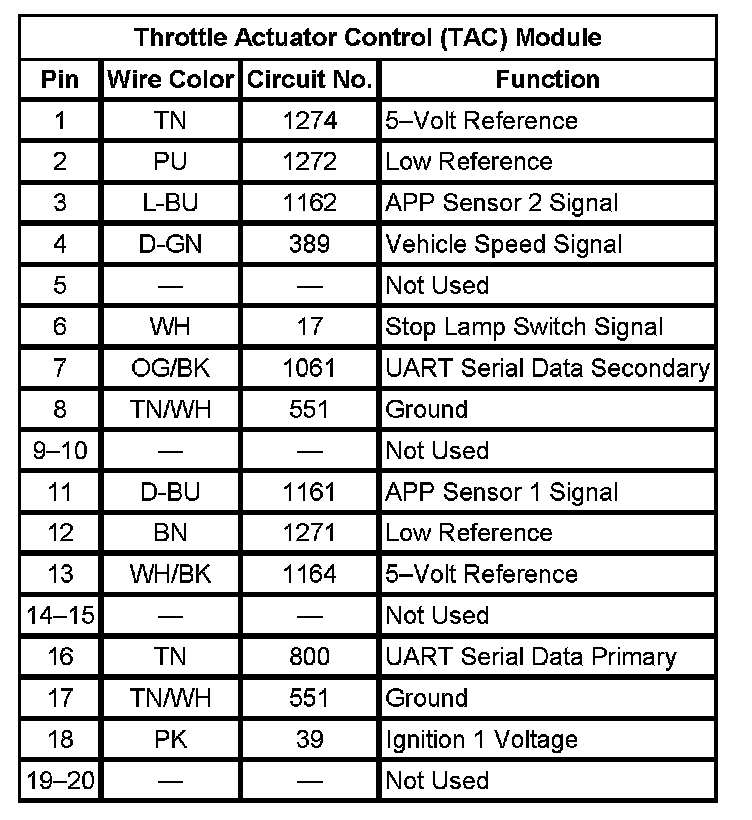

Throttle Actuator Control (TAC) Module
