Air Flow Meter/Sensor: Locations

Engine Controls Component Views

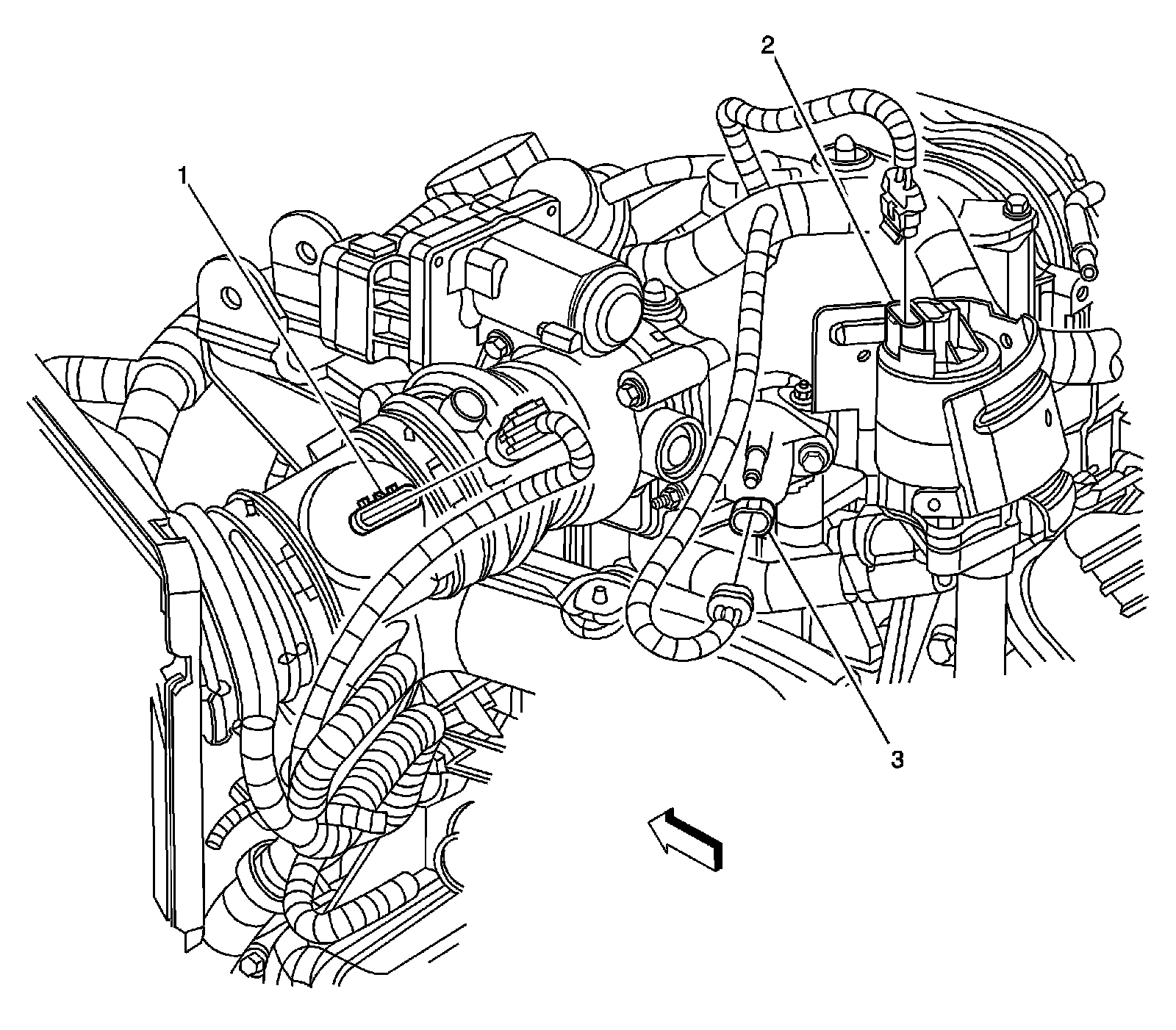

Rear of the Engine




1 - Intake Air Temperature (IAT) / Mass Air Flow (MAF) Sensor
2 - Exhaust Gas Recirculation (EGR) Valve
3 - Evaporative Emission (EVAP) Canister Purge Solenoid
