Antilock Brake System Component Views



Antilock Brake System Component Views

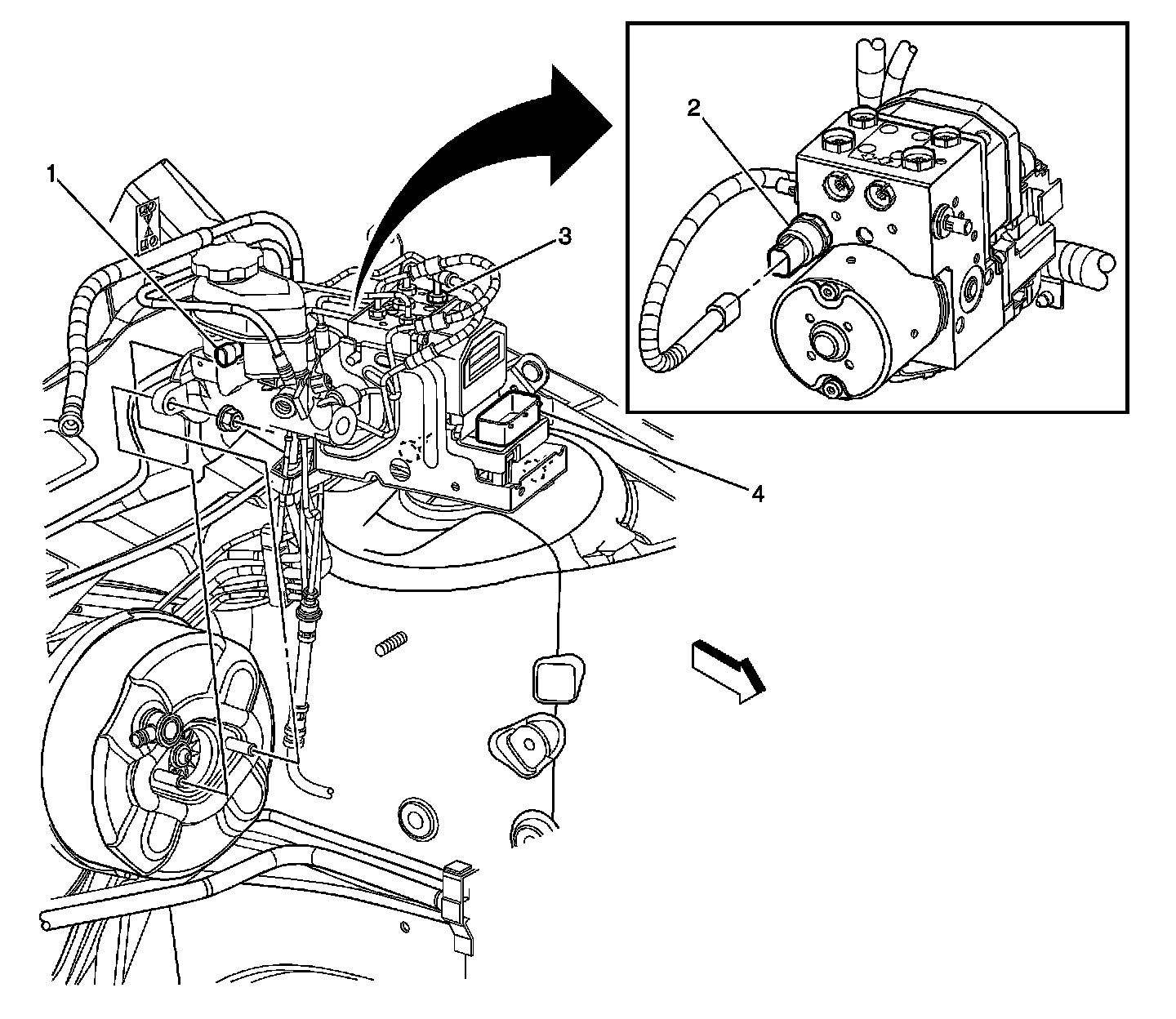

Rear of the Engine Compartment:





1 - Brake Fluid Level Switch
2 - Brake Fluid Pressure Sensor (JL4)
3 - Brake Pressure Modulator Valve (BPMV)
4 - Electronic Brake Control Module (EBCM)
