Mic Level
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

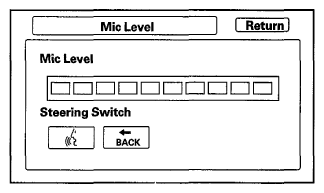

This diagnostic allows you to independently test the microphone and the navigation TALK and navigation BACK buttons. They are used to activate the voice control system. The microphone is located near the map light in the roof console. The microphone can now isolate the driver's voice even when there is noise or other conversations in the vehicle. To properly check the microphones, make sure you are sitting in the driver's seat.
- Press the navigation TALK button on the steering wheel, wait until you hear a beep, and in a normal voice say "testing". The TALK indicator on the screen should momentarily turn green, and the text Now Recording... should appear in yellow. If the talk indicator shown on the screen does not briefly turn green, check the wiring from the steering wheel navigation TALK button to the audio-navigation unit. If there is no Mic Level movement when you speak, then you should check the wires running from the microphone in the roof console to the navigation unit. If the wires are OK, the microphone must be faulty; replace the microphone (see HFL-NAVIGATION MICROPHONE REMOVAL/INSTALLATION ).
- Press the navigation BACK button on the steering wheel. This should cause the Cancel indicator on the screen to momentarily turn green. If it does not briefly turn green, check the wiring from the steering wheel navigation BACK button to the audio-navigation unit.
