System Links
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
- Select Self-Diagnosis Mode from the navigation screen main menu. The message at the bottom of the screen flashes indicating the diagnostic is running. Make sure you enter the anti-theft code.

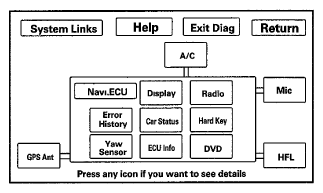

- Select the icon you want to diagnose. Push in the selector to see the details of that diagnostic function.
The System Links function runs automatically and displays a flashing message at the bottom of the screen reminding you to have the engine running for the test. The diagnostic tests the following:
- Most of the wires connecting the external navigation components shown in the block diagram.
- The results from the various components shown in the block diagram.
- The microphone is tested by listening to the bong sound produced by the audio-navigation unit from the speakers when the diagnostic is started. This requires that the audio system be operating normally.
When the diagnostic finishes, the icons turn different colors based on their test status. The color definitions are shown below and can also be seen by selecting Help on the System Links screen.
The indication on the screen may not change until you exit and reenter the Self-Diagnosis mode. In some cases, you may have to restart the engine for the indication to change. After you repair the affected component or harness, repeat this diagnostic.
Each icon color is explained in the table.
ICON COLORS DESCRIPTION
| Icon Colors | Description |
|---|---|
| Green | The system ran a diagnosis and the results are OK. |
| Red | Errors that require replacement of hardware or harness. Examples are connection error or memory diagnosis errors. Troubleshoot for DTCs. |
| Yellow | Errors that don't require hardware replacement, such as an open display cover, an incorrect DVD, leaving the vehicle in ACCESSORY (1), an open ground or mic wire, or because of a missing accessory. |
| White | The diagnosis is running. The screen functions are locked out while the diagnosis runs. |
| Gray | The system cannot automatically check this function. You have to select the diagnosis item and manually do additional testing, like checking the navigation buttons in the Hard Key test. When you complete the Hard Key test and return to the System Links menu, the gray icon turns green. |
NOTE:
By selecting the HELP icon, you can see a description for each color.
