Supercharger Boost Control Solenoid Connector End View

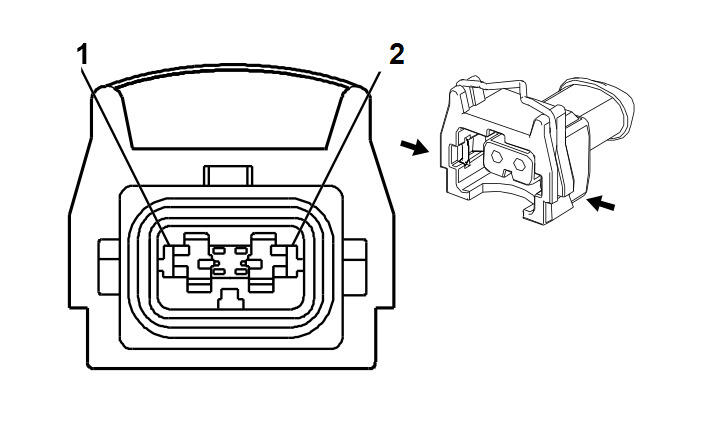

Fig 1: Supercharger Boost Control Solenoid Connector End View
GM1826250Courtesy of GENERAL MOTORS CORP.
Supercharger Boost Control Solenoid Connector Part Information

Connector Part Information
  • OEM: 1 928 402 571
  • Service: See Catalog
  • Description: 2-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Supercharger Boost Control Solenoid Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 YE 258 Wastegate Solenoid Control
2 PK/BK 5293 Powertrain Main Relay Fused Supply (4)
