Steering Wheel Control Switch - Left

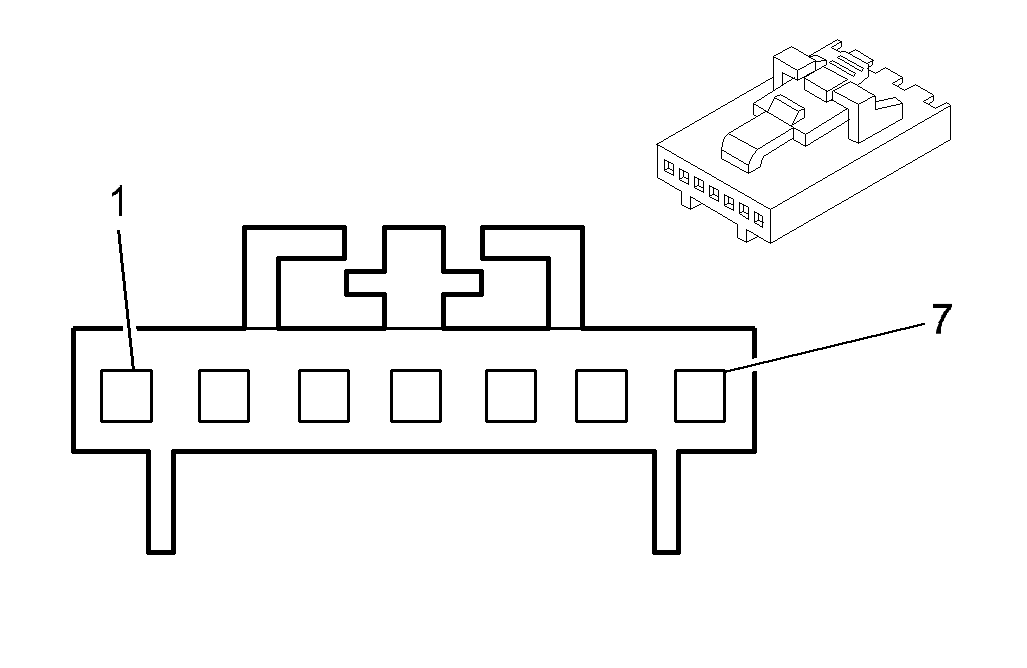

Fig 1: Steering Wheel Control Switch (Left) Connector End View
GM1333392Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch (Left) Connector Part Information

Connector Part Information
  • OEM: 50-57-9407
  • Service: 88988695
  • Description: 7-Way F SL Series, Unsealed (BK)
Terminal Part Information
  • Pins: 3-7
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Steering Wheel Control Switch (Left) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 BK 1150 Ground
4 PK 1539 Ignition 1 Voltage
5 GY 8 Instrument Panel Lamp Supply Voltage (K34/UK3)
6 GY 1884 Cruise Control Switch Signal
7 D-GN/WH 1358 DIC Switch Signal
