Steering Angle Sensor (JL4)
Steering Angle Sensor Connector Part Information (JL4)
Connector Part Information
|
Terminal Part Information
|

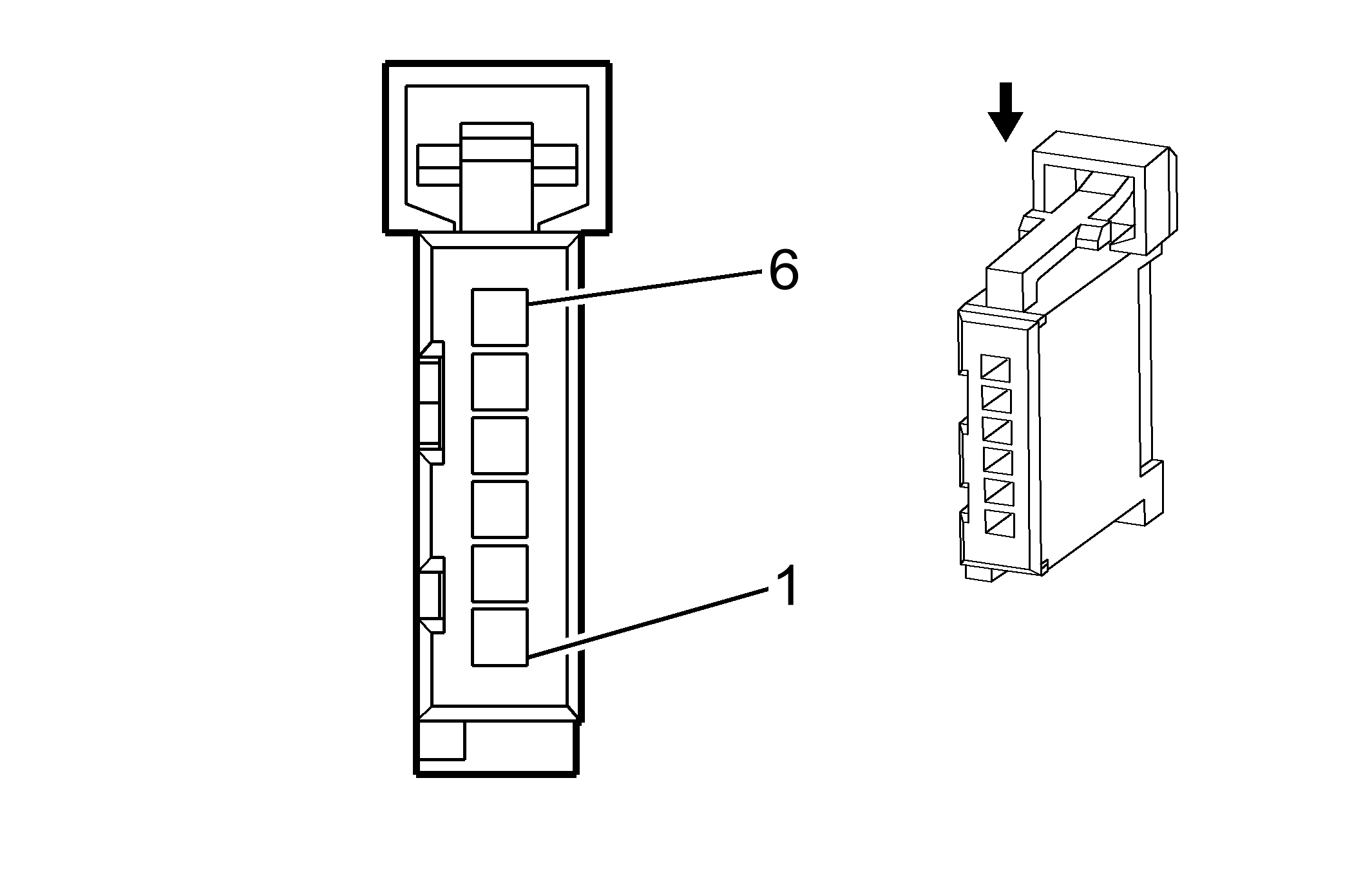

Steering Angle Sensor Connector Terminal Identification (JL4)
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | D-GN | 2087 | 5-Volt Reference |
| 2 | PK/BK | 6434 | Can Bus High Serial Data |
| 3 | PK/BK | 6434 | Can Bus High Serial Data |
| 4 | GY/BK | 6435 | Can Bus Low Serial Data |
| 5 | GY/BK | 6435 | Can Bus Low Serial Data |
| 6 | L-BU | 2088 | Low Reference |
