Inflatable Restraint I/P Module Connector End View C1

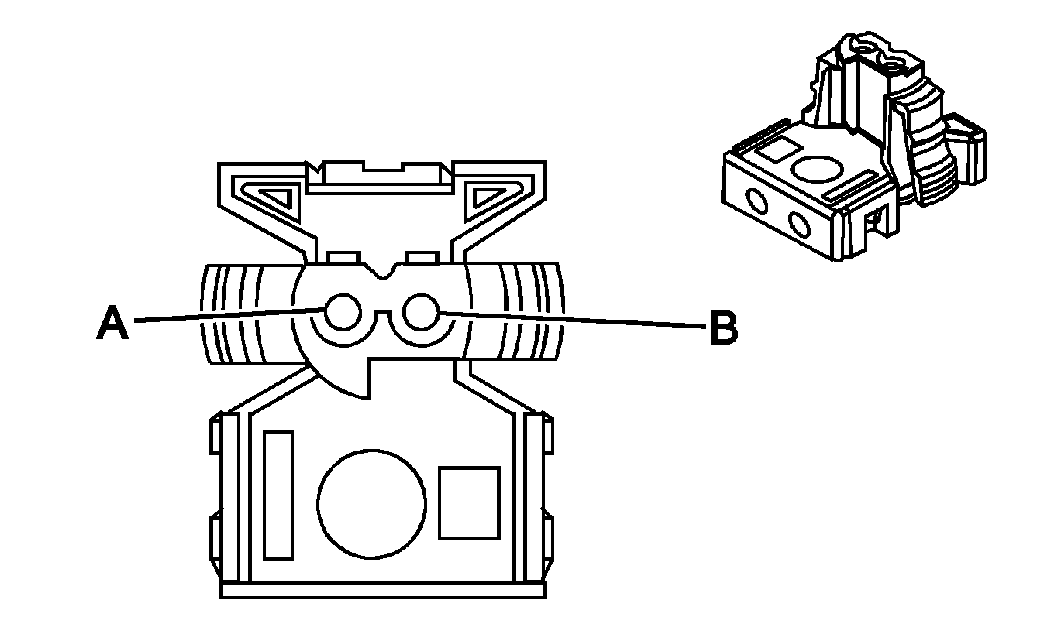

Fig 1: I/P Module C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

I/P Module C1 Connector Part Information

Connector Part Information  OEM: 15359118 Service: Service By Complete Passenger Air Bag Jumper Harness Description: 2-Way F Micro-Pack 100 Series (GY) With (YE) Case

Terminal Part Information  Terminal/Tray: Serviced w/Pigtail Core/Insulation Crimp: N/A Release Tool/Test Probe: N/A

I/P Module C1 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	PK/BK	3024	I/P Module - Stage 1 - Low Control
B	L-BU/RD	3025	I/P Module - Stage 1 - High Control
