Electronic Brake Control Module (EBCM) (LNF)

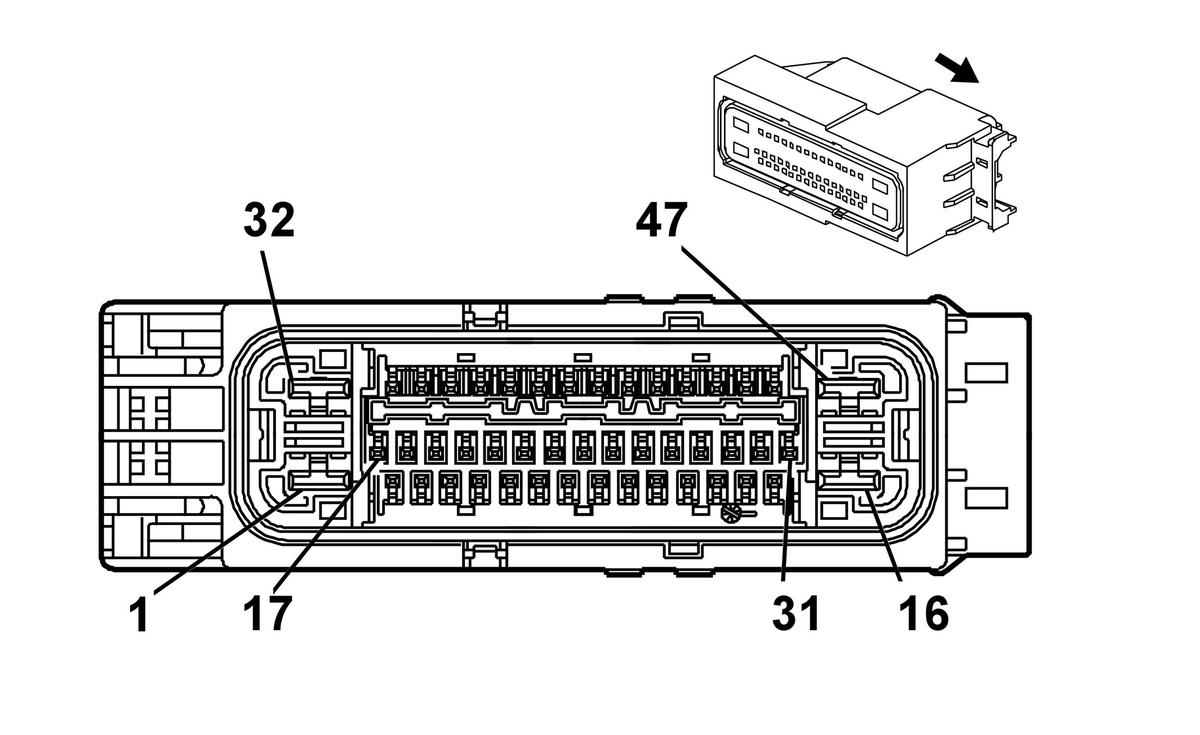

Fig 1: EBCM Connector End View (LNF)
GM1830966Courtesy of GENERAL MOTORS CORP.
EBCM Connector Part Information (LNF)

Connector Part Information
  • OEM: 1355628-2
  • Service: See Catalog
  • Description: 47-Way F MK25 Series (BK)
Terminal Part Information
  • Pins:1, 16
  • Terminal/Tray: 7114-4142-02/10
  • Core/Insulation Crimp: A/3
  • Release Tool/Test Probe: 12094430/J35616-43 (RD)
  • Pins:32
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins:2-15, 17-31, 33-47
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
EBCM Connector Terminal Identification (LNF)

Pin Wire Color Circuit No. Function
1 RD/BK 542 Low Reference
2 BK 0000 Not Used
3 BK 0000 Not Used
4 BK 0000 Not Used
5 BK 0000 Not Used
6 BK 0000 Not Used
7 BK 0000 Not Used
8 PK 1439 Ignition 1 Voltage
9 BK 0000 Not Used
10 BK 0000 Not Used
11 TN/BK 2500 High Speed Serial Data Bus (+)
12 TN/BK 2500 High Speed Serial Data Bus (+)
13 TN 2501 High Speed Serial Data Bus (-)
14 TN 2501 High Speed Serial Data Bus (-)
15 BK 0000 Not Used
16 BK 350 Ground
17 BK 0000 Not Used
18 PK/BK 6434 Can Bus High Serial Data
19 GY/BK 6435 Can Bus Low Serial Data
20 BK 0000 Not Used
21 BK 0000 Not Used
22 D-GN 2087 5-Volt Reference
23 BK 0000 Not Used
24 BK 0000 Not Used
25 BK 0000 Not Used
26 BK 0000 Not Used
27 BK 0000 Not Used
28 BK 0000 Not Used
29 L-BU 2088 Low Reference
30 BK 0000 Not Used
31 BK 0000 Not Used
32 RD/WH 540 Battery Positive Voltage
33 TN 833 Right Front Wheel Speed Sensor Low Reference
34 D-GN 872 Right Front Wheel Speed Sensor Signal
35 BK 0000 Not Used
36 TN 884 Left Rear Wheel Speed Sensor Signal
37 OR 885 Left Rear Wheel Speed Sensor Low Reference
38 BK 0000 Not Used
39 BK 0000 Not Used
40 BK 0000 Not Used
41 BK 0000 Not Used
42 WH 883 Right Rear Wheel Speed Sensor Low Reference
43 BN 882 Right Rear Wheel Speed Sensor Signal
44 BK 0000 Not Used
45 L-BU 830 Left Front Wheel Speed Sensor Signal
46 YE 873 Left Front Wheel Speed Sensor Low Reference
47 - - Plug
