Underhood Fuse Block

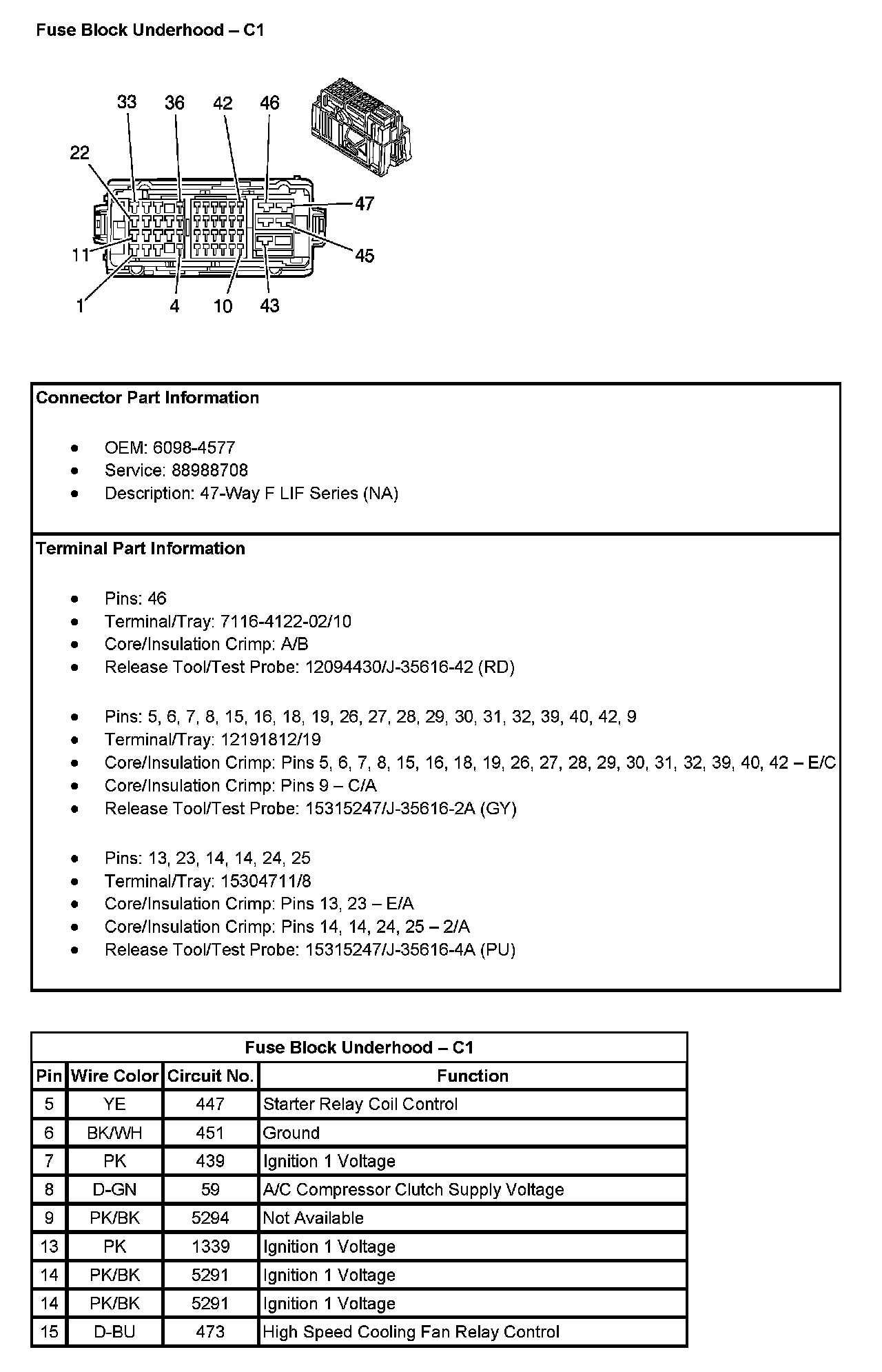

Fuse Block Underhood - C1 (Pin 1 To 15):

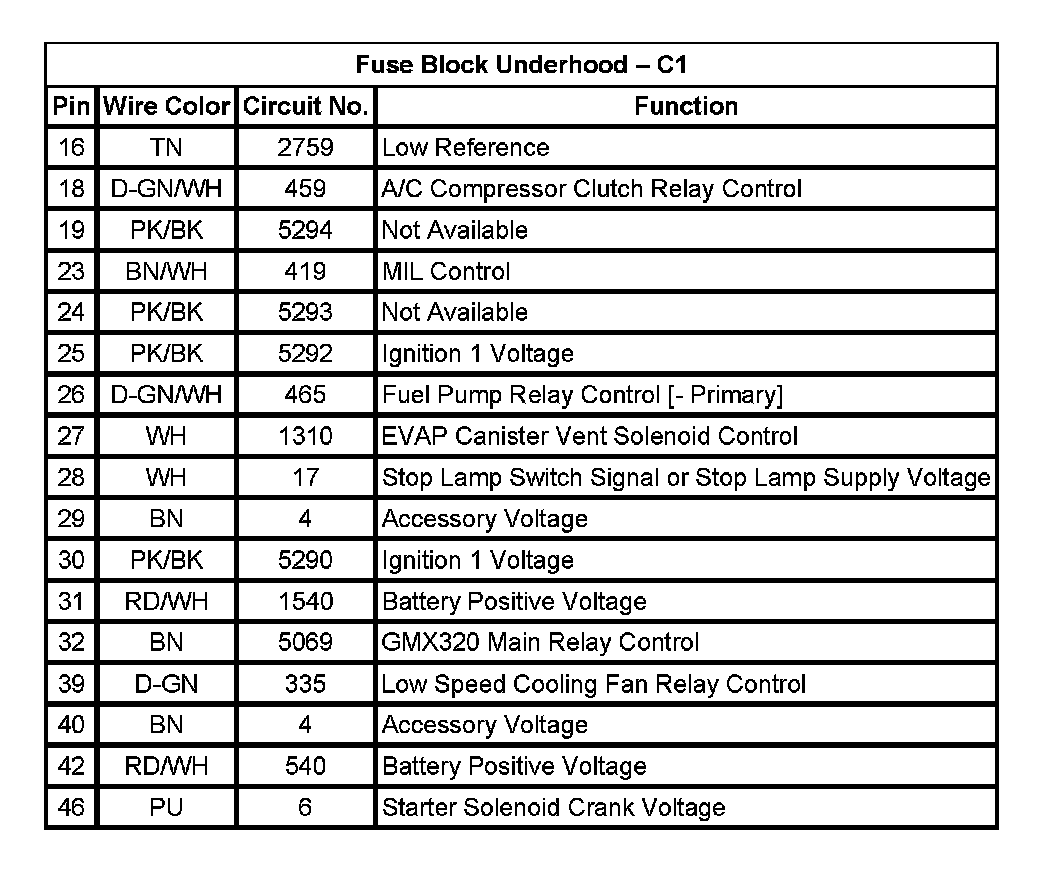

Fuse Block Underhood - C1 (Pin 16 To 46):

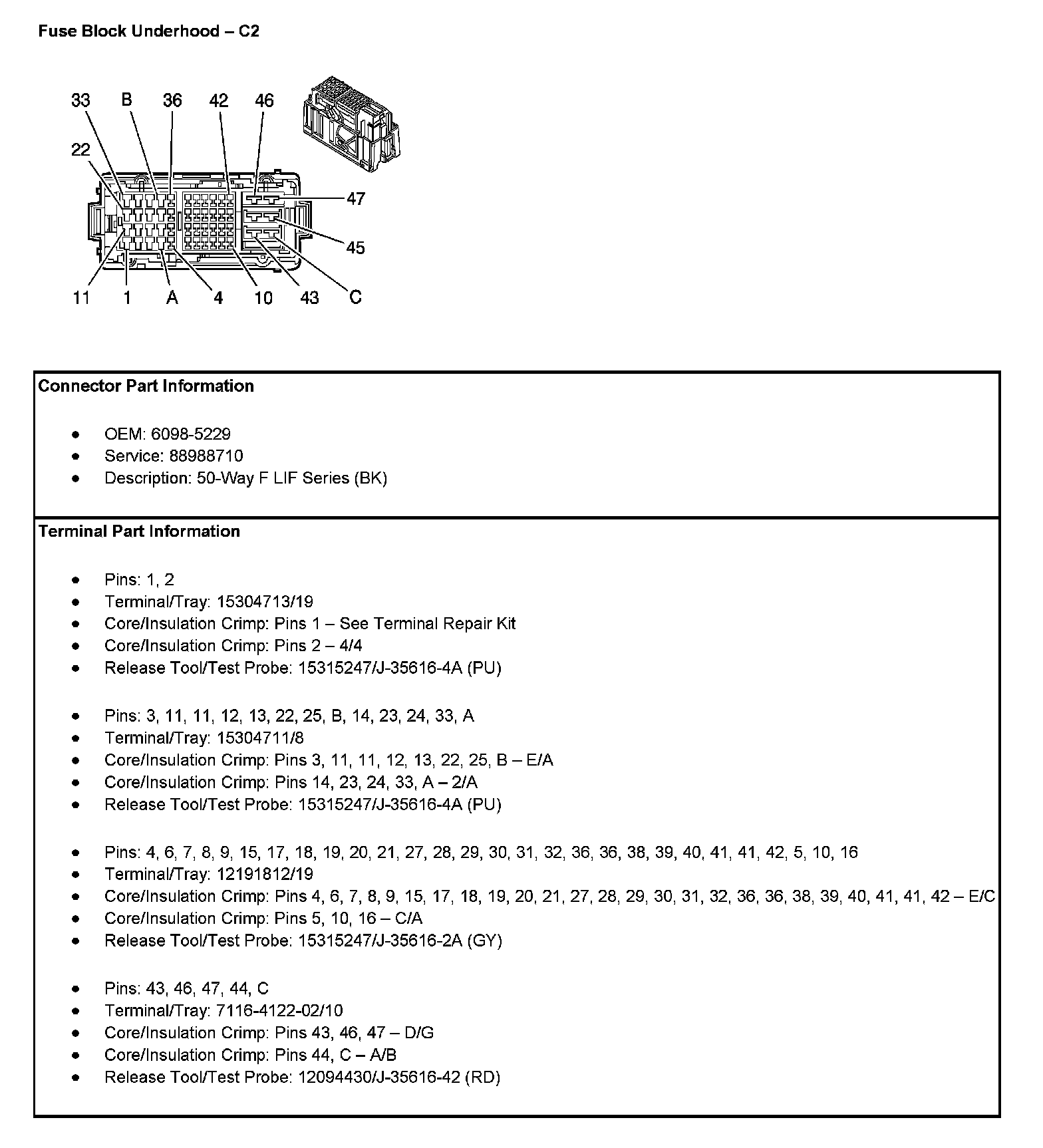

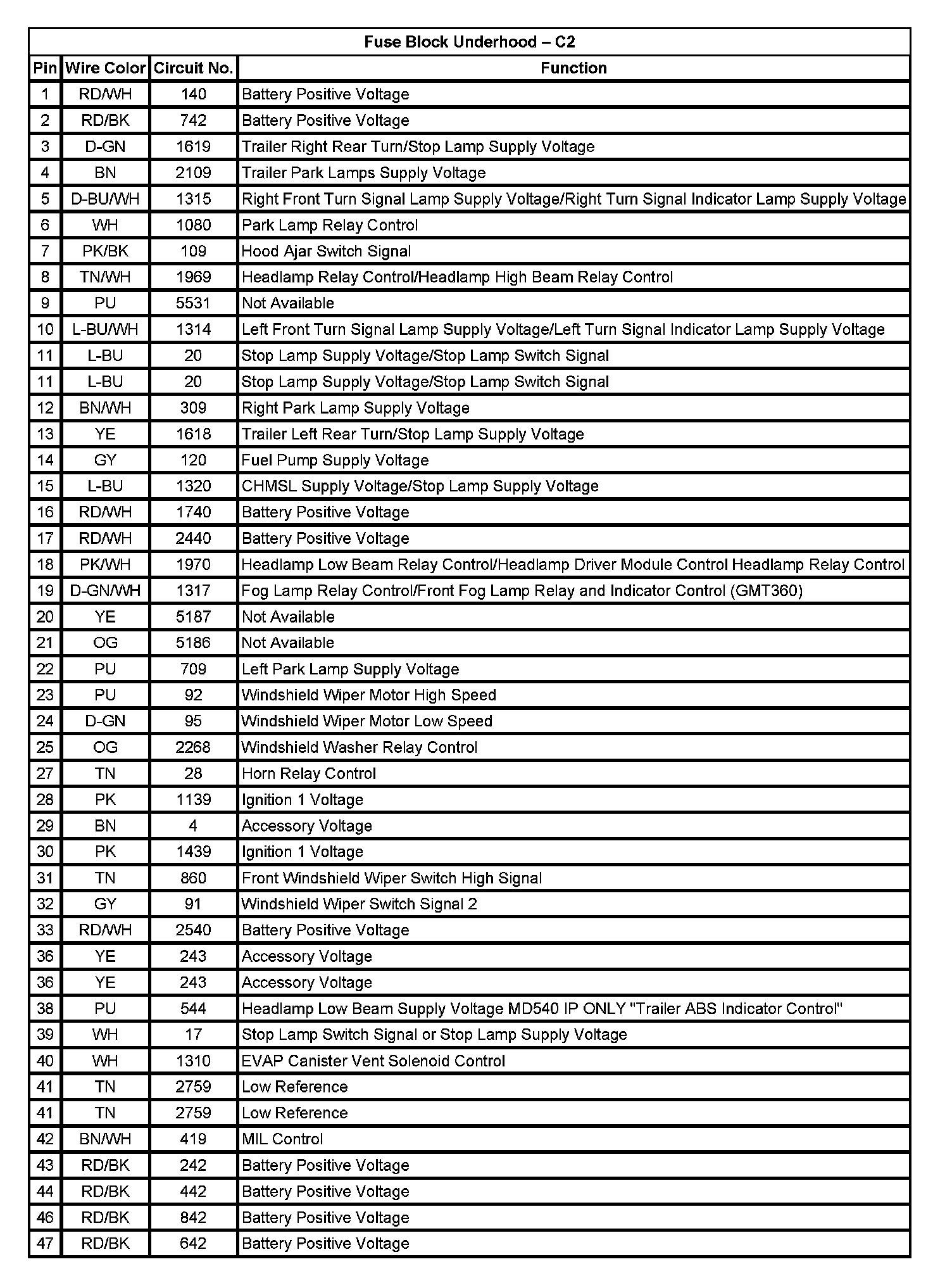

Fuse Block Underhood - C2:




Fuse Block Underhood - C2:




Fuse Block Underhood - C2:

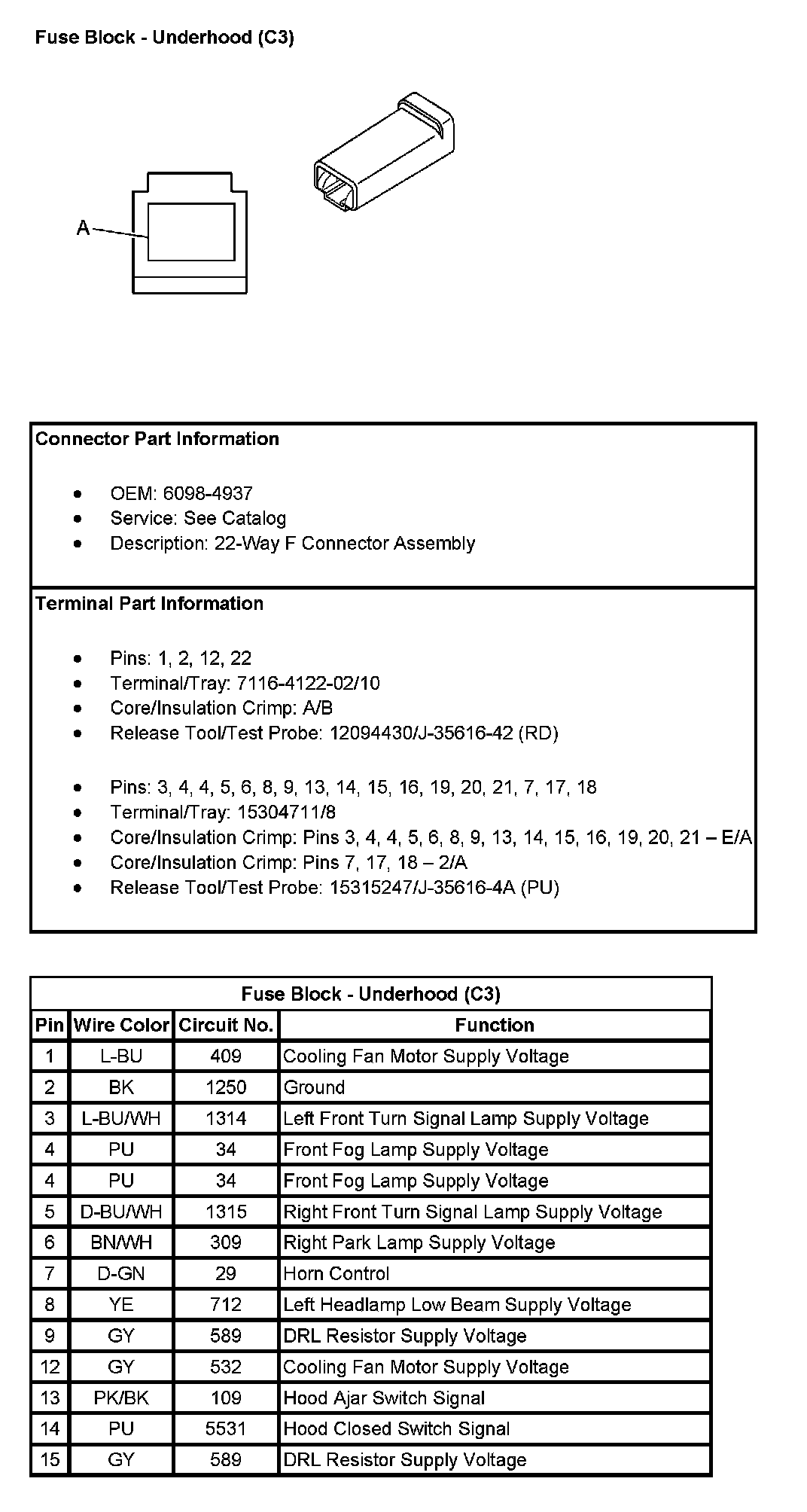

Fuse Block Underhood - C3 (Pin 1 To 14):




Fuse Block Underhood - C3 (Pin 15 To 22):

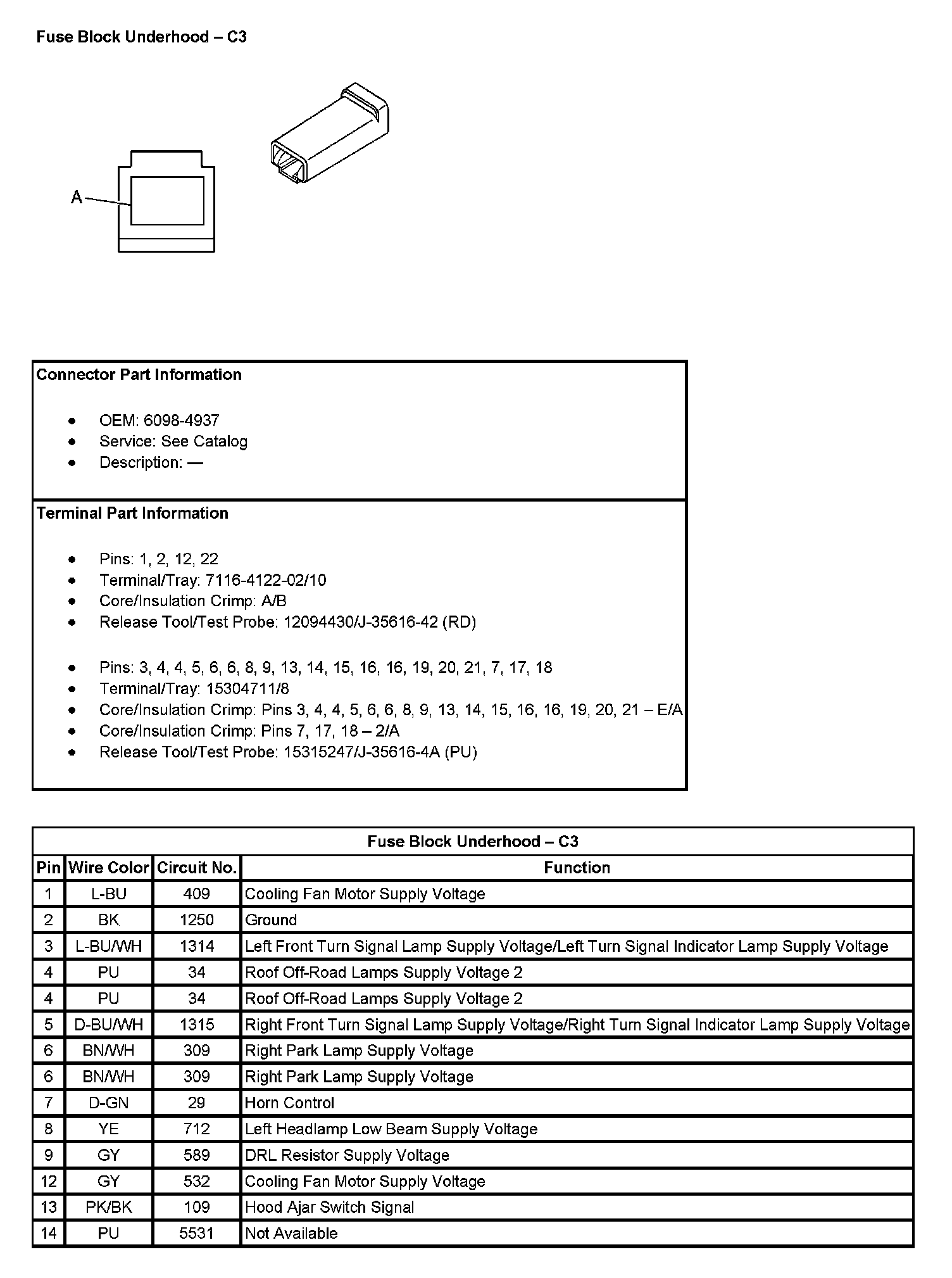

Fuse Block Underhood - C3 (Pin 1 To 14):




Fuse Block Underhood - C3 (Pin 15 To 22):

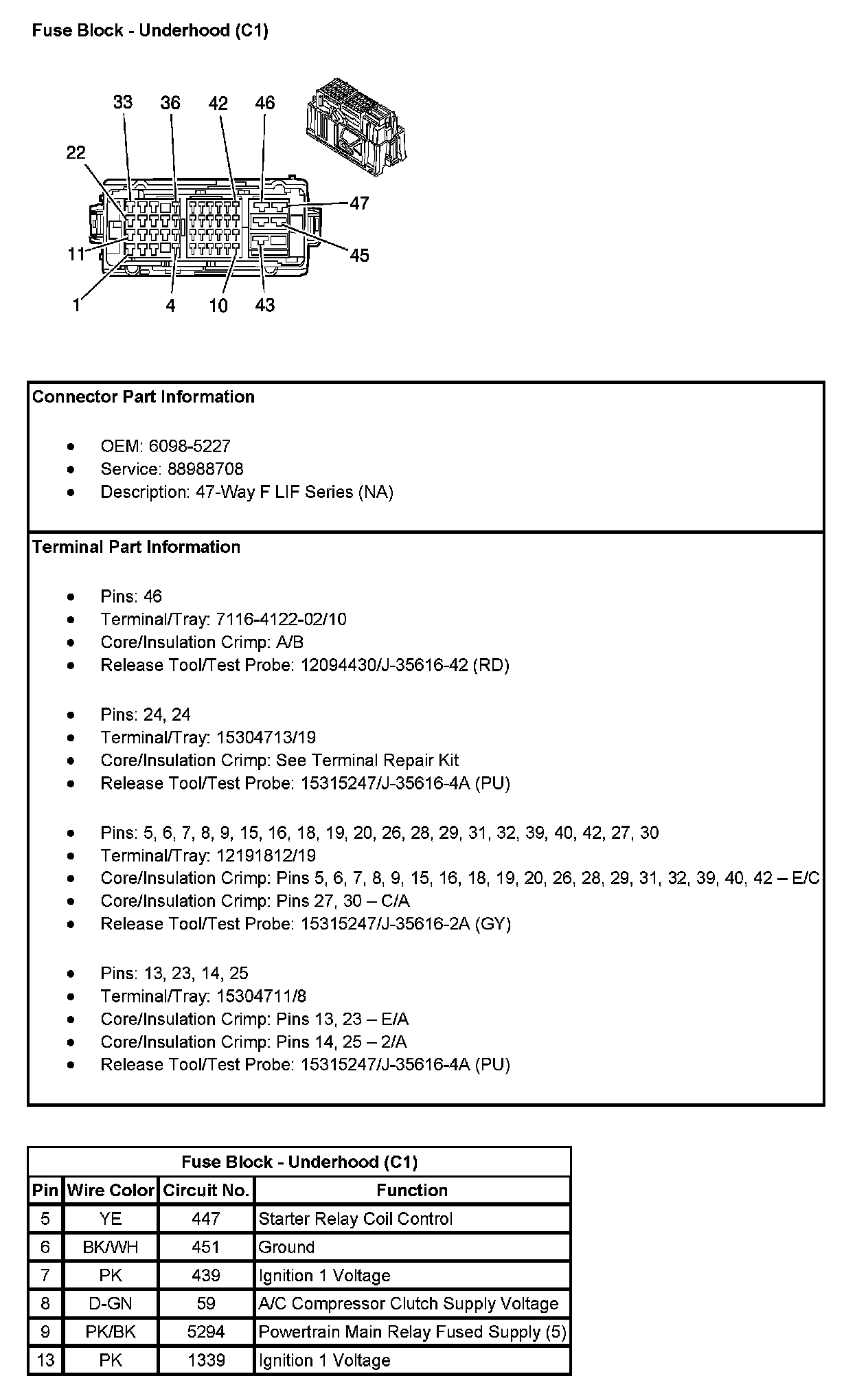

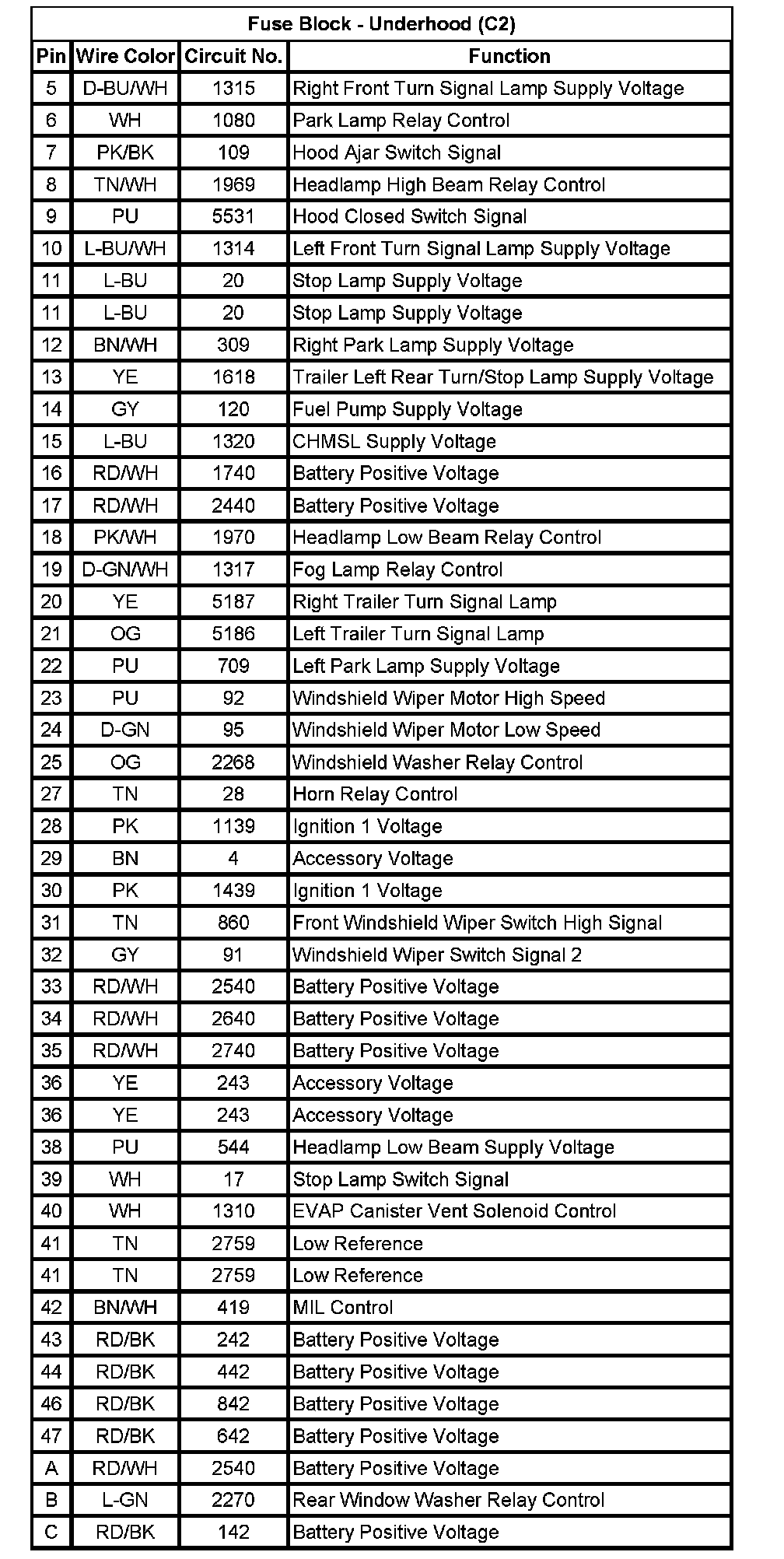

Fuse Block - Underhood (C1):

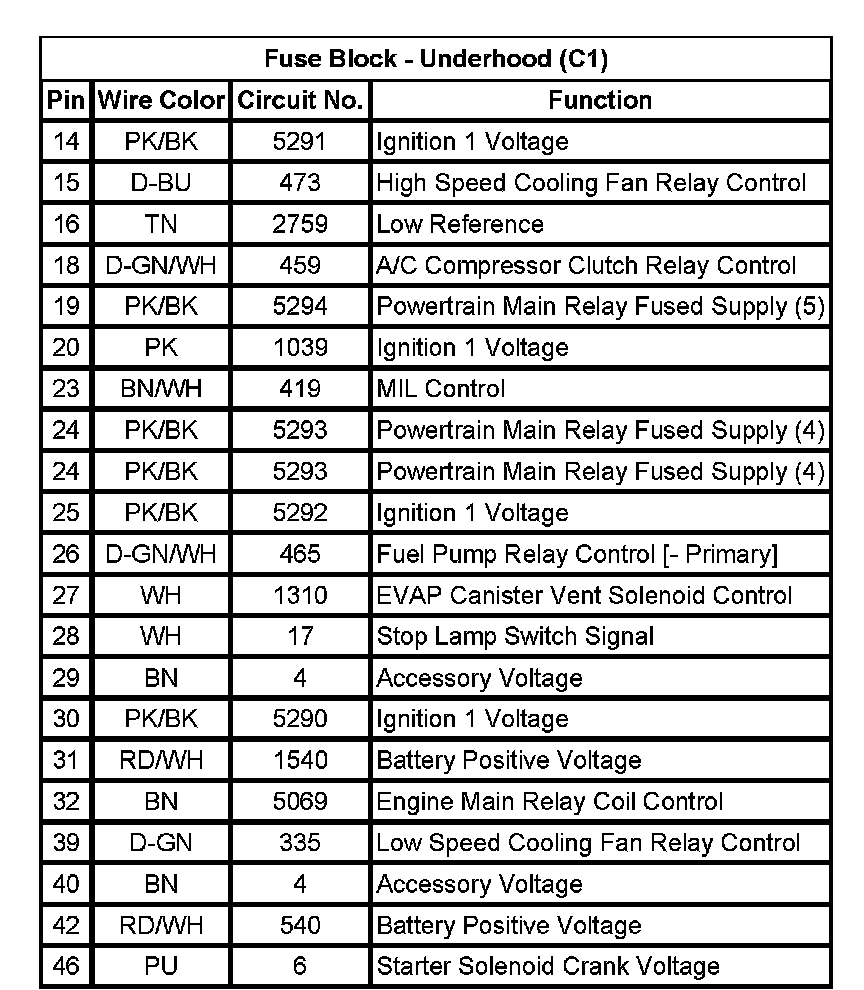

Fuse Block - Underhood (C1) (Pin 14 To 46):




Fuse Block - Underhood (C1):

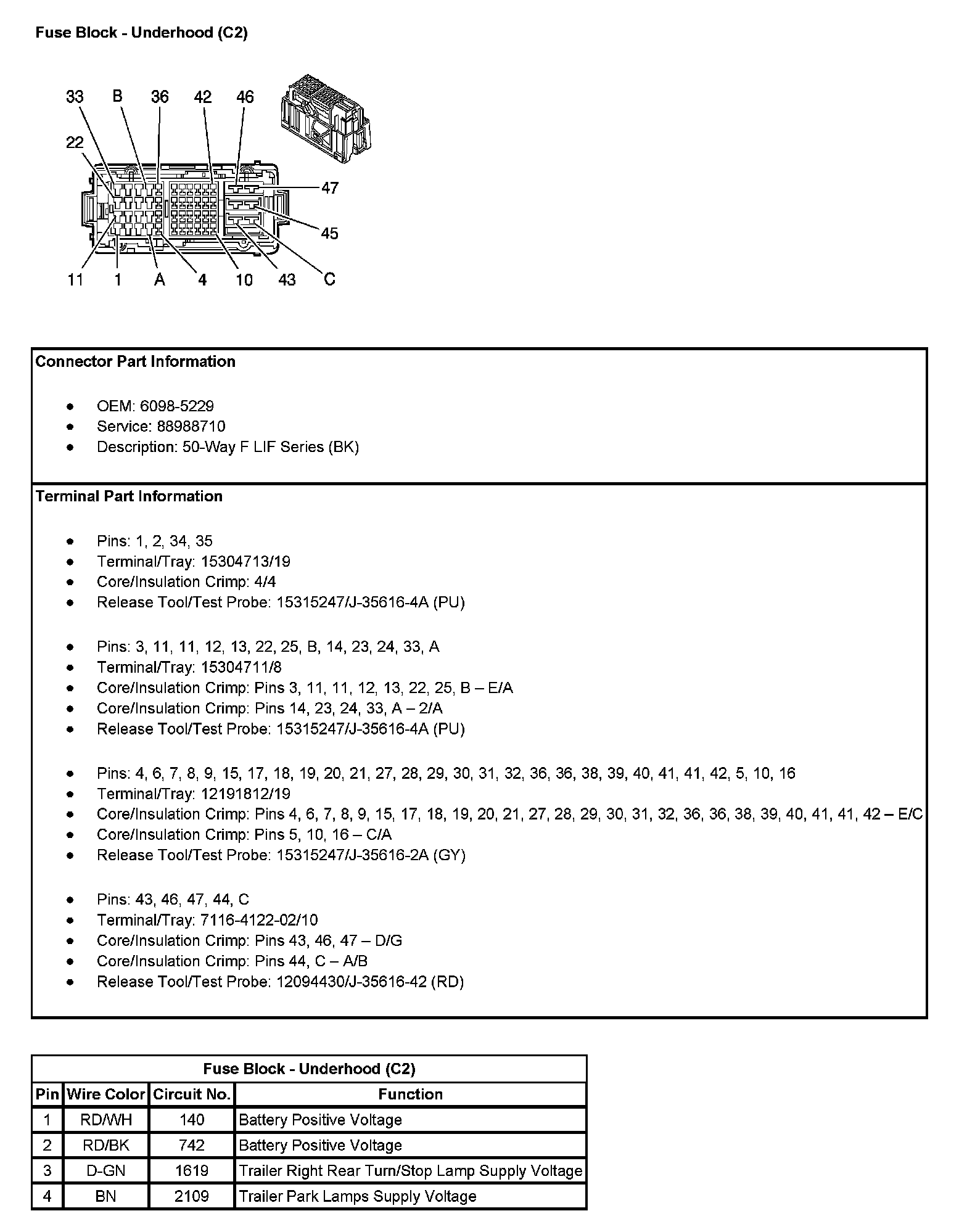

Fuse Block - Underhood (C2) (Pin 5 To C):




Fuse Block - Underhood (C3) (Pin 1 To 15):




Fuse Block - Underhood (C3) (Pin 16 To 22):
