Mirror Component Views

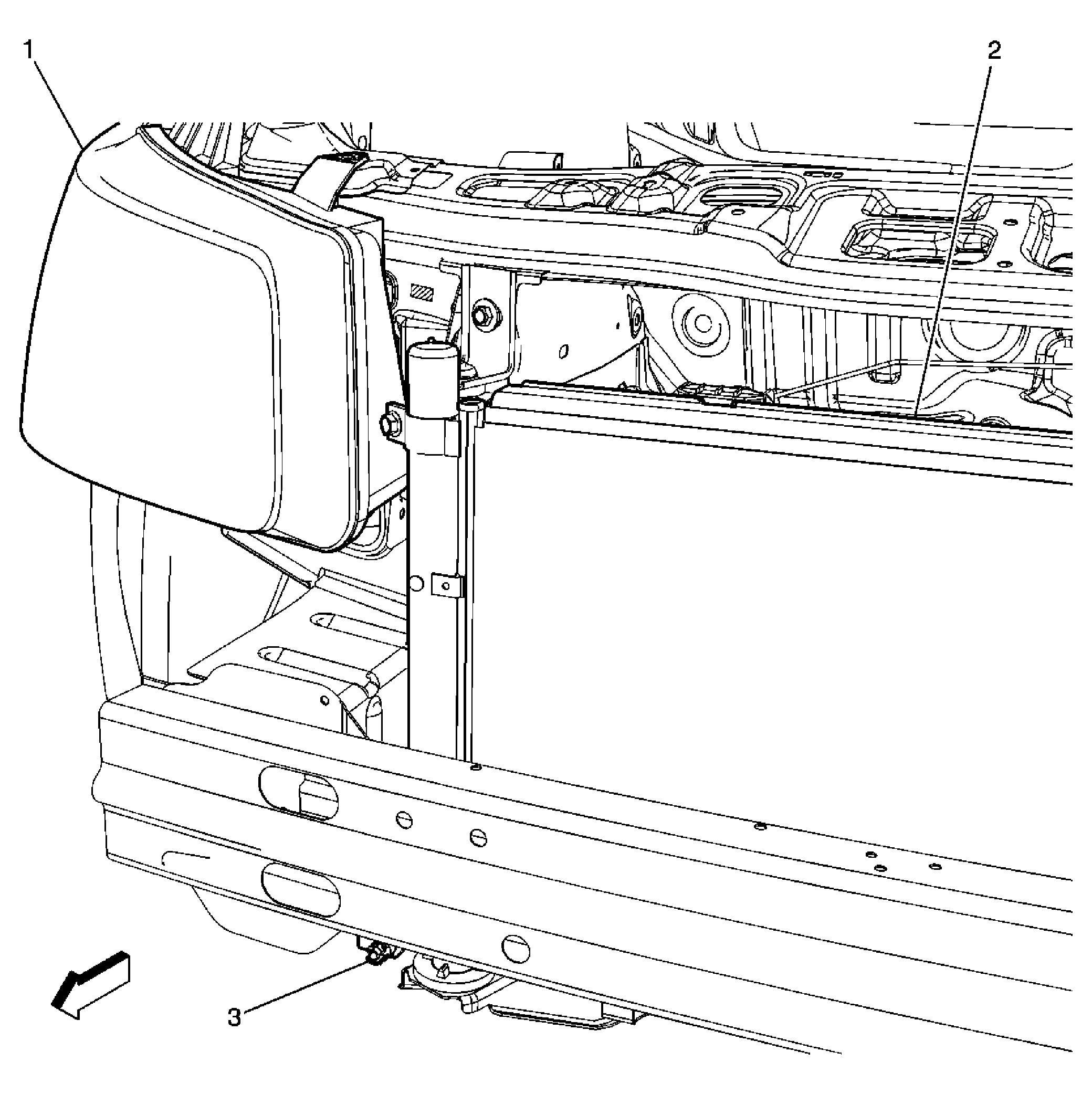

Fig 1: Below Front Impact Bar View

GM1826038

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Headlamp
2	Radiator
3	Ambient Air Temperature Sensor (DH3/DF5)

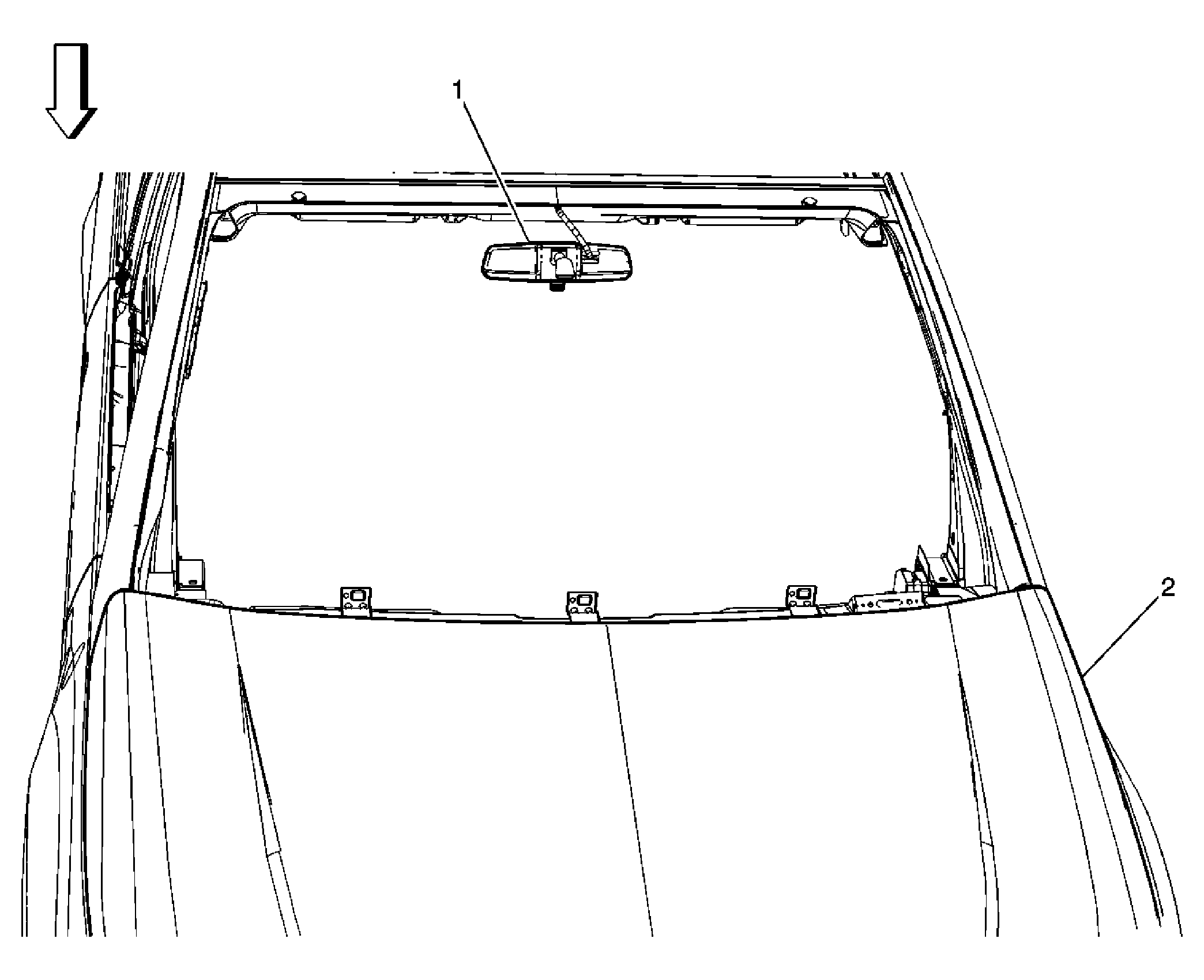

Fig 2: View Of Top Windshield

GM1825901

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Hood

Fig 3: View Of Instrument Panel

GM1825883

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Hazard Switch
5	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
6	Rear Wiper/Washer Switch
7	Radio
8	HVAC Control Module
9	Heated Seat Switches
10	Power Window Switch - Main
11	Traction Control Switch
12	Dimmer Switch
13	Outside Rear View Mirror Switch

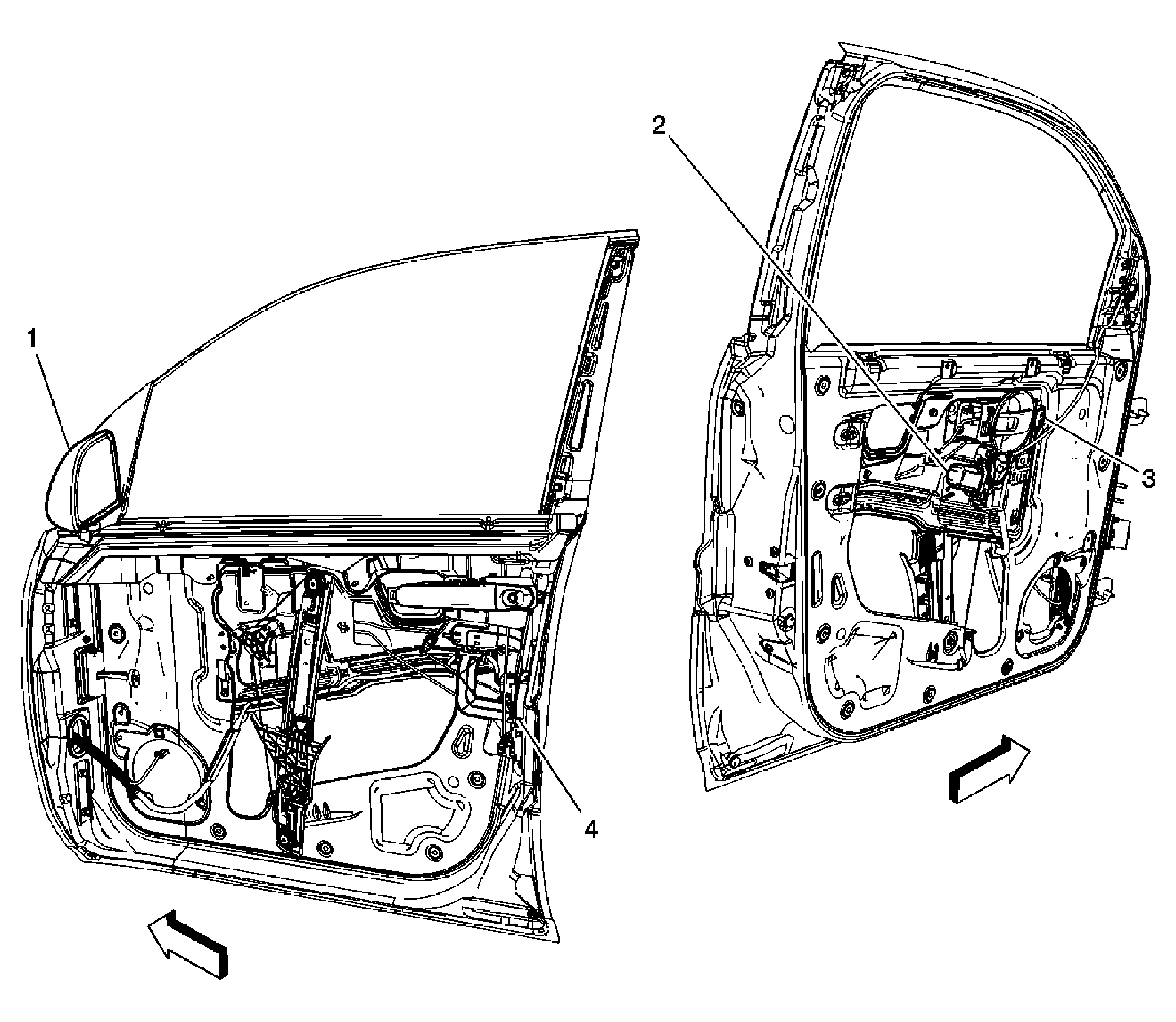

Fig 4: View Of Driver Door

GM1826013

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Window Motor - Driver
3	Door Lock Switch - Driver
4	Door Latch - Driver

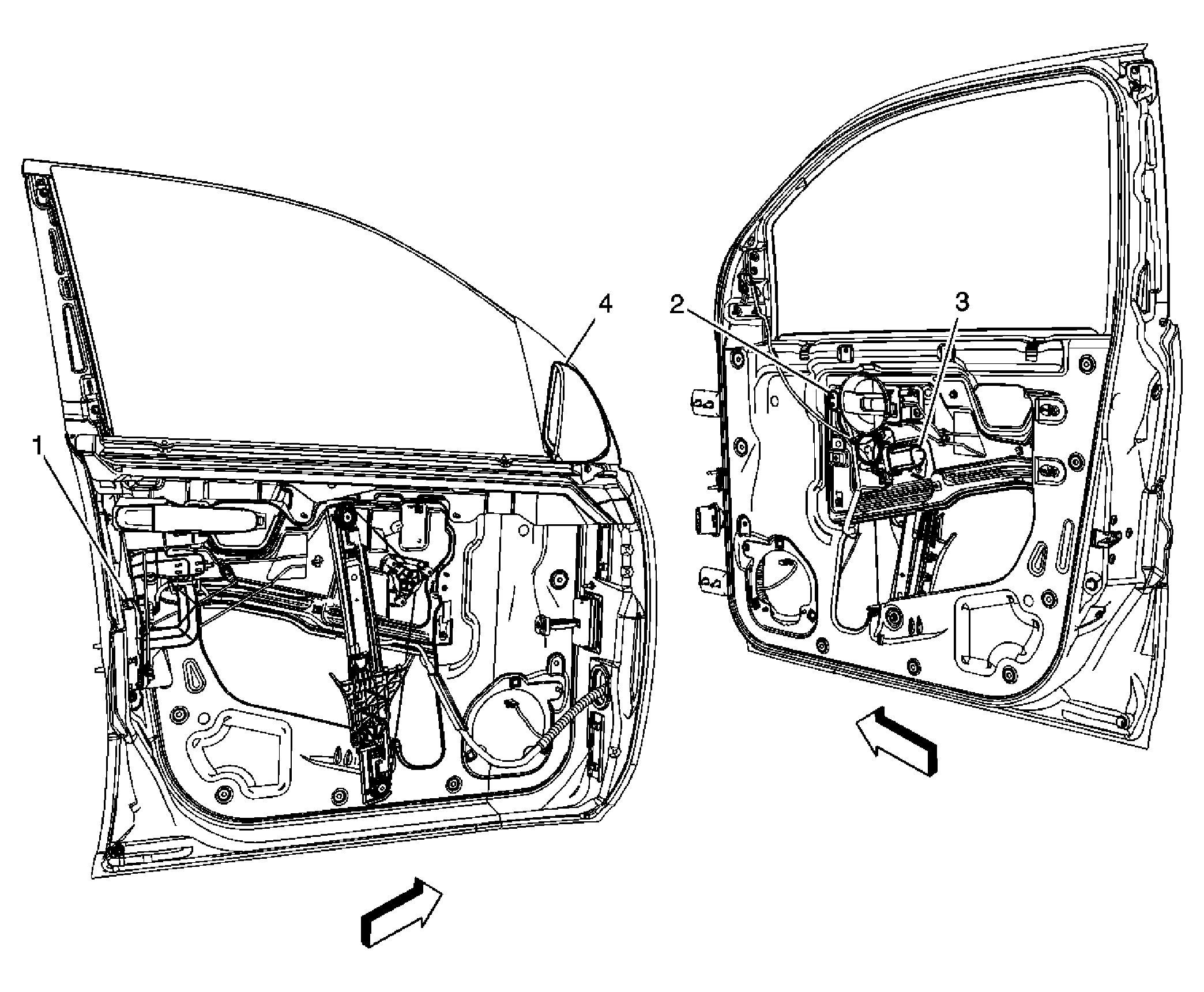

Fig 5: View Of Passenger Door

GM1826010

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Front Passenger
2	Door Lock Switch - Front Passenger
3	Window Motor - Front Passenger
4	Outside Rearview Mirror - Front Passenger
