Mirror Replacement
Mirror Replacement

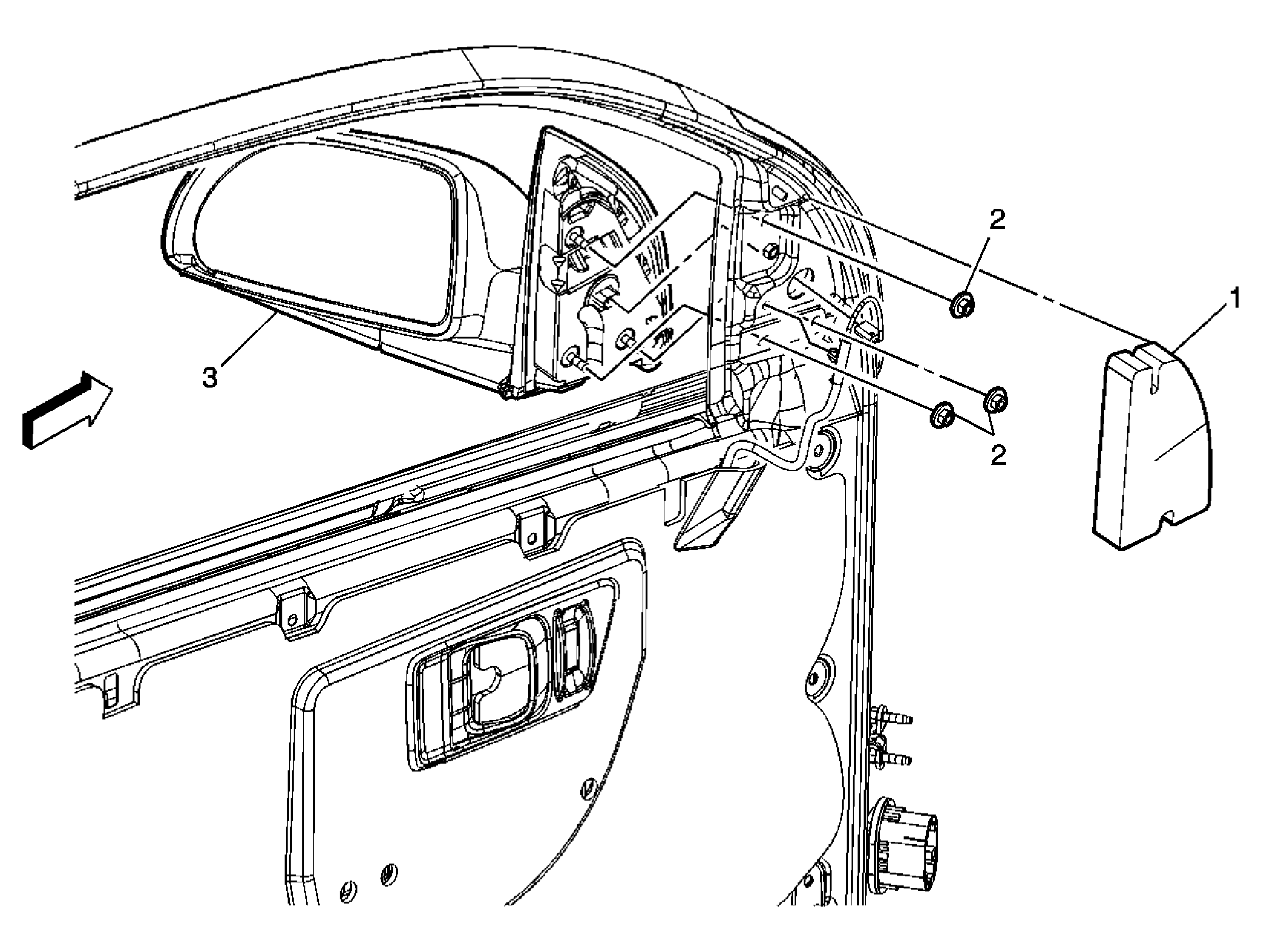

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove front door upper trim panel. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) . |
|
| 1 | Front Side Door Inner Panel Insulator |
| 2 | Front Side Door Outside Rear View Mirror Nut (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 3 | Front Side Door Outside Rear View Mirror Assembly Tip: Disconnect electrical connector. |
