Heated Seat Control Module Replacement - Front

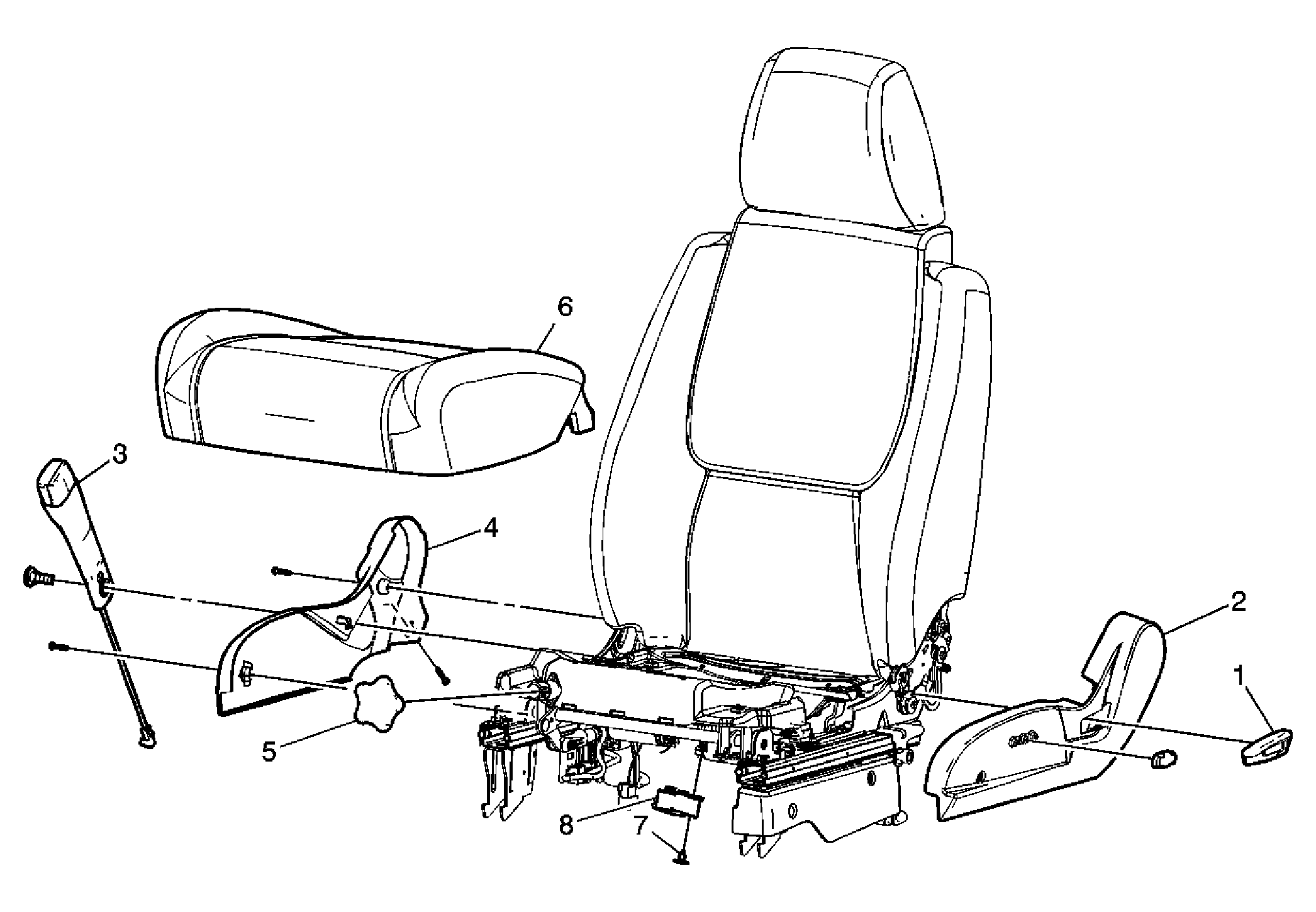

Fig 1: View Of Front Heated Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat (Fold Flat) or Seat Cushion Outer Trim Panel Replacement - Front Seat (Non-Fold Flat) .
3	Front Seat Belt Buckle Refer to Front Seat Belt Buckle Replacement .
4	Front Seat Inner Adjuster Finish Panel Refer to Seat Cushion Inner Trim Panel Replacement - Front (Non-Fold Flat) .
5	Front Seat Lumbar Support Actuator Knob Tip: Remove the lumbar knob by pulling firmly on the knob.
6	Front Seat Cushion Cover and Pad Refer to Seat Cushion Cover and Pad Replacement - Front .
7	Front Seat Heater Module Retainer
8	Front Seat Heater Module Tip: Disconnect the electrical connector.
