Installation Procedure

    Fig 1: View Of Battery Cooling Air Inlet Duct
    GM1822913Courtesy of GENERAL MOTORS CORP.
  1. Position the battery tray to the vehicle.
    2. IMPORTANT: Fully insert the duct into the hole on the battery tray past the second molded in ridge, stopping at the flange.
  2. Connect the battery cooling air inlet duct to the battery tray.
    3. Fig 2: Identifying Battery Tray Bolts
    GM1822914Courtesy of GENERAL MOTORS CORP.
  3. Set the battery tray completely in place.
    4. NOTE: Refer to Fastener Notice .
  4. Install the battery tray bolts.

    Tighten:  Tighten the bolts to 15 N.m (11 lb ft).

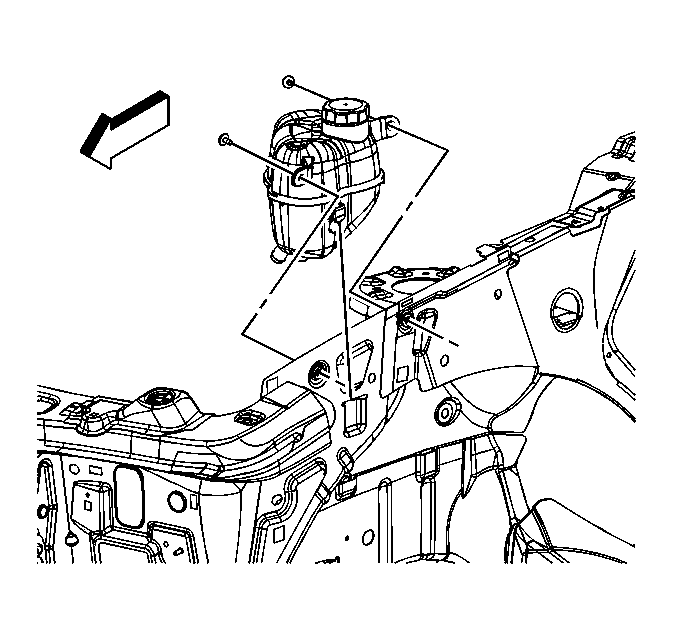

    5. Fig 3: Identifying Coolant Surge Tank
    GM1822911Courtesy of GENERAL MOTORS CORP.
  5. Position and install the coolant surge tank to the front wheelhouse panel.
  6. Install the coolant surge tank bolts.

    Tighten:  Tighten the bolts to 6 N.m (53 lb in).

    7. Fig 4: View Of Battery Box
    GM1822907Courtesy of GENERAL MOTORS CORP.
  7. Install the A/C evaporator outlet line clamp to the battery tray stud.
  8. Install the A/C evaporator line clamp nut at the battery tray.

    Tighten:  Tighten the nut to 15 N.m (11 lb ft).

  9. Install the battery. Refer to Battery Replacement .
