Engine Controls Schematics

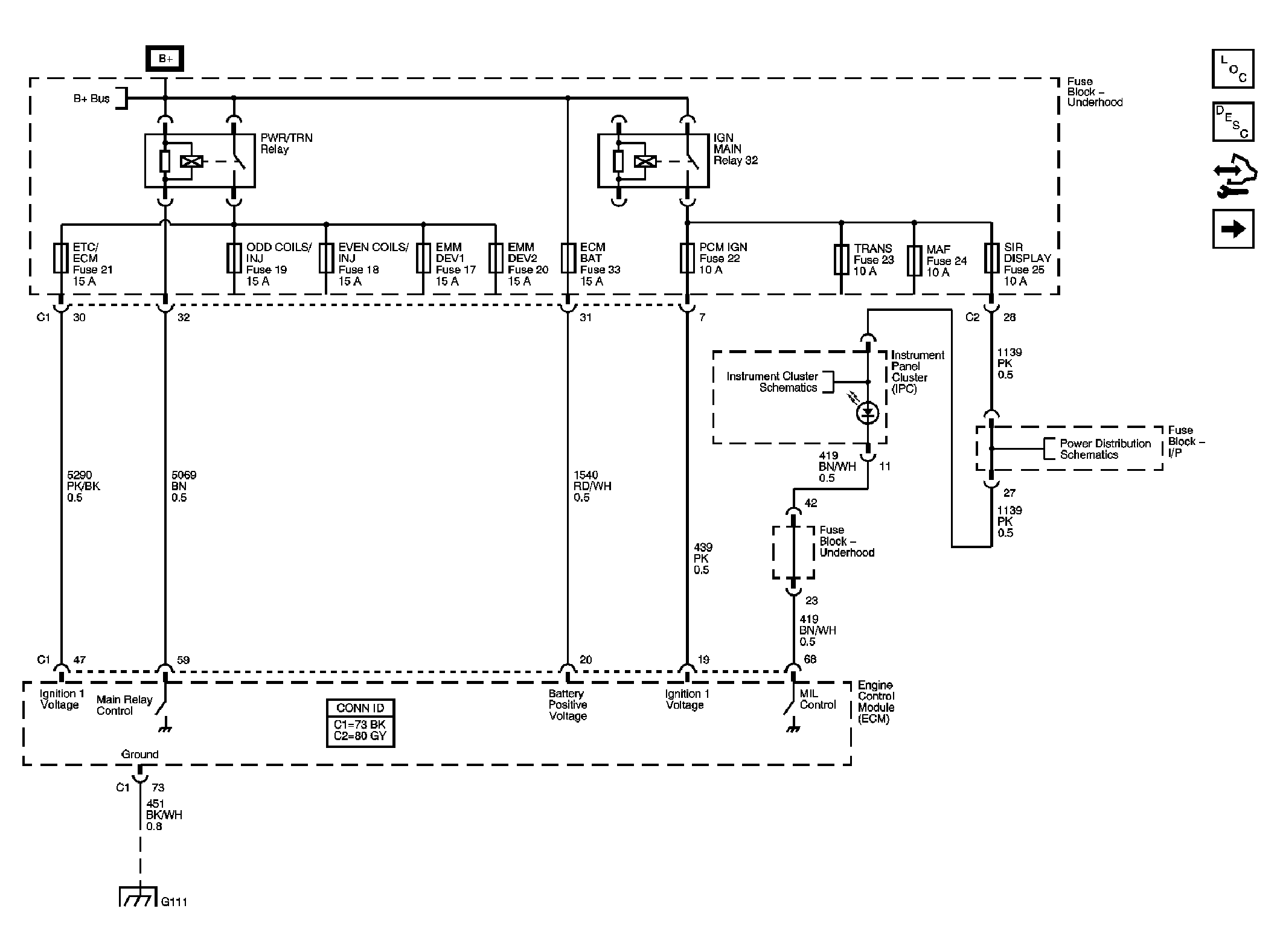

Fig 1: Module Power, Ground & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5-Volt Reference Schematic

Courtesy of GENERAL MOTORS CORP.

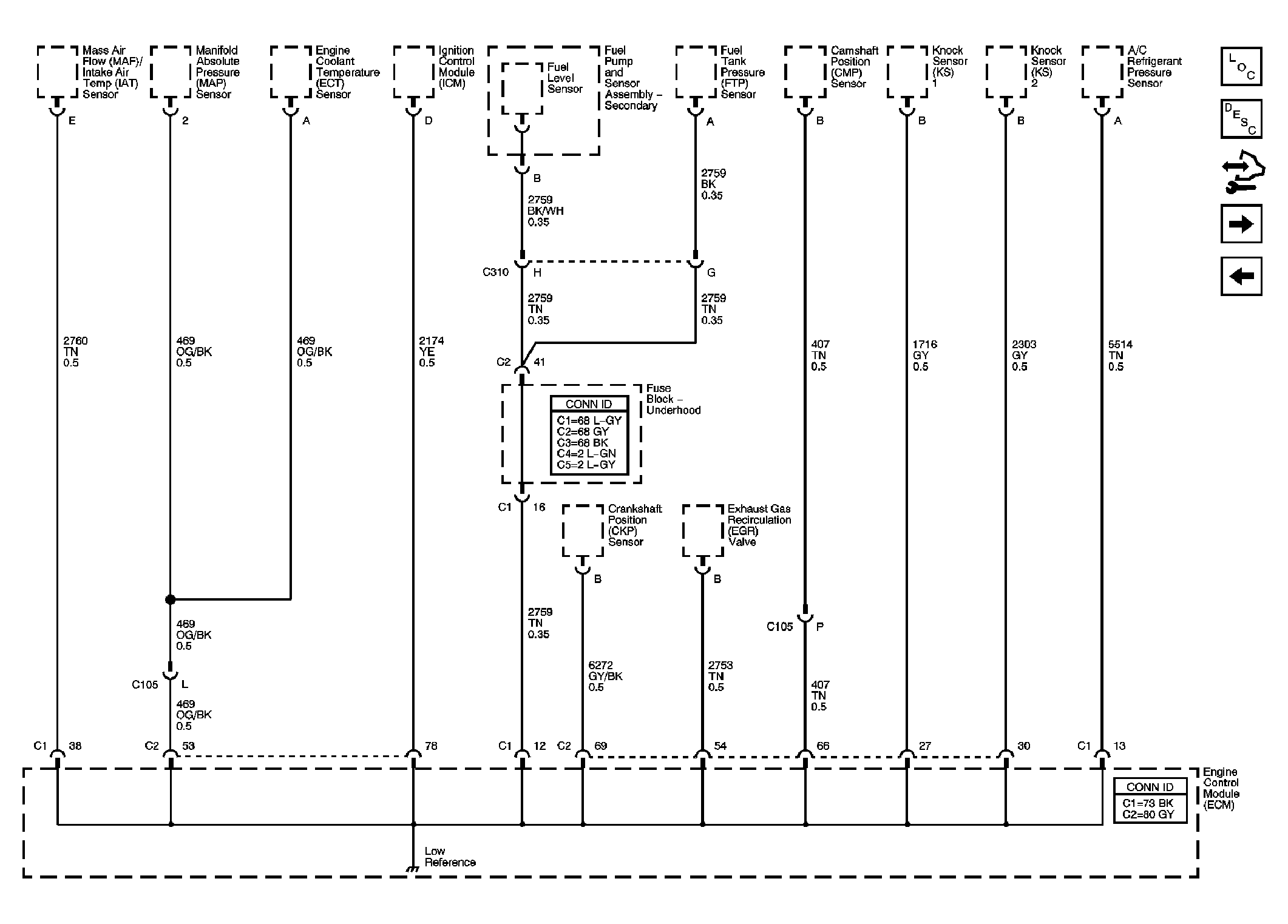

Fig 3: Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

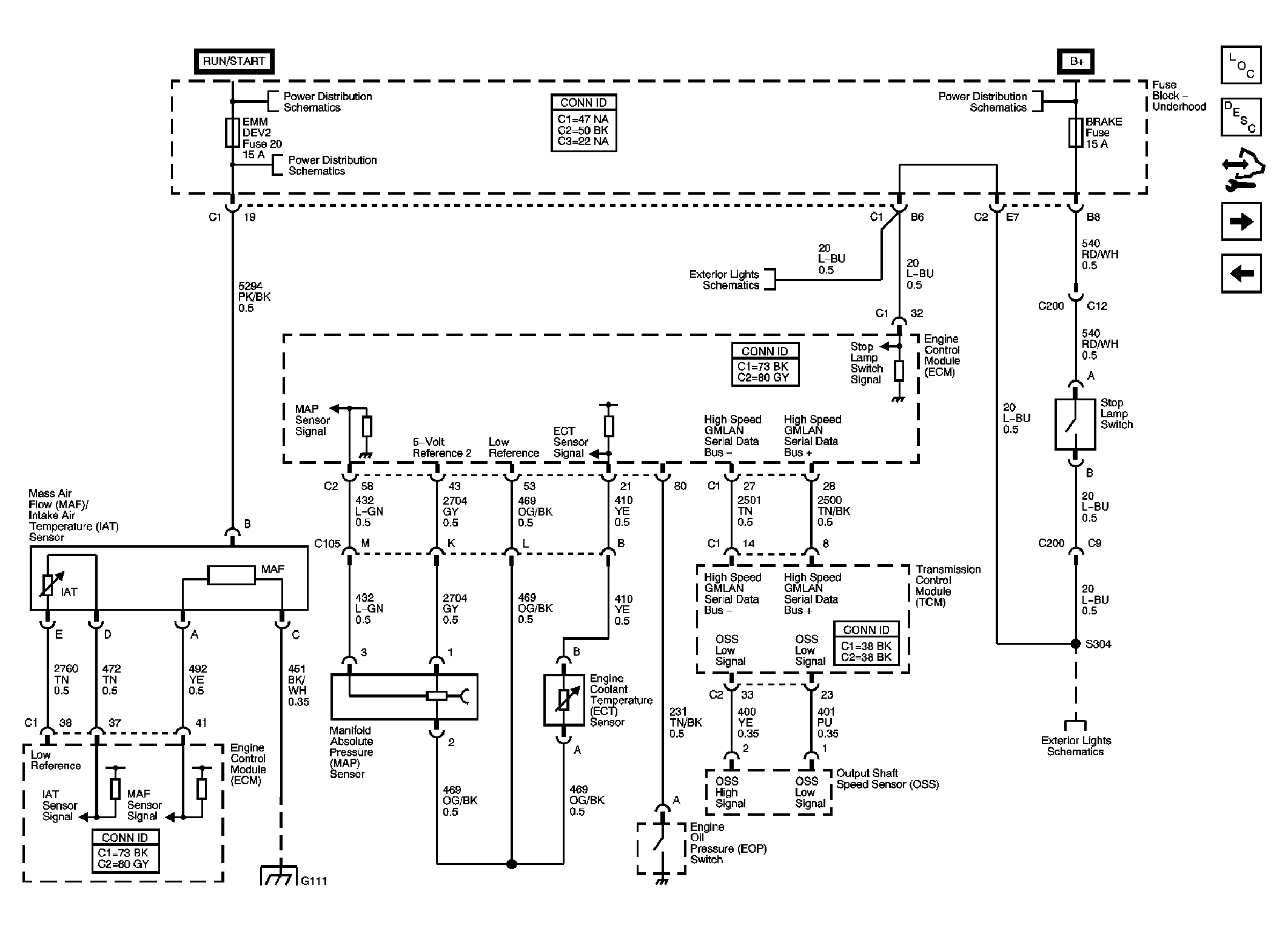

Fig 4: MAF, MAP, ECT, OSS, Oil Pressure, Stop Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

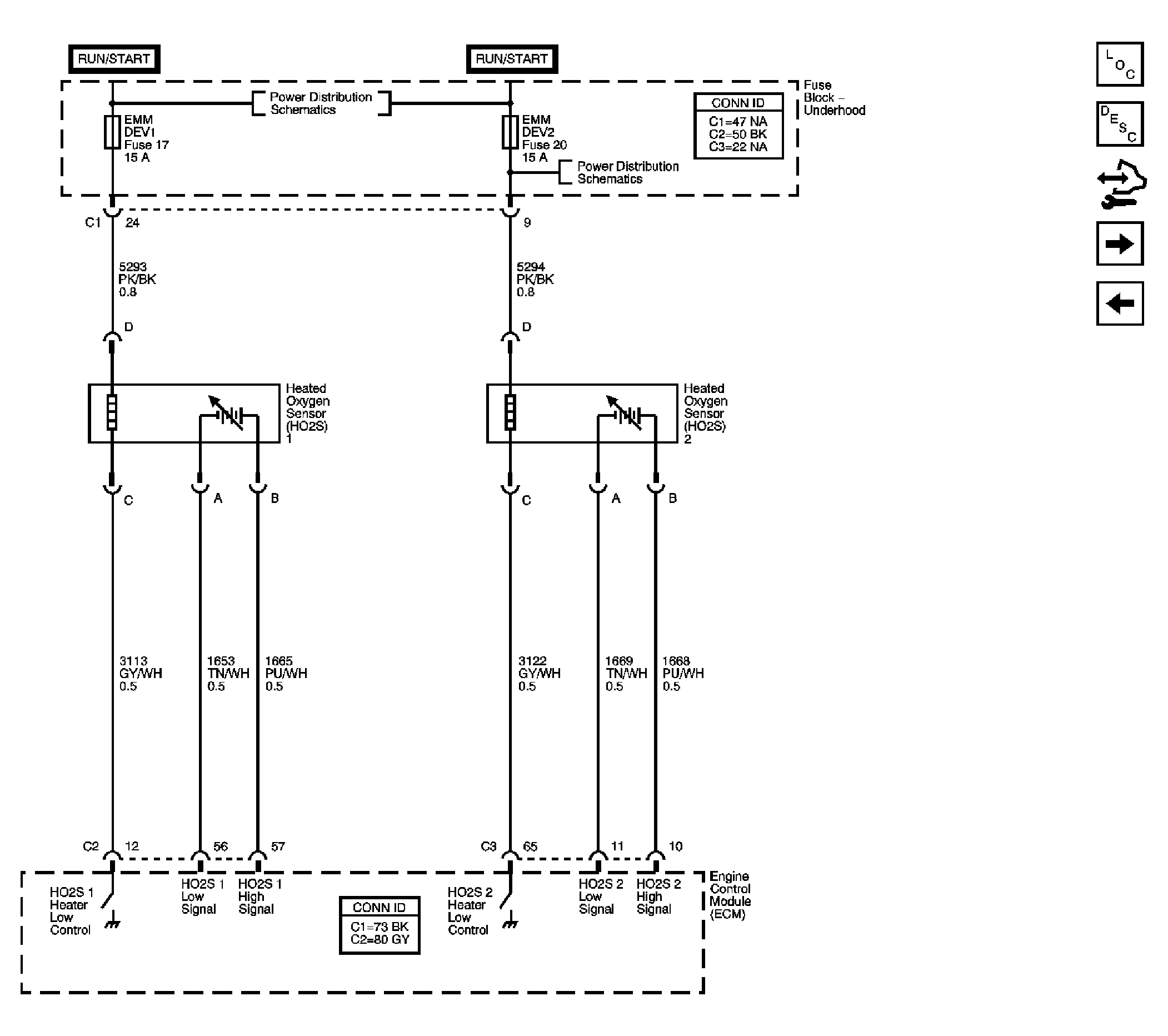

Fig 5: Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

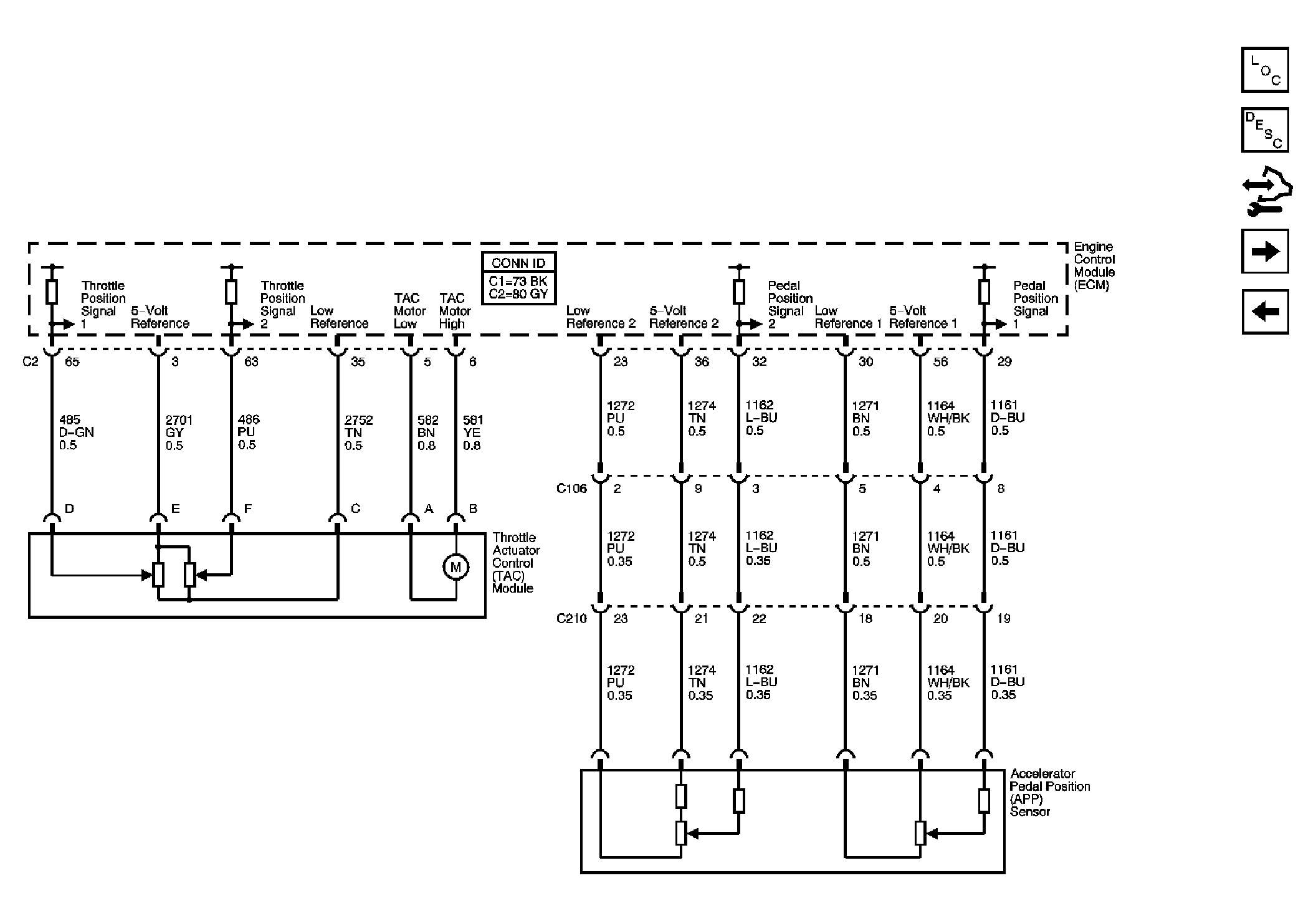

Fig 6: TAC, Accelerator Pedal Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

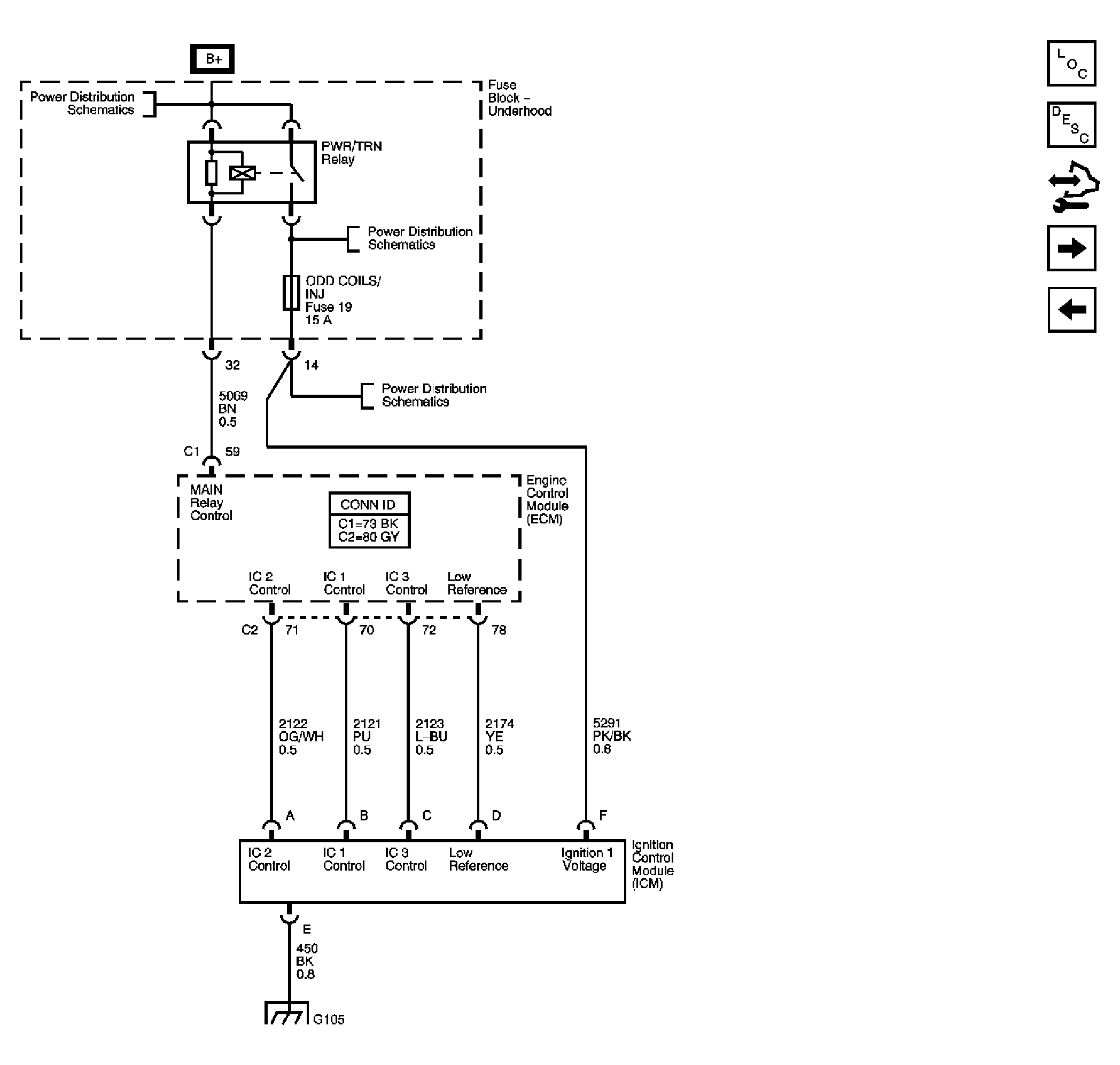

Fig 7: Ignition Control Module Schematic

Courtesy of GENERAL MOTORS CORP.

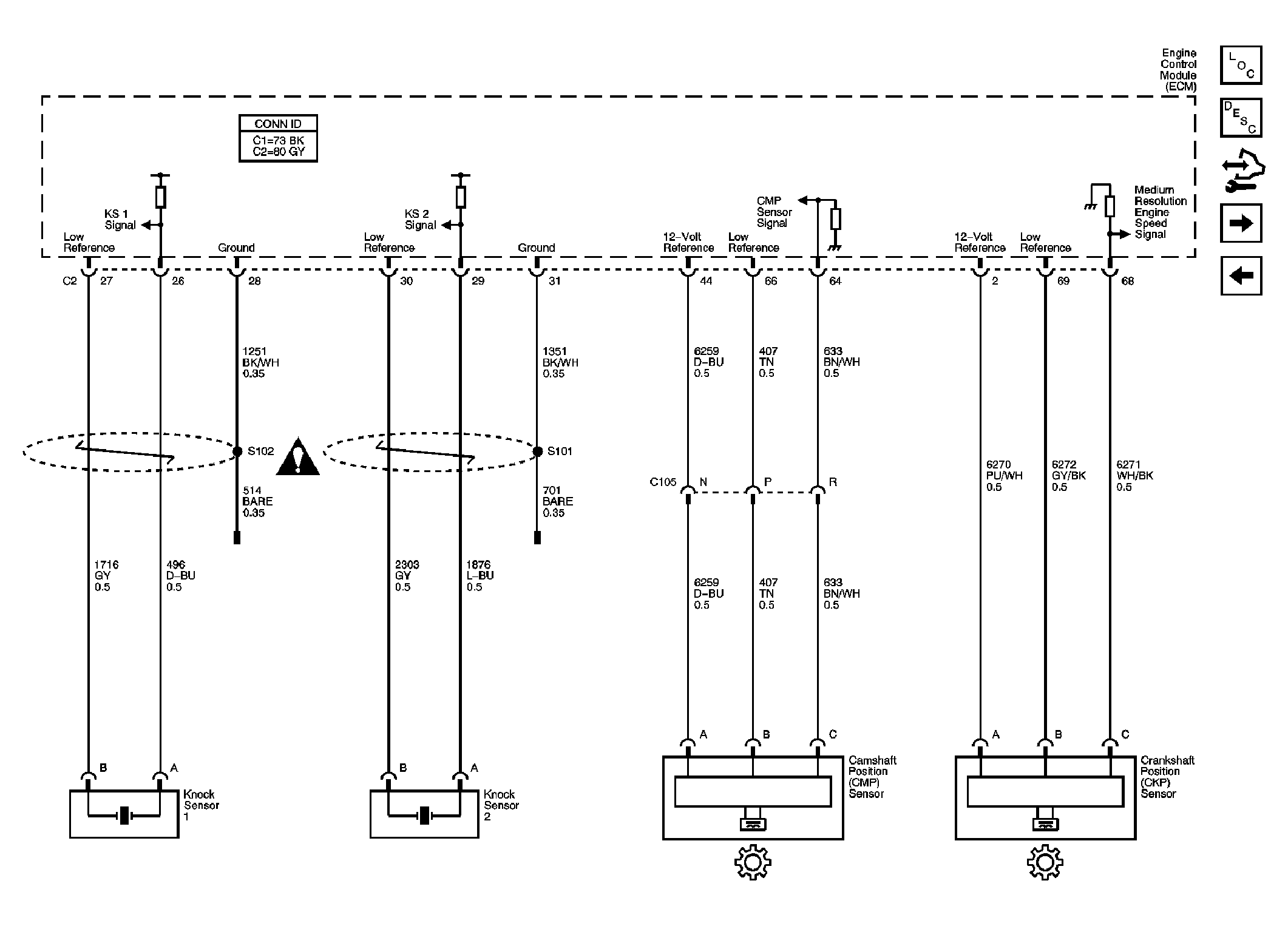

Fig 8: Knock, Camshaft & Crankshaft Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

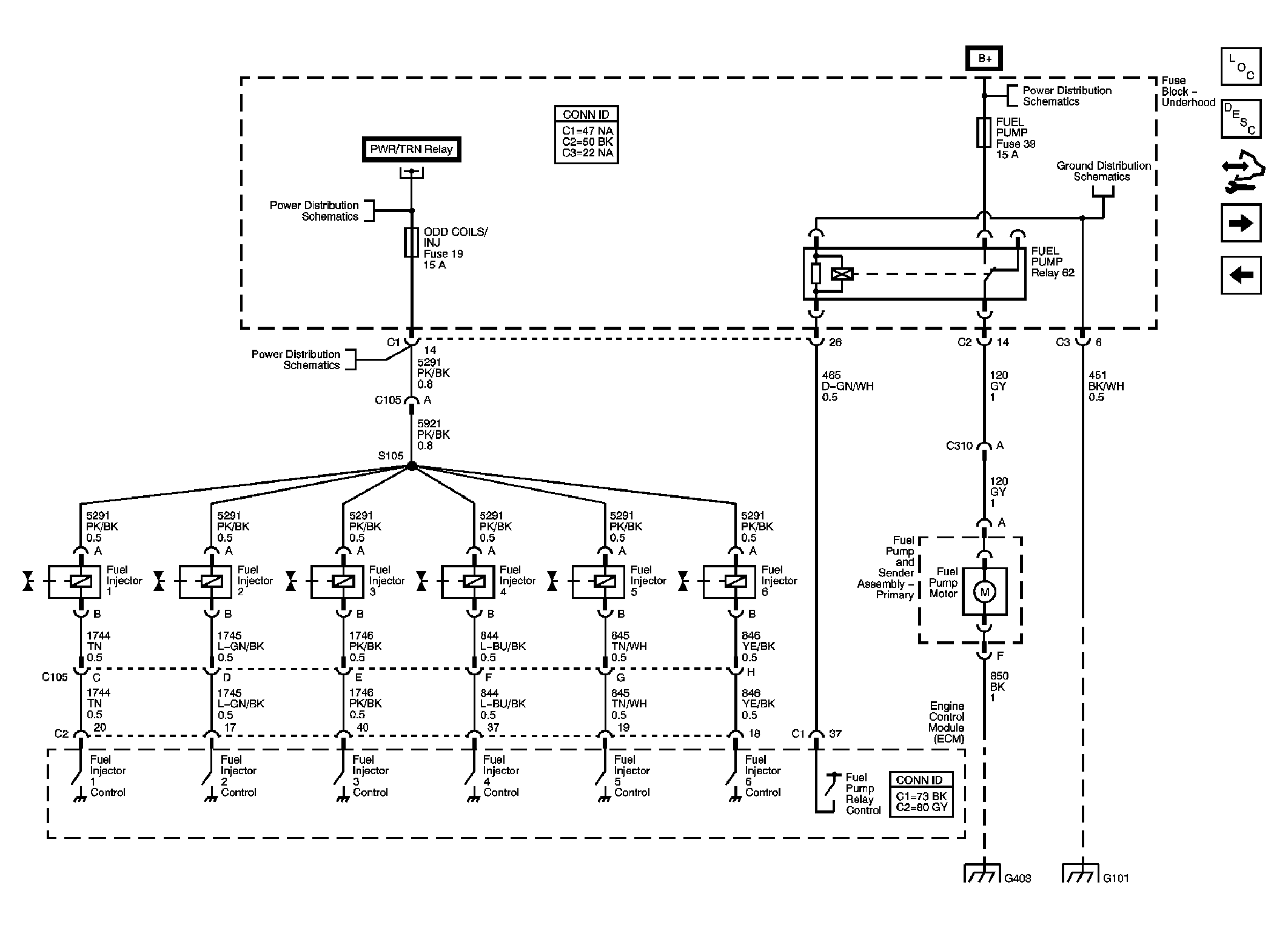

Fig 9: Fuel Injectors & Fuel Pump Schematic

Courtesy of GENERAL MOTORS CORP.

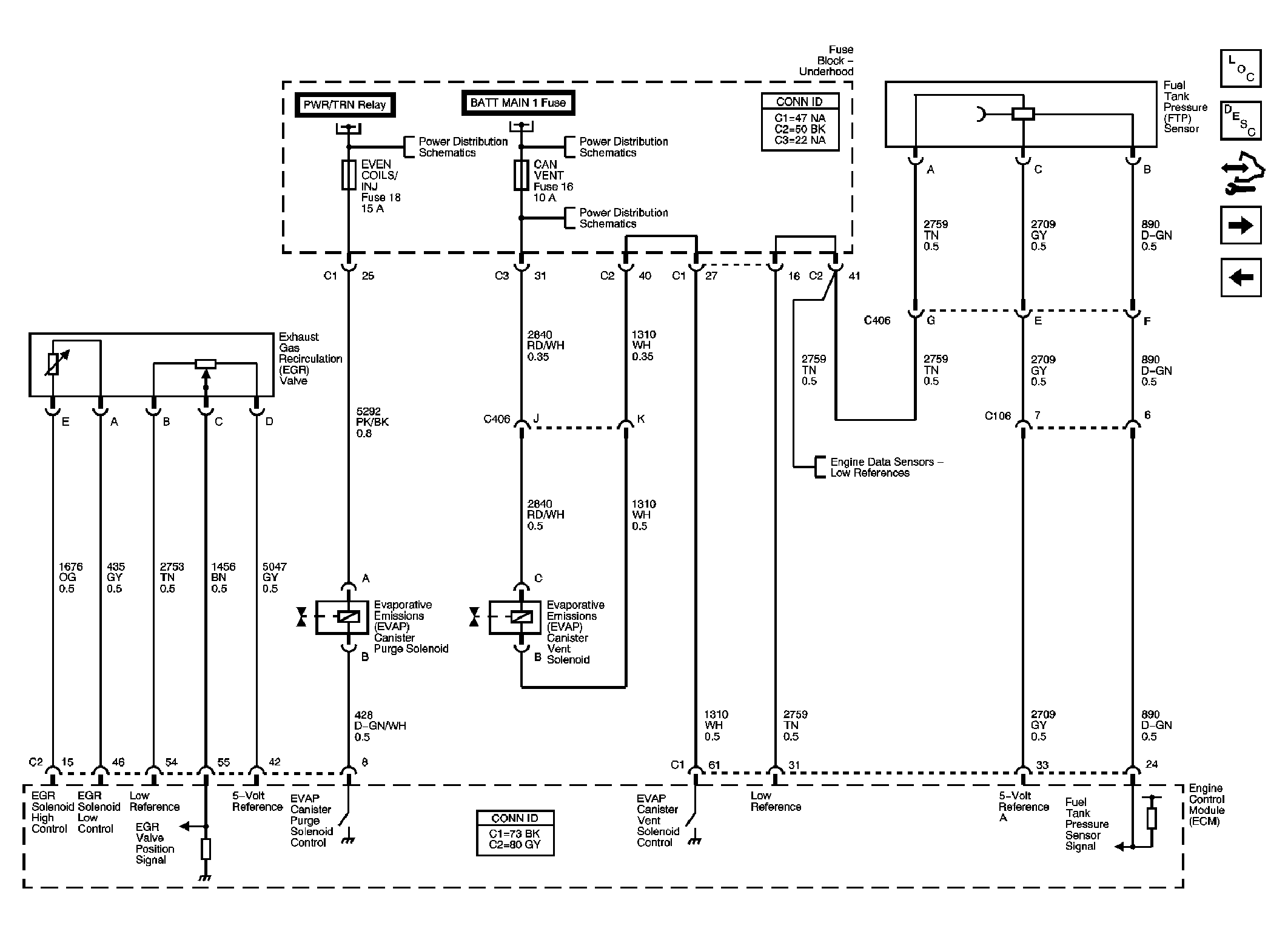

Fig 10: EGR & EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
