Cellular Communication Component Views
WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

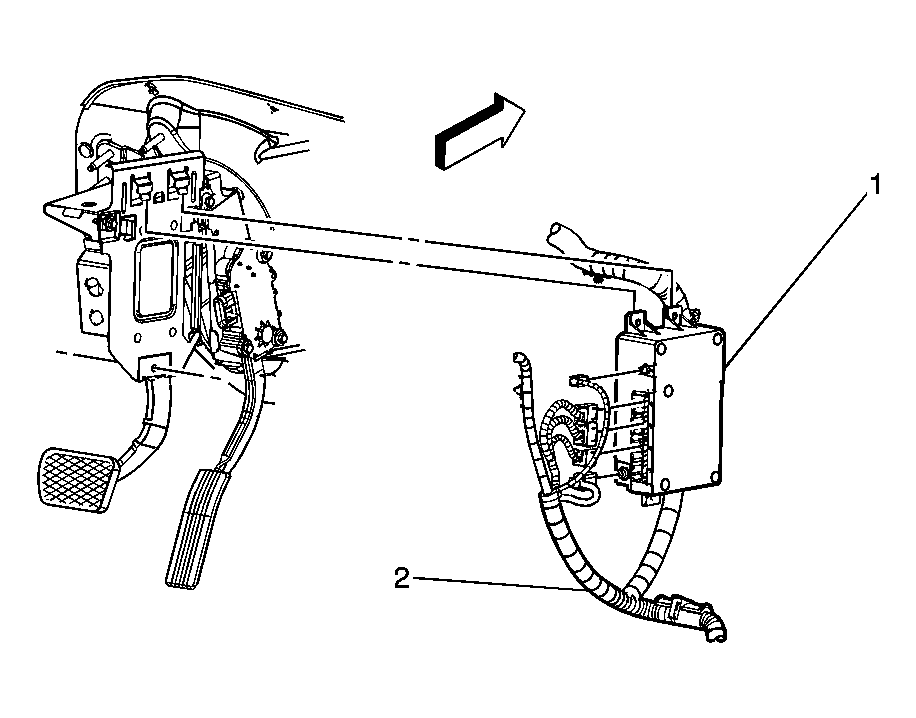

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Vehicle Communication Interface Module (VCIM) |
| 2 |
I/P Harness |

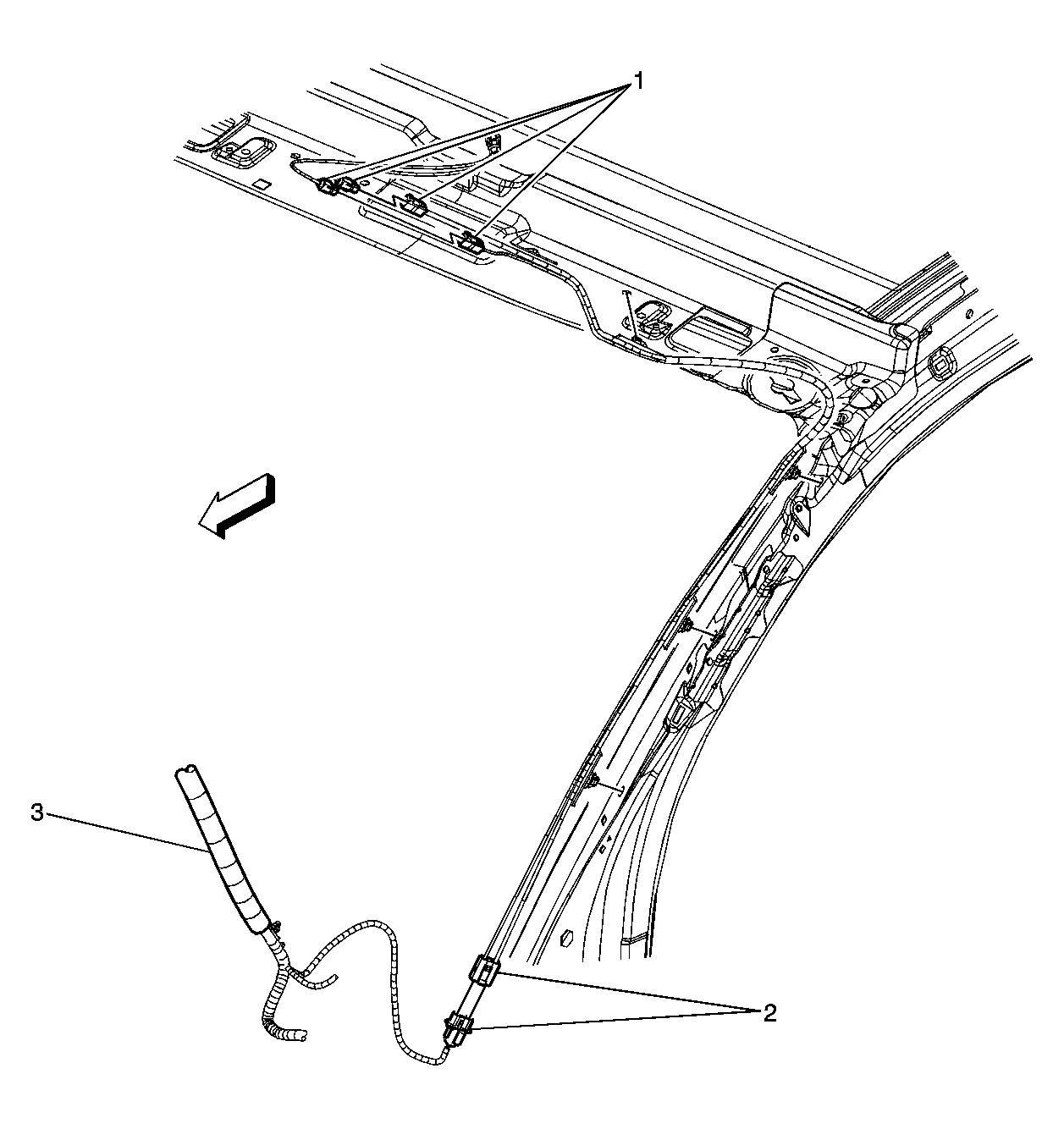

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular and Navigation Antenna - Coax Connectors |
| 2 |
C205 - Coax Connector |
| 3 |
I/P Harness |
