Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Strut Assembly To Body Bolts

Courtesy of GENERAL MOTORS CORP.

Position the strut assembly to the vehicle.

CAUTION: Refer to Fastener Caution .

Install the 3 upper strut mount bolts and tighten to 25 N.m (18 lb ft).

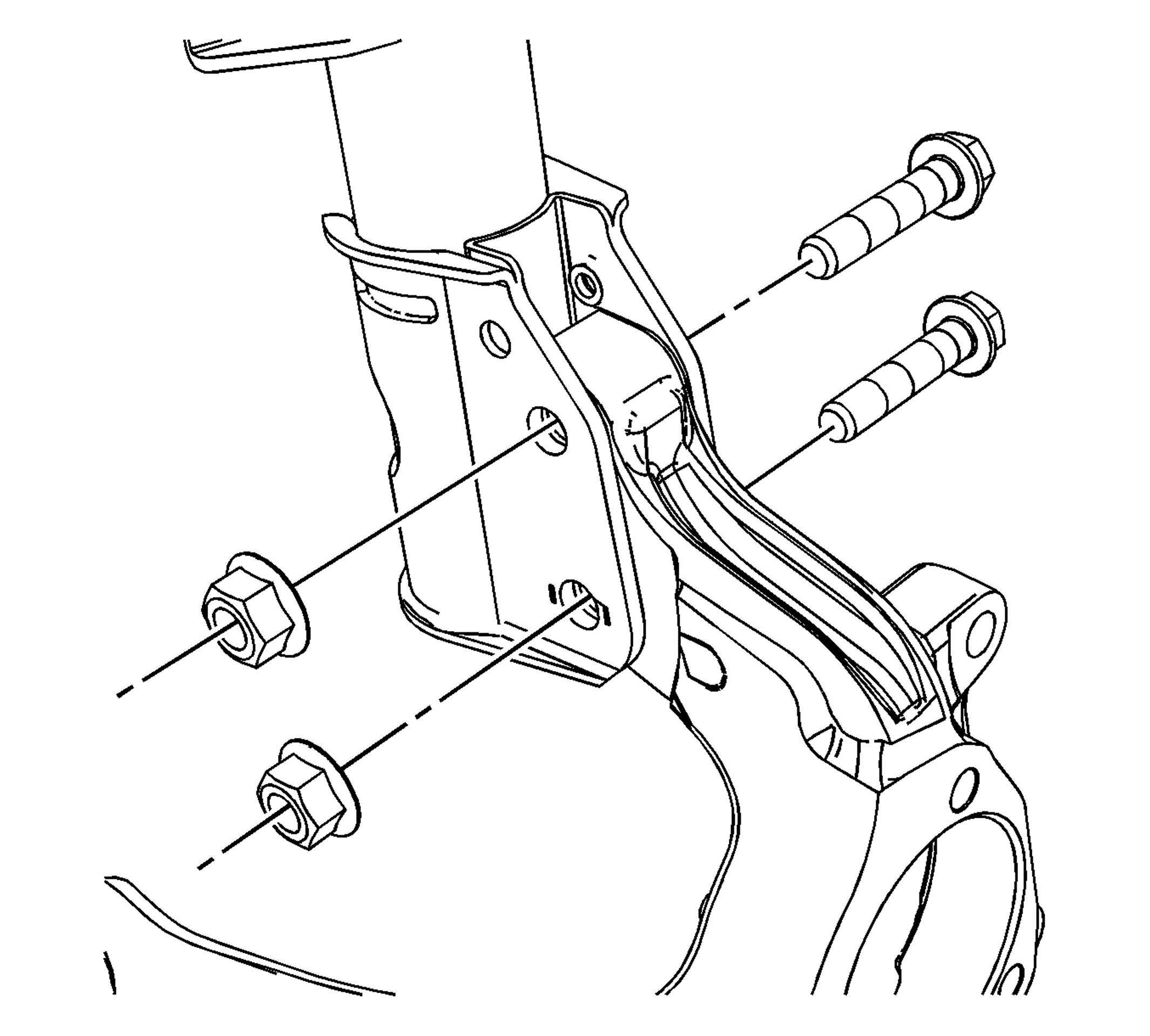

Fig 2: Identifying Steering Knuckle To Strut Bolts & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the lower strut bolts and nuts and tighten to 200 N.m (148 lb ft).

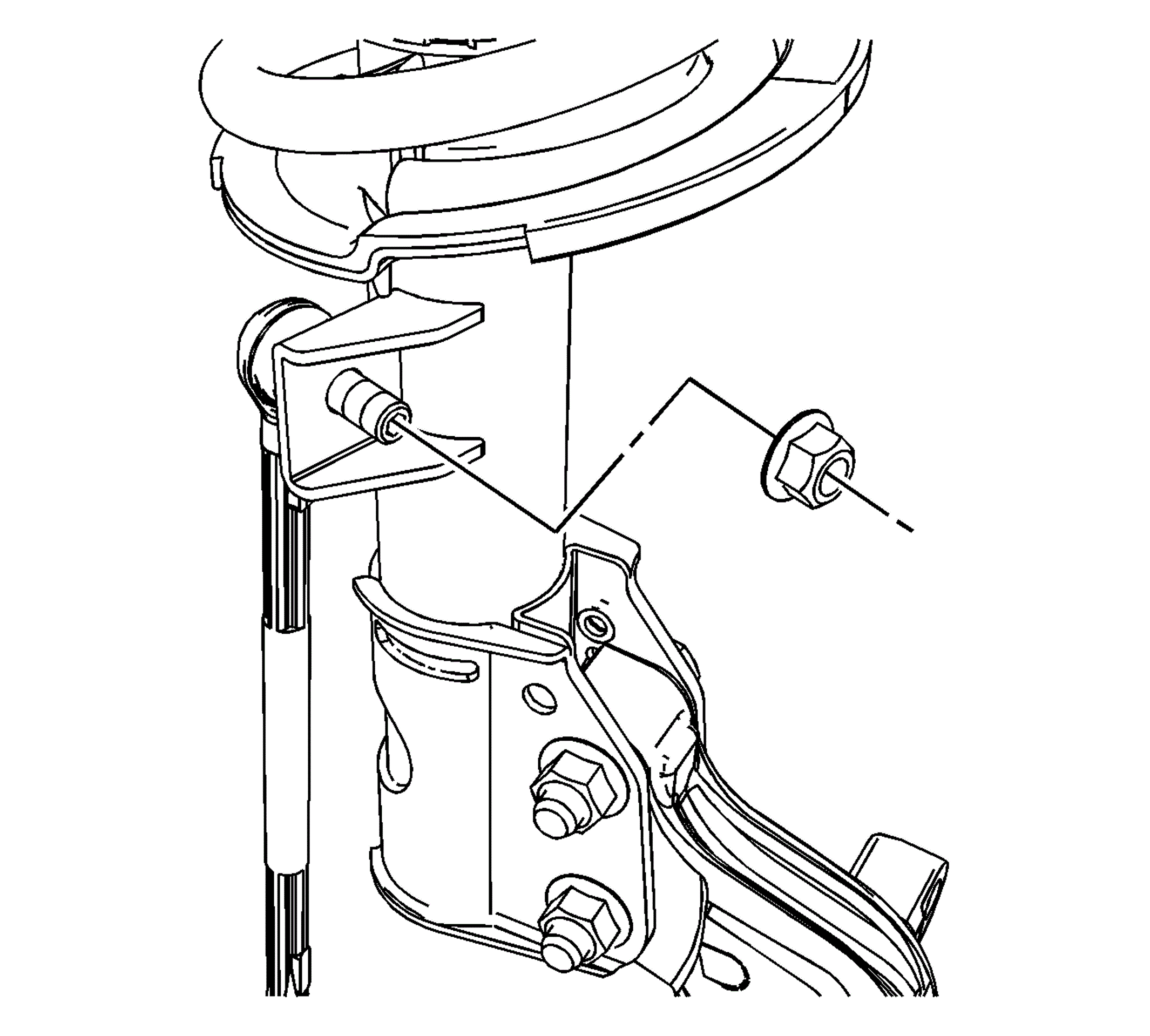

Fig 3: Identifying Stabilizer Link Retaining Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Inspect the stabilizer link seals for damage prior to installation. Replace as required.

NOTE: Do not allow the stabilizer link ball stud to rotate while installing the link nut.

Position the stabilizer link to the strut and install the nut and tighten the nut to 65 N.m (48 lb ft).

Fig 4: View Of Brake Hose Bracket & Strut Assembly

Courtesy of GENERAL MOTORS CORP.

Position the brake hose bracket to the strut assembly and install the bolt and tighten to 15 N.m (11 lb ft).
Install the wheel and tire. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
Perform a wheel alignment. Refer to Wheel Alignment Measurement .
