Power Roof Systems Component Views

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

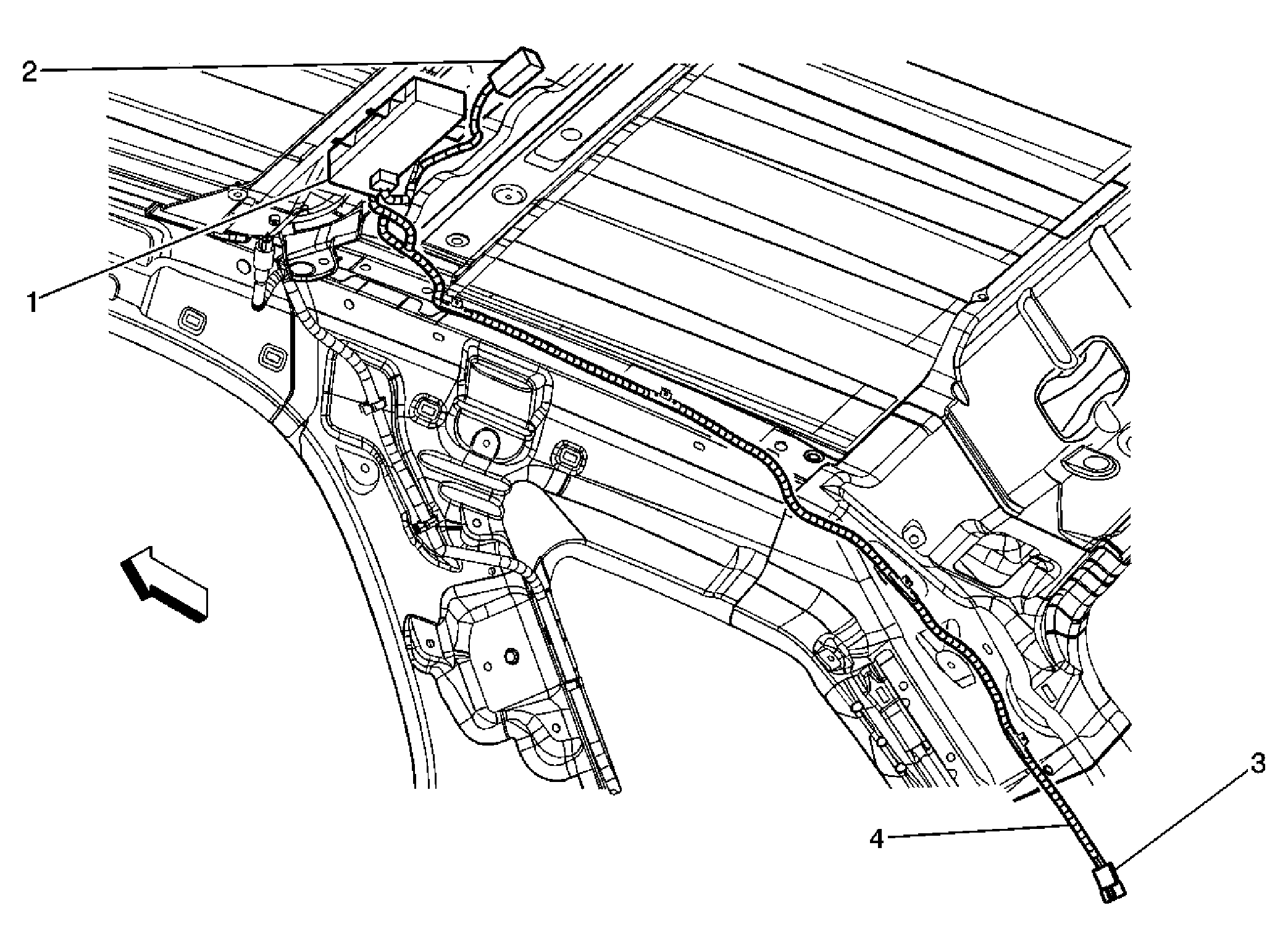

Fig 1: View of Right Side of the Headliner Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module
2	Sunroof Motor/Limit Switch
3	C302
4	Sunroof Harness
