Communication Interface Module Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

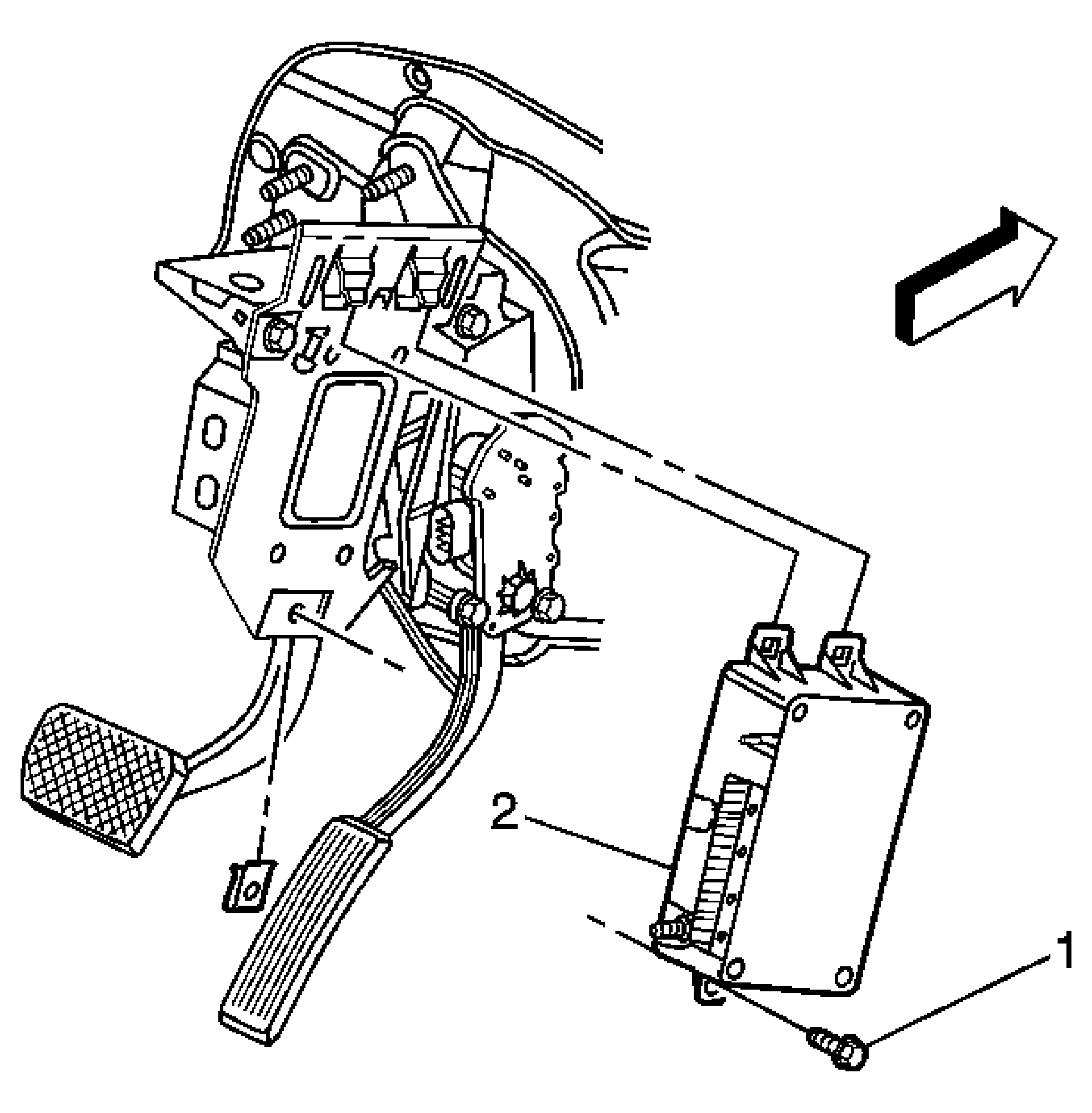

Fig 1: View Of Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . IMPORTANT: The vehicle communication interface module (VCIM) has a specific set of unique numbers that tie the module to each vehicle. These numbers, the 10-digit station identification and the 11-digit electronic serial number, are used by the National Cellular Network and OnStar® to identify the specific vehicle. Because these numbers are tied to the vehicle identification number of the vehicle, you must never exchange these parts with those of another vehicle. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the left instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
1	Communication Interface Module Bolt Tighten: 10 N.m (89 lb in)
2	Communication Interface Module Tip: Pull down to release the module from the bracket. Disconnect the electrical connectors, the GPS antenna, and the cellular coax cable. If replacing the module, record the 10-digit STID number, and the 11-digit ESN number from the labels on the new module. Reconfigure the OnStar® system. Refer to Control Module References .
