Air Bag Control Module: Locations

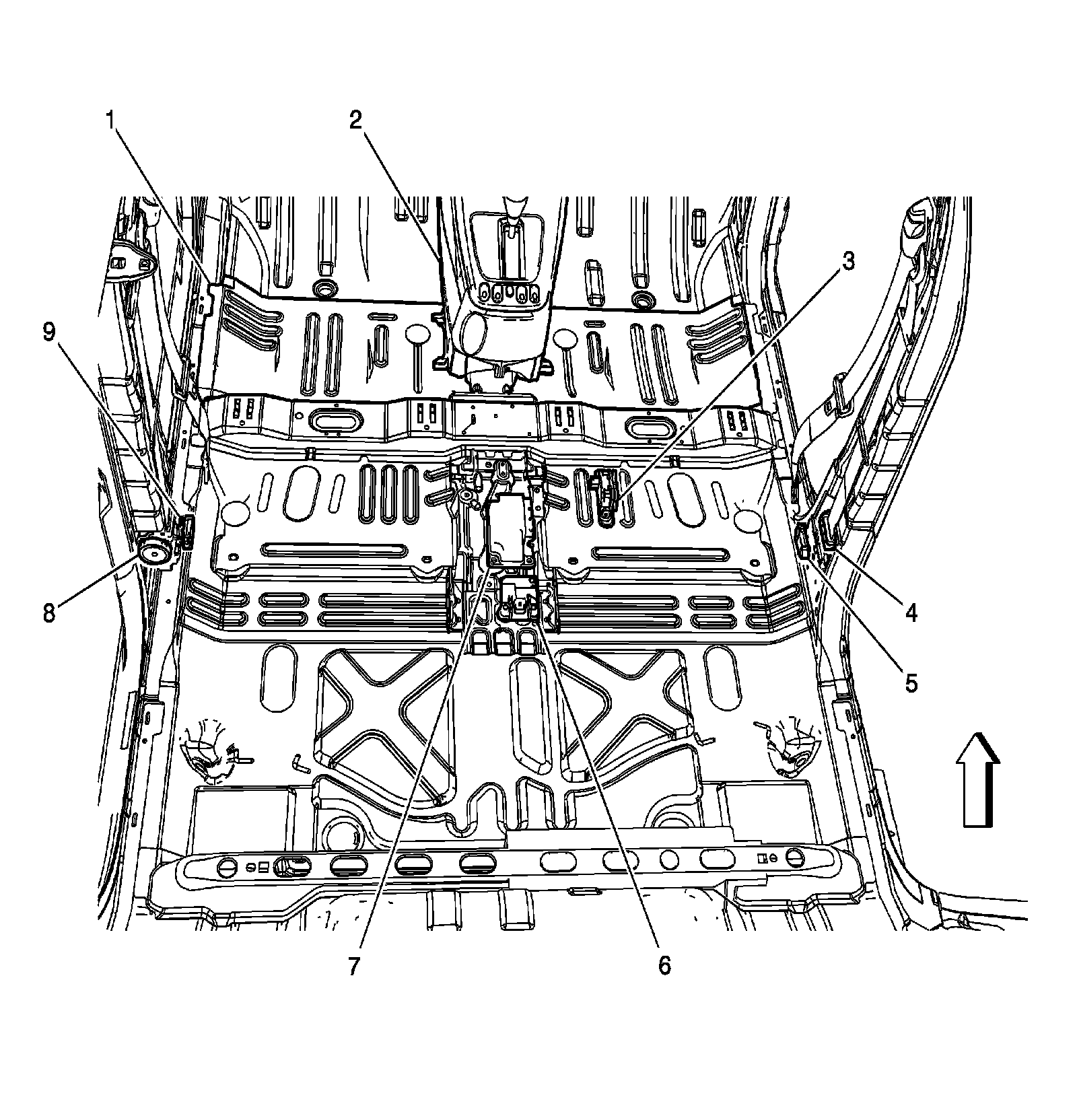

SIR Component Views


Center of the Floor




1 - Floor Panel
2 - Console
3 - YAW Rate and Lateral Acceleration Sensor
4 - Seat Belt Pretensioner - Right
5 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
6 - Inflatable Restraint Vehicle Rollover Sensor
7 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
8 - Seat Belt Pretensioner - Left
9 - Inflatable Restraint side Impact Sensor (SIS) - Left (ASF)
