Power and Grounding Component Views

Fig 1: Underhood Fuse Block Component View
GM787265Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 AC Compressor Relay
2 H-LP Relay
3 Not Used
4 Not Used
5 Not Used
6 C100
7 DIM Relay
8 Spare Fuse
9 Horn Relay
10 Fan 2 Relay
11 Fan 1 Relay
12 C1-Battery Voltage
13 Not Used
14 H-Main Fuse 30A
15 Alt-S Fuse 5A
16 EFI Fuse 15A
17 HAZ Fuse 10A
18 HORN Fuse 10A
19 C2
20 DOME Fuse 15A
21 MAIN Fuse 30A
22 AMP Fuse 25A (If Equipped)
23 Not Used
24 ALT Fuse 100A
25 ABS 2 Fuse 40A
26 RDI Fuse 40A
27 ABS 1 Fuse 30A
28 Not Used
29 FR FOG Fuse 15A
30 H-LP RH Fuse 15A
31 H-LP LH 15A
32 EFI Relay
33 FR FOG Relay

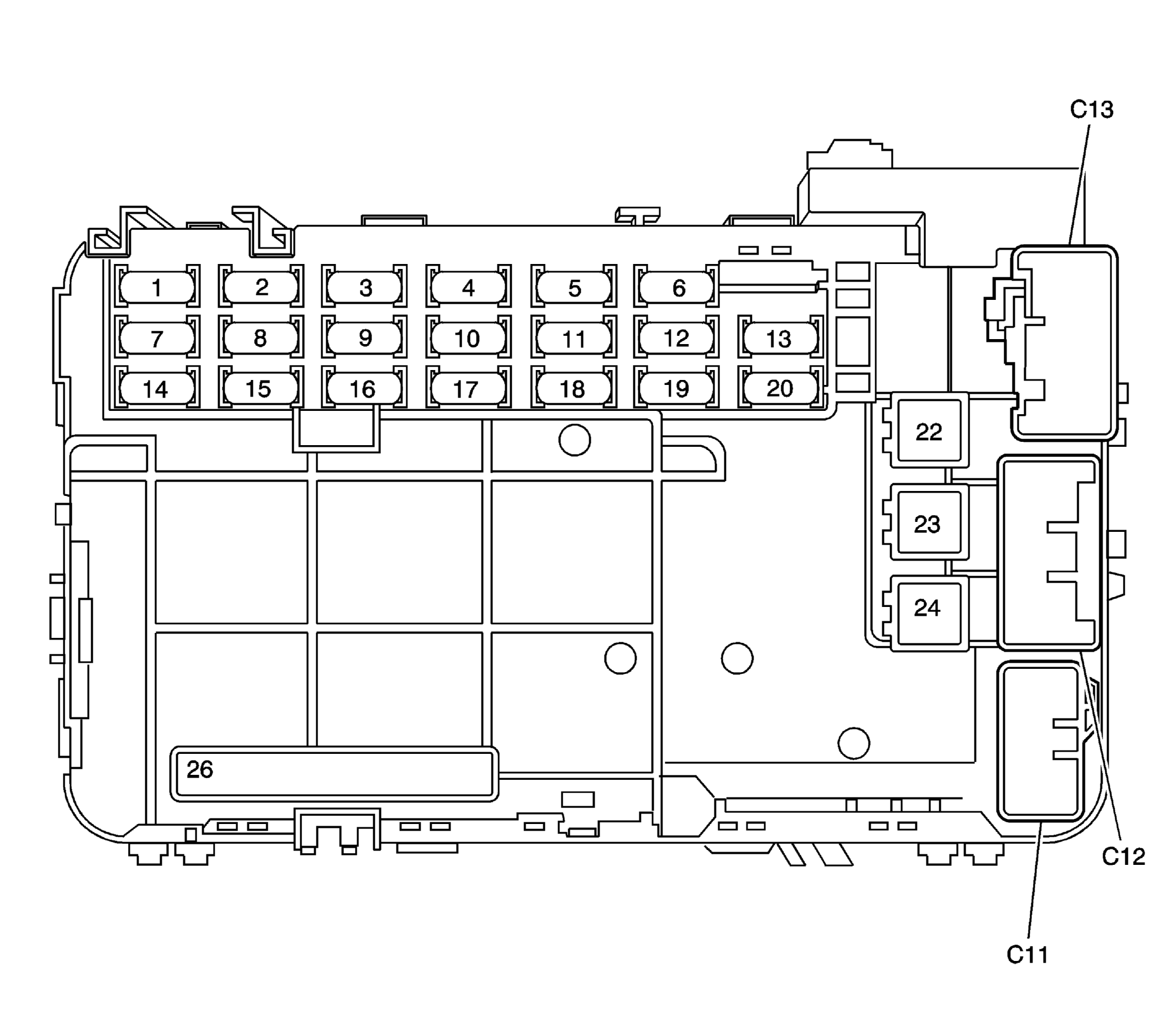

Fig 2: Instrument Panel Fuse Block Component View (Bottom)
GM787267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 TAIL Fuse 15A
2 OBD Fuse 7.5A
3 Not Used
4 Not Used
5 WIPER Fuse 25A
6 AM 2 Fuse 15A
7 STOP Fuse 15A
8 DOOR Fuse 25A
9 AM 1 Fuse 25A
10 Not Used
11 ECU-IG Fuse 10A
12 RR WIPER Fuse 15A
13 AC Fuse 10A
14 INV Fuse 15A
15 P/POINT Fuse 15A
16 ECU-B Fuse 10A
17 CIG Fuse 15A
18 GAUGE Fuse 10A
19 WASHER Fuse 15A
20 BLOWER/DEF Idle-Up Fuse 10A
21 C13
22 HEATER Fuse 40A
23 DEF Fuse 30A
24 POWER Fuse 30A
25 C12
26 Multifunction Alarm Module
27 C11

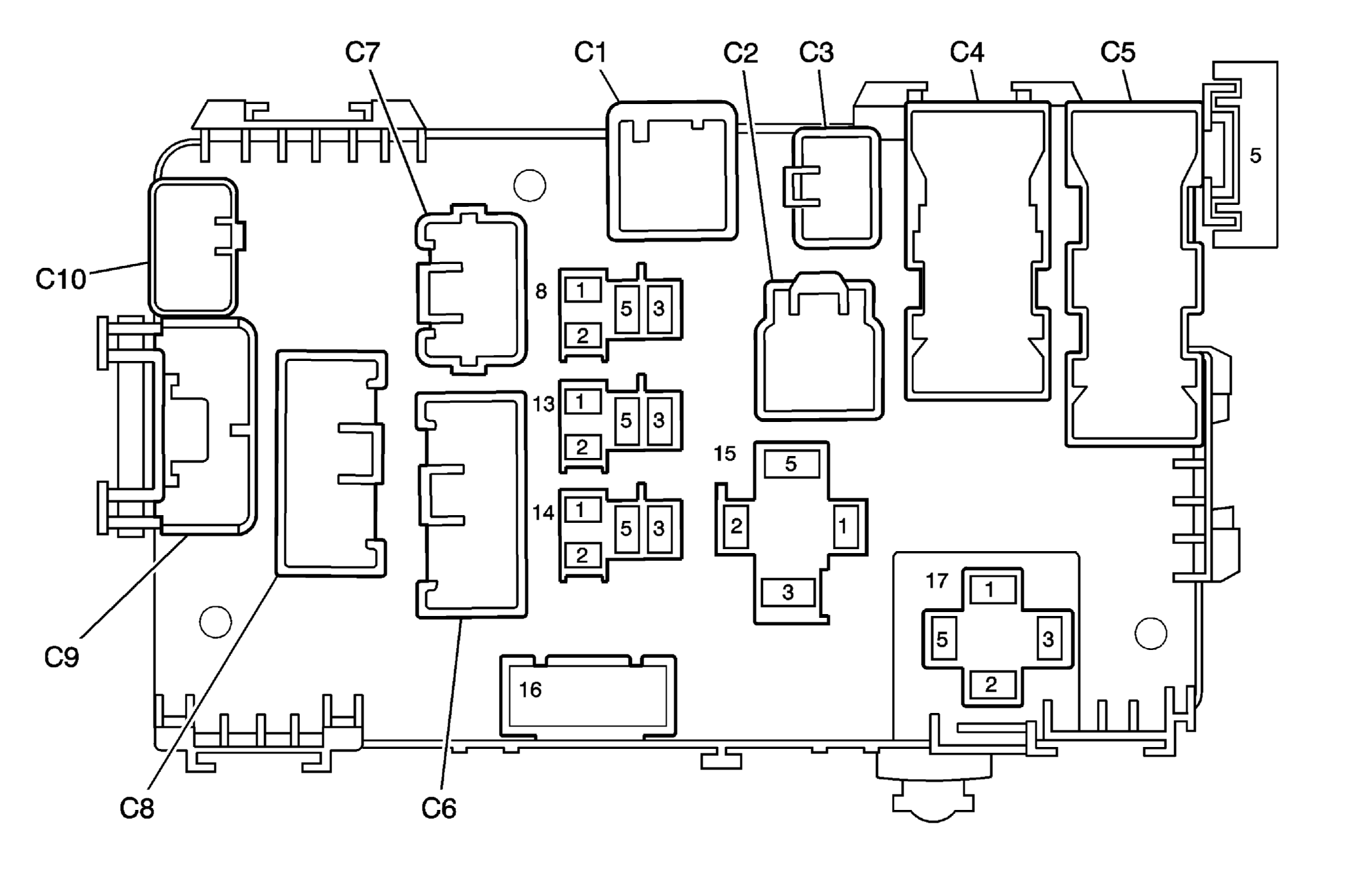

Fig 3: Instrument Panel Fuse Block Component View (Top)
GM787266Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C1
2 C3
3 C4
4 C5
5 Hazard Flasher
6 C10
7 C7
8 C/OPN Relay
9 C2
10 C9
11 C8
12 C6
13 P/W Relay
14 IG 1 Relay
15 DEF Relay
16 Noise Filter
17 ST Relay

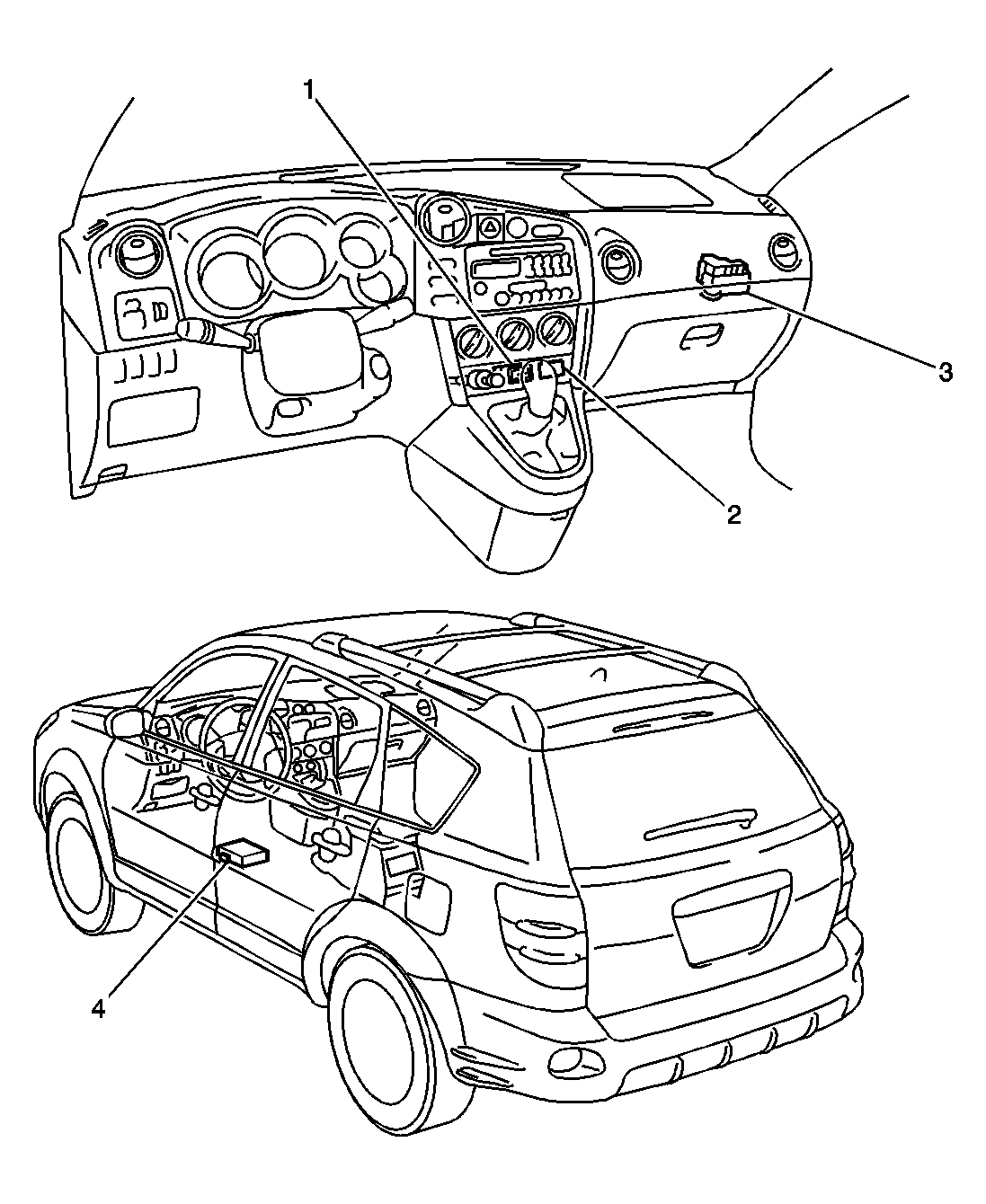

Fig 4: AC/DC Accessory Power Receptacle Component Views
GM847071Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory Power Receptacle Switch
2 Accessory Power Receptacle
3 Accessory Power Receptacle Relay
4 Accessory AC/DC Power Control Module
Fig 5: Cigar Lighter Component View
GM847716Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
Fig 6: Right Instrument Panel Junction Block Component View - Relay Side
GM785553Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Instrument Panel Junction Block - Relay Side
2 INV Relay
3 Tail Relay
4 P-Point Relay
5 Heater Relay
Fig 7: Right Instrument Panel Junction Block Component View - Connector Side
GM785562Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C3
2 C2
3 C1
4 Right Instrument Panel Junction Block - Connector Side
Fig 8: Left Instrument Panel Junction Block Component View
GM787258Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Instrument Panel Junction Block
2 C3
3 C2
4 C1
Fig 9: Right Instrument Panel Junction Block Buss Bar View
GM1462343Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Instrument Panel Junction Block
2 C3
3 C2
4 C1
Fig 10: Left Instrument Panel Junction Block Buss Bar View
GM1462356Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Instrument Panel Junction Block
2 C3
3 C2
4 C1
Fig 11: ABS Relay Block
GM1464261Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 ABS Cut Relay
2 ABS MTR Relay
