Antilock Brake System Component Views

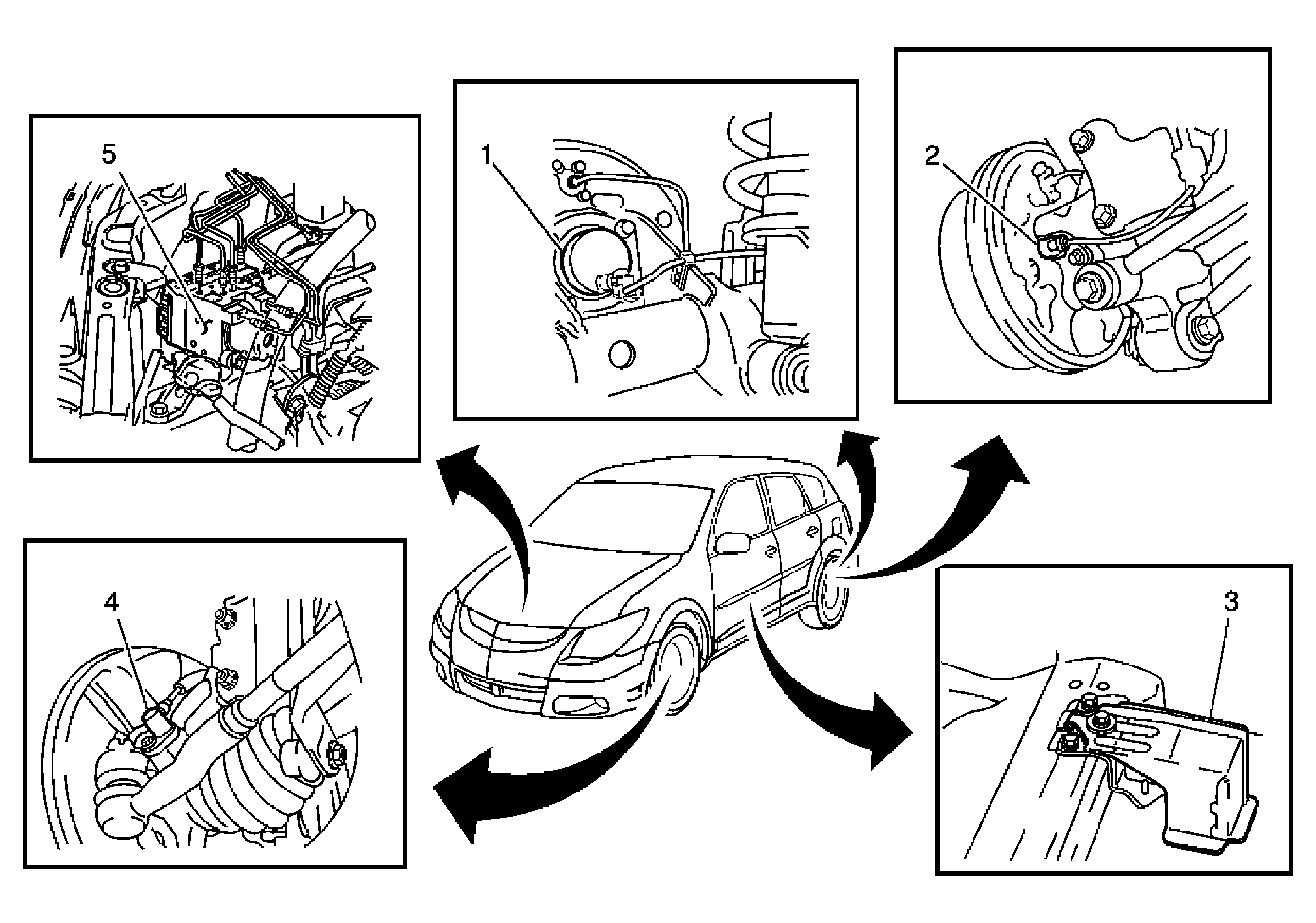

Fig 1: Vehicles without Traction and Stability Control System
GM1485898Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Wheel Speed Sensor FWD
2 Rear Wheel Speed Sensor AWD
3 Deceleration Sensor AWD
4 Front Wheel Speed Sensor
5 Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly

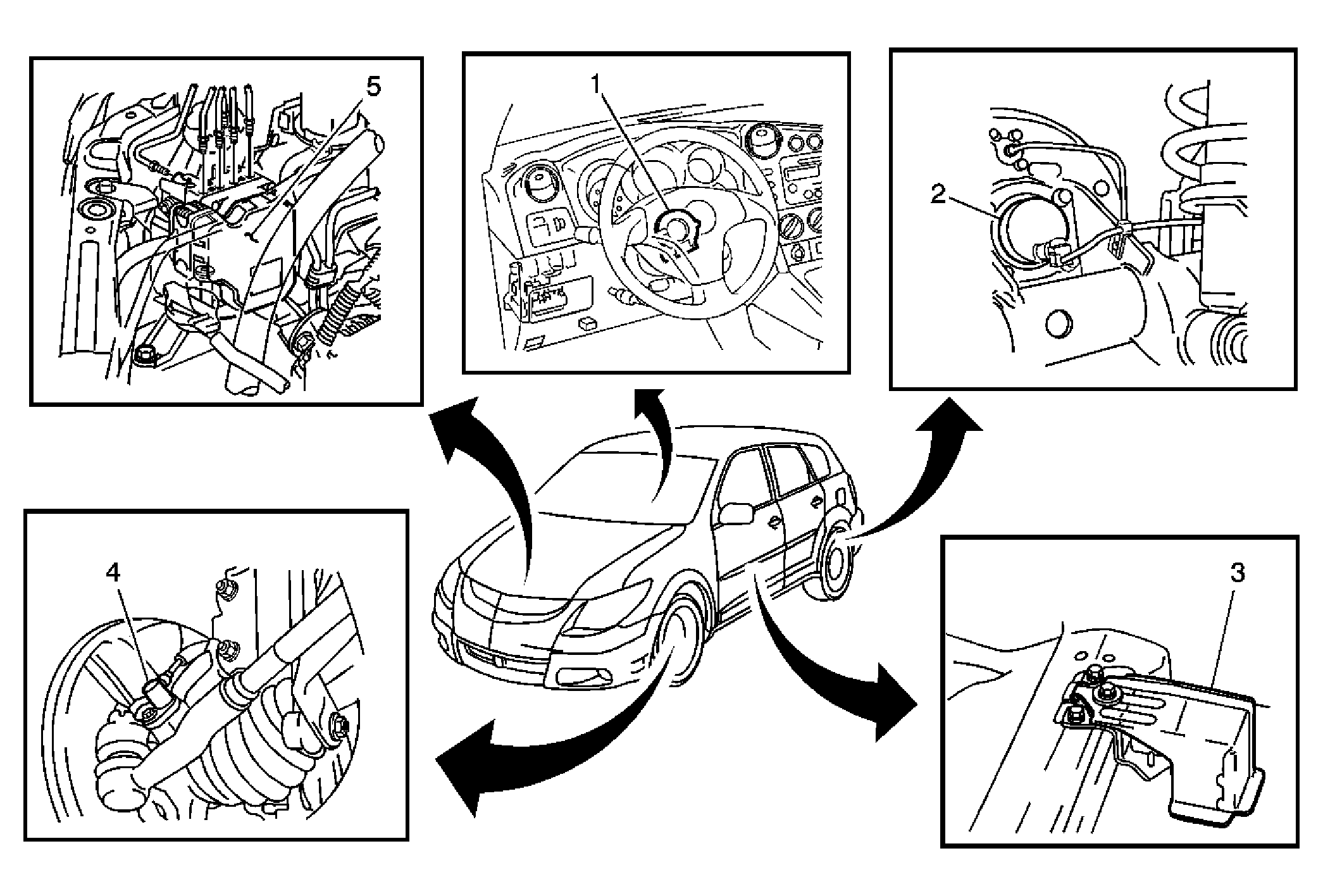

Fig 2: Vehicles with Traction and Stability Control System
GM1485900Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Angle Sensor
2 Rear Wheel Speed Sensor
3 Yaw Rate Sensor
4 Front Wheel Speed Sensor
5 Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly
