Left Front Wheel Speed Sensor

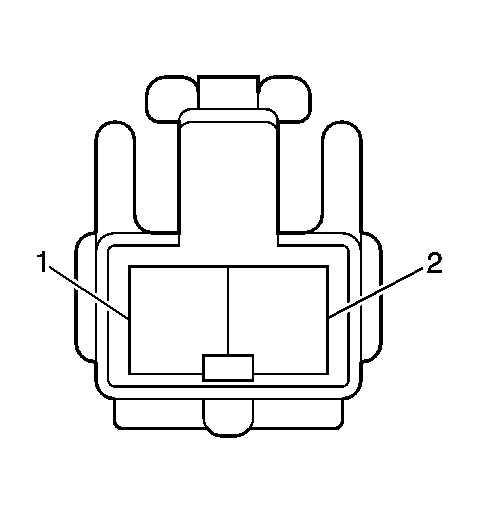

Fig 1: Left Front Wheel Speed Sensor Connector End View
GM334916Courtesy of GENERAL MOTORS CORP.
Left Front Wheel Speed Sensor Connector & Terminal Parts Information

Connector Part Information
  • OEM: 90980-11003
  • Service: N/A
  • Description: GY
Left Front Wheel Speed Sensor Terminal Identification

Pin Wire Color Function
1 GN Wheel Speed Sensor Low
2 RD Wheel Speed Sensor High
