Installation Procedure

  1. Ensure the front wheels are in the straight ahead position.
    2. IMPORTANT: Make sure the turn signal switch is in the neutral position or turn signal switch pin may be damaged.
  2. Place the turn signal switch in the neutral position.
  3. Install the steering wheel position sensor to the steering wheel module coil.
    4. IMPORTANT: When installing a new steering wheel module coil, remove the lock pin prior to installing the handle.

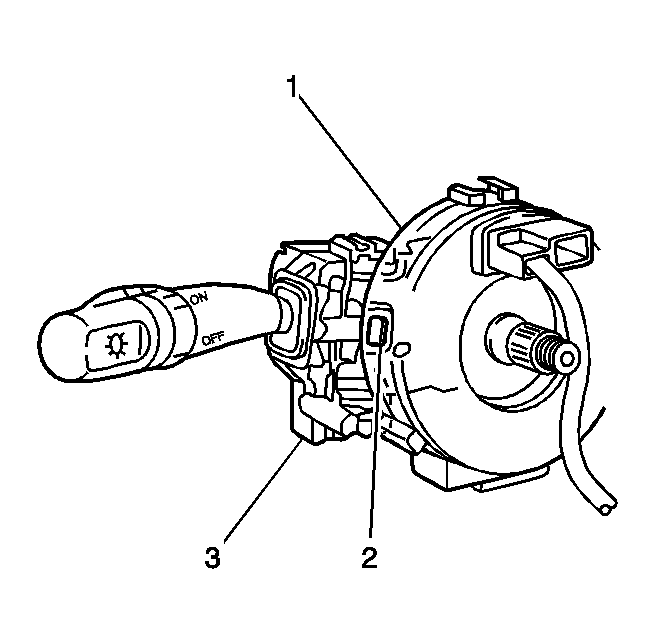

    Fig 1: Steering Wheel Module Coil, Steering Column And Claws
    GM820030Courtesy of GENERAL MOTORS CORP.
  4. Install the steering wheel module coil (1) and engage all 3 retaining claws (2).
  5. Center the steering wheel module coil, if necessary. Refer to Inflatable Restraint Steering Wheel Module Coil Centering .
  6. Connect the steering wheel position sensor electrical connector.

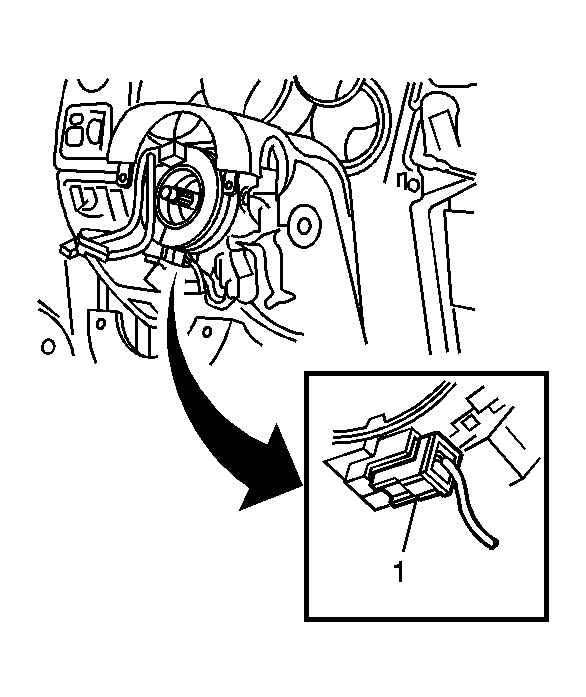

    7. Fig 2: Steering Wheel Module Coil Electrical Connector Location
    GM839654Courtesy of GENERAL MOTORS CORP.
  7. Connect the steering wheel module coil electrical connector.

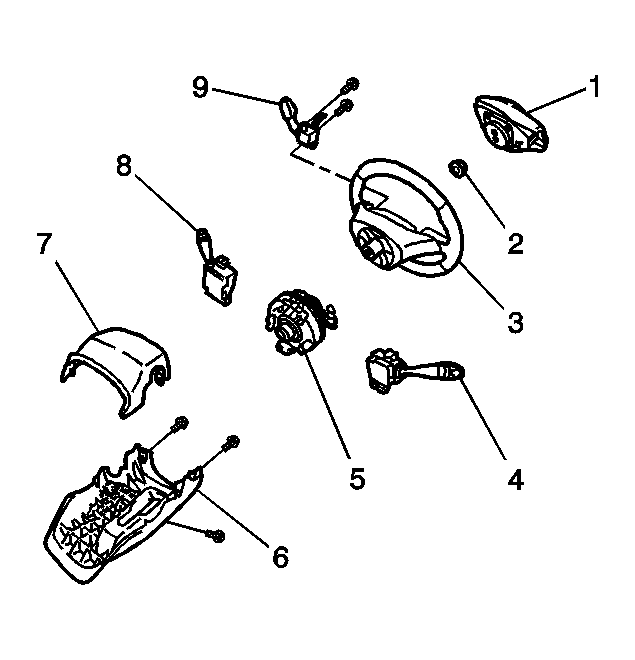

    8. Fig 3: Identifying Upper Steering Column Components
    GM820027Courtesy of GENERAL MOTORS CORP.
  8. Install the steering column lower trim cover (6). Secure with 3 screws.
  9. Install the steering wheel. Refer to Steering Wheel Replacement .
  10. Enable the SIR system. Refer to SIR Disabling and Enabling .
