Engine Electrical Component Views

Fig 1: Ignition Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch

Fig 2: Generator Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Crankshaft Position Sensor

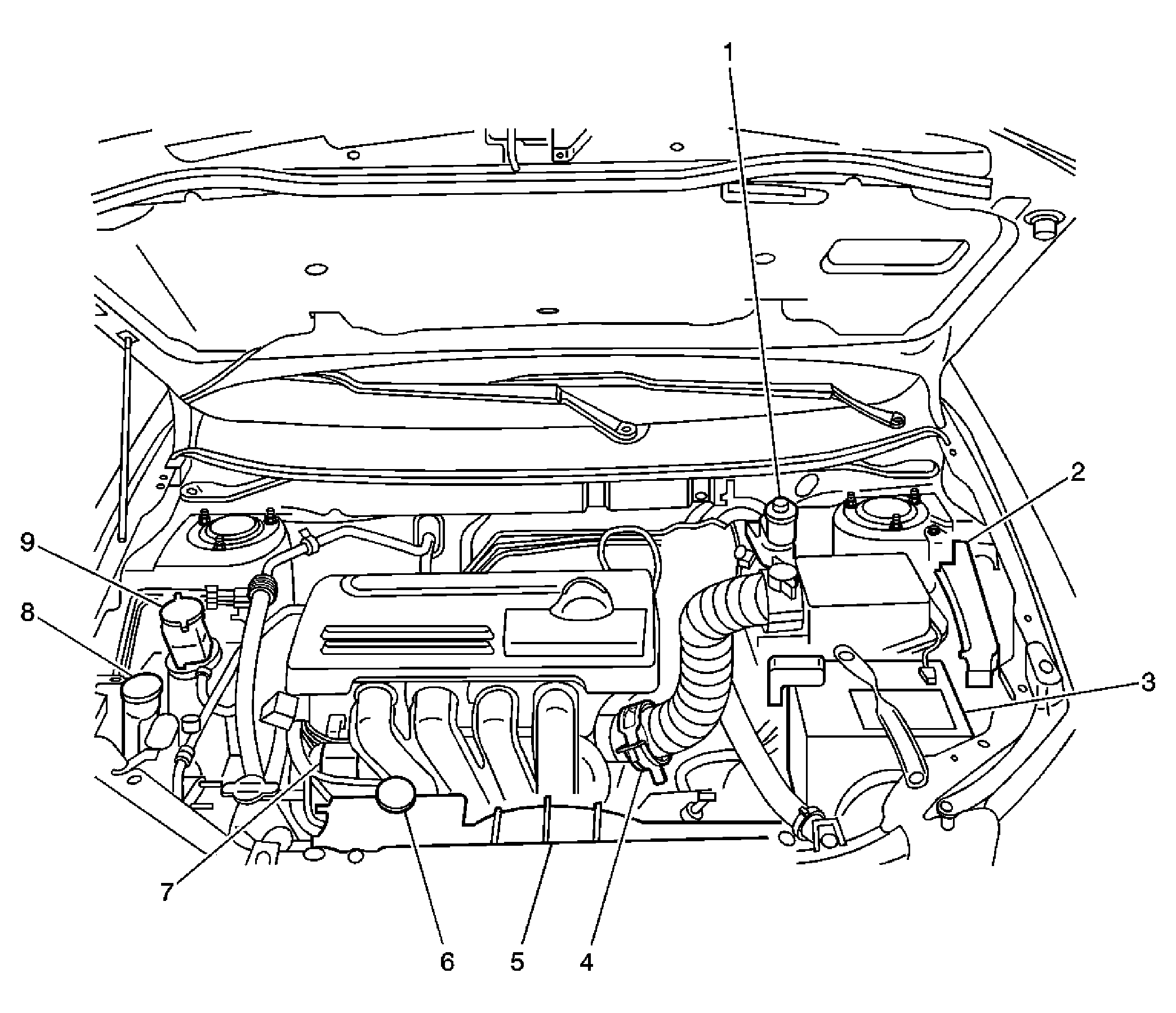

Fig 3: Engine Compartment View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Reservoir
2	Underhood Fuse Block
3	Battery
4	Throttle Actuator Control (TAC) Motor
5	Radiator Fan (Behind Radiator)
6	Engine Coolant Reservoir
7	Generator
8	Windshield Washer Pump
9	Power Steering Fluid Reservoir

Fig 4: Starter Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Manifold
2	Starter Motor
