Throttle Actuator Control (TAC) Module
Throttle Actuator Control (TAC) Module Connector & Terminal Parts Information
Connector Part Information
|

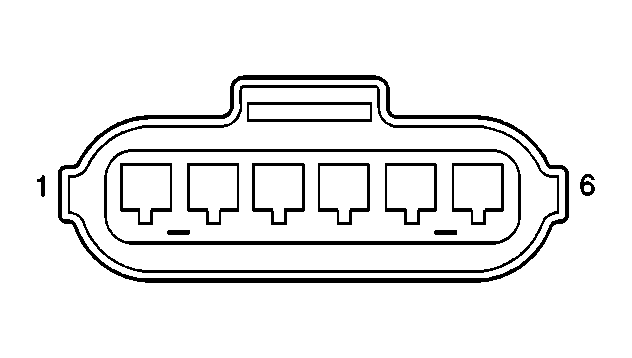

Throttle Actuator Control (TAC) Module Terminal Identification
| Pin | Wire Color | Function |
|---|---|---|
| 1 | WH | Motor Control Low |
| 2 | BK | Motor Control High |
| 3 | BN | Sensor Ground |
| 4 | L-GN | TP Signal Sensor 2 |
| 5 | YE | 5-Volt Reference |
| 6 | L-GN | TP Signal Sensor 1 |
