Electronic Brake Control Module: Locations

Antilock Brake System Component Views

Vehicles without Traction and Stability Control
System

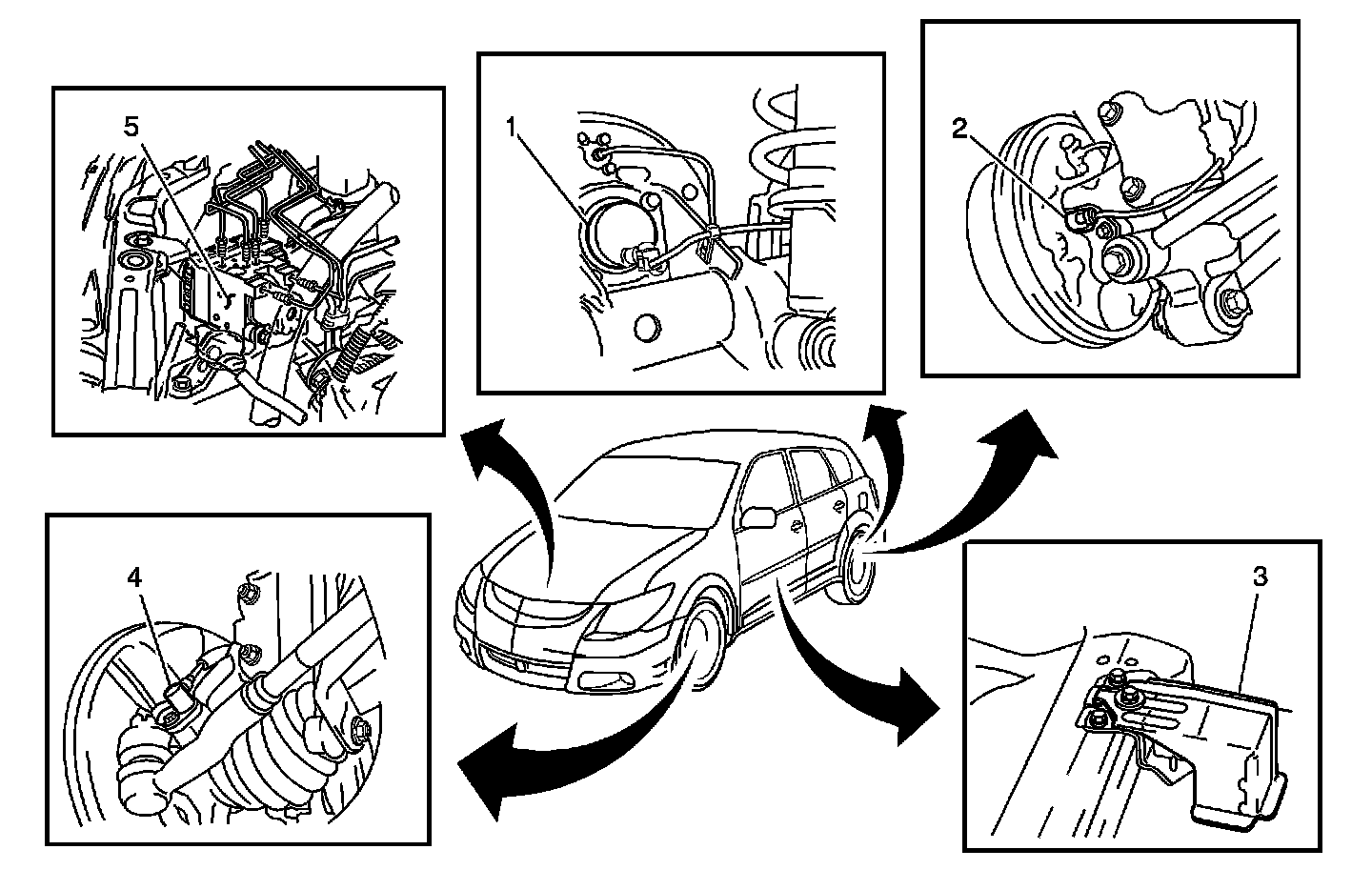

Vehicles without Traction and Stability ControlSystem:

1 - Rear Wheel Speed Sensor FWD
2 - Rear Wheel Speed Sensor AWD
3 - Deceleration Sensor AWD
4 - Front Wheel Speed Sensor
5 - Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly

Vehicles with Traction and Stability Control System

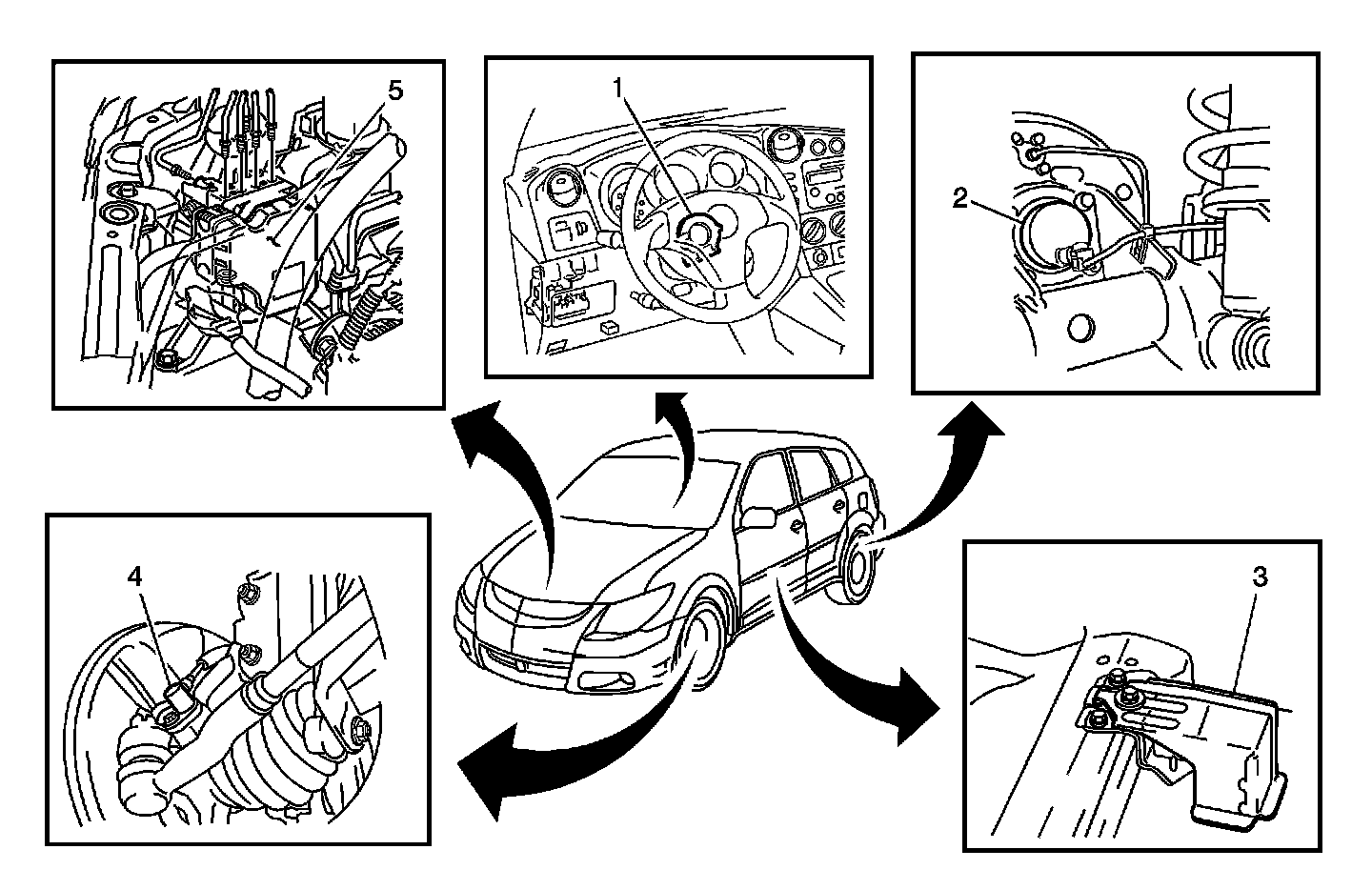

Vehicles with Traction and Stability Control System:

1 - Steering Angle Sensor
2 - Rear Wheel Speed Sensor
3 - Yaw Rate Sensor
4 - Front Wheel Speed Sensor
5 - Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly
