Transmission Control Systems



Automatic Transmission External Component Connector End Views

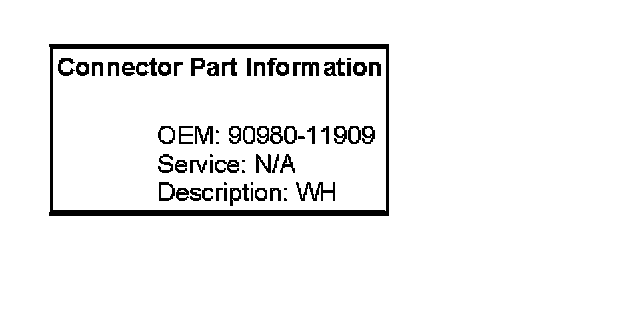

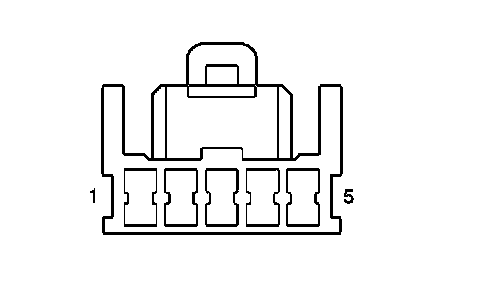

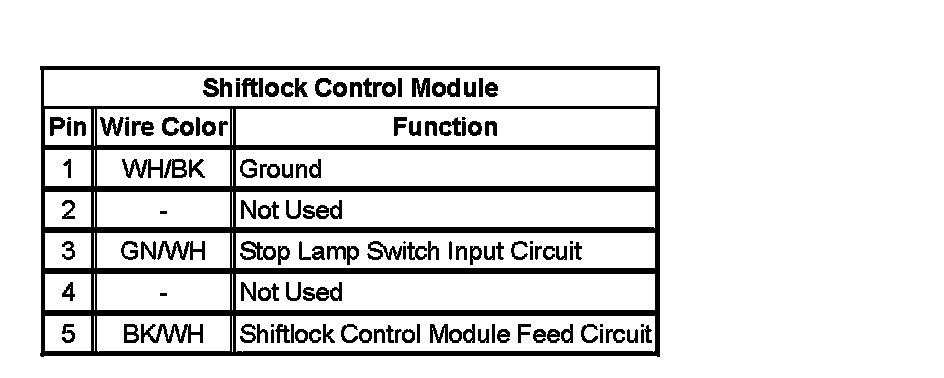

Shiftlock Control Module







Shiftlock Control Module:

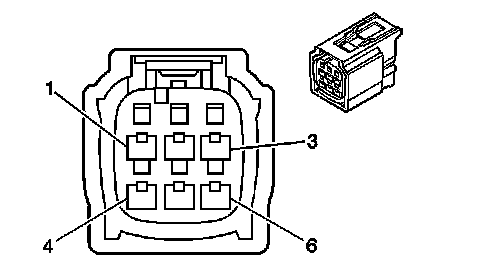

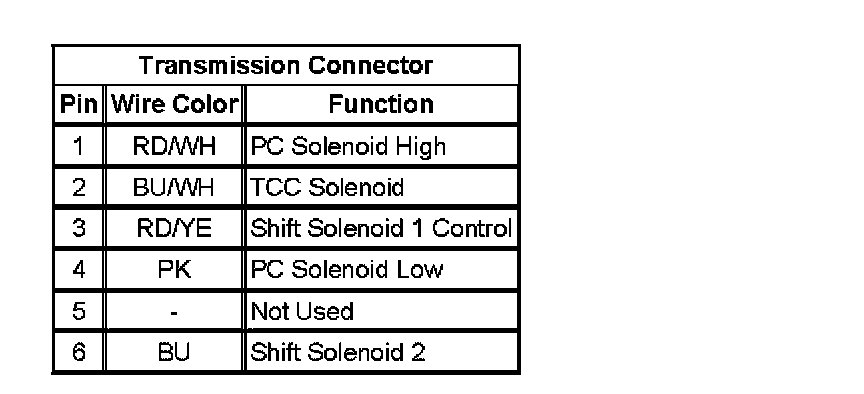

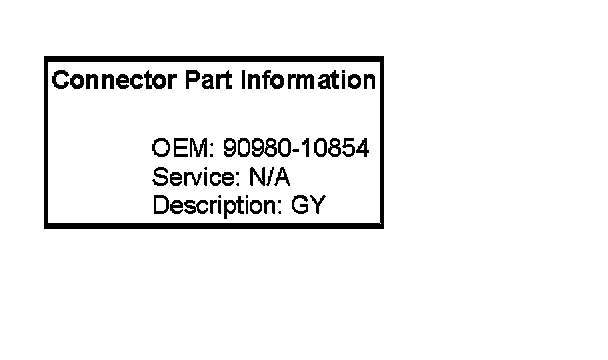

Transmission Connector







Transmission Connector:
