Data Communication Component Views

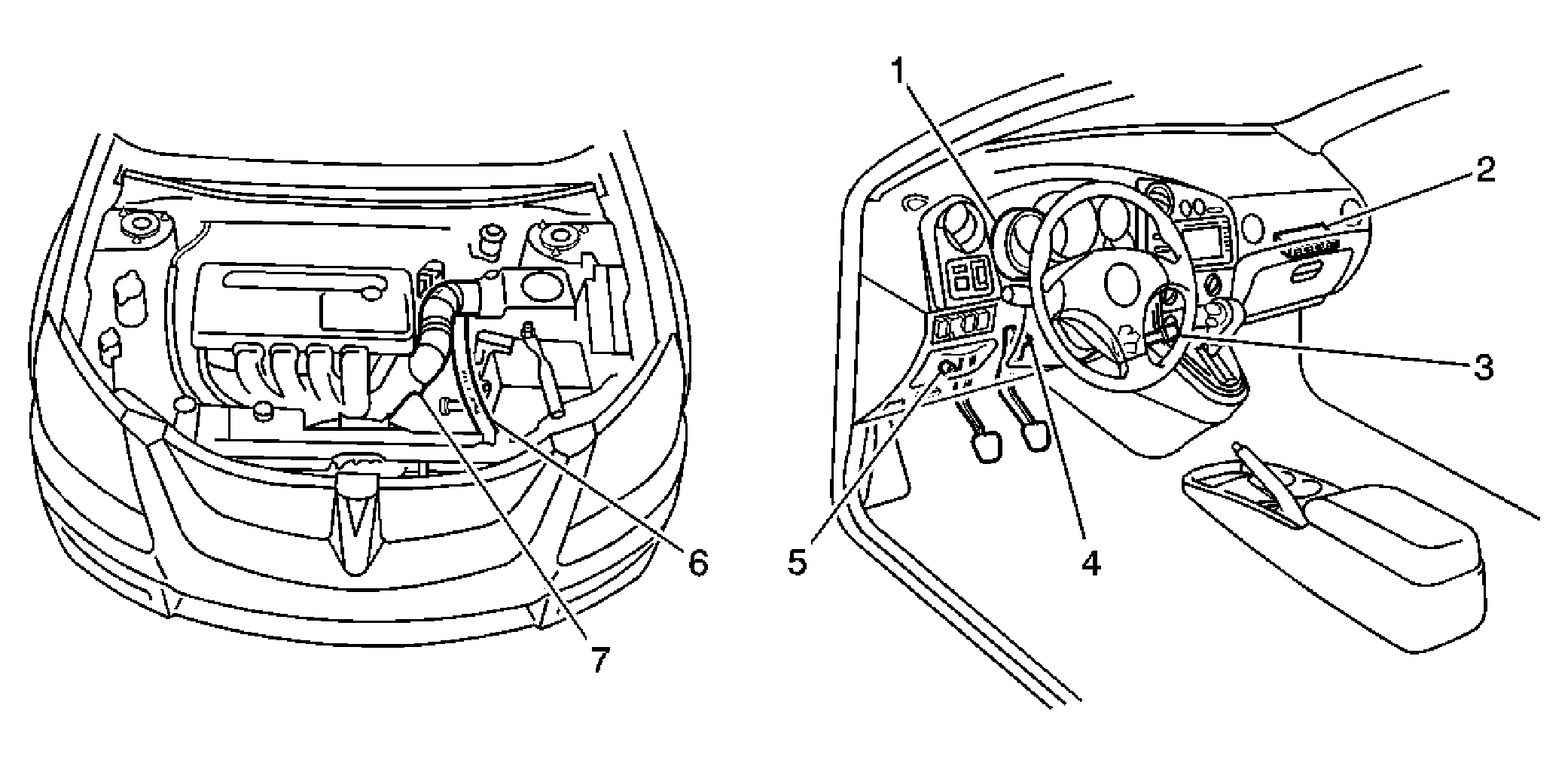

Fig 1: Cruise Control Components
GM1849794Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster
2 Powertrain Control Module
3 Cruise Control Switch
4 Stop Lamp Switch
5 Clutch Switch
6 Park/Neutral Position Switch
7 Throttle Actuator Control (TAC) Motor
