Installation Procedure

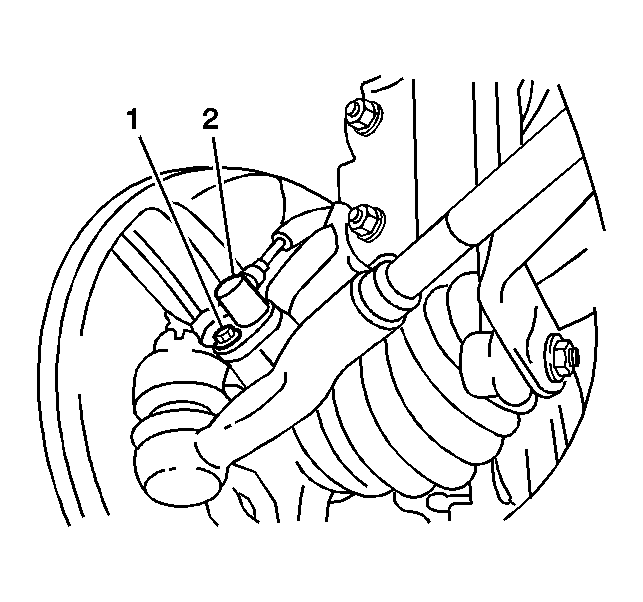

    Fig 1: Speed Sensor Retaining Bolt And Speed Sensor
    GM819502Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the wheel speed sensor (2) to the steering knuckle. Secure with 1 bolt.

    Tighten:  Tighten the front wheel speed sensor bolt to 8 N.m (71 lb in).

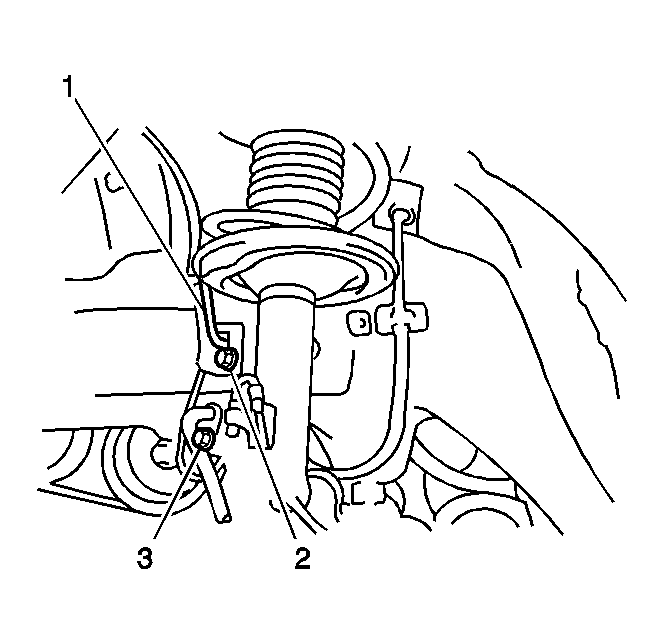

    2. Fig 2: Wiring Harness, Pigtail Harness Nut And Pigtail Harness Nut
    GM819500Courtesy of GENERAL MOTORS CORP.
  2. Connect the wheel speed wiring harness (1) to the vehicle. Secure with 2 bolts.

    Tighten:  Tighten the pigtail harness nut (2) to 8 N.m (71 lb in) and pigtail harness nut (3) to 29 N.m (21 lb ft).

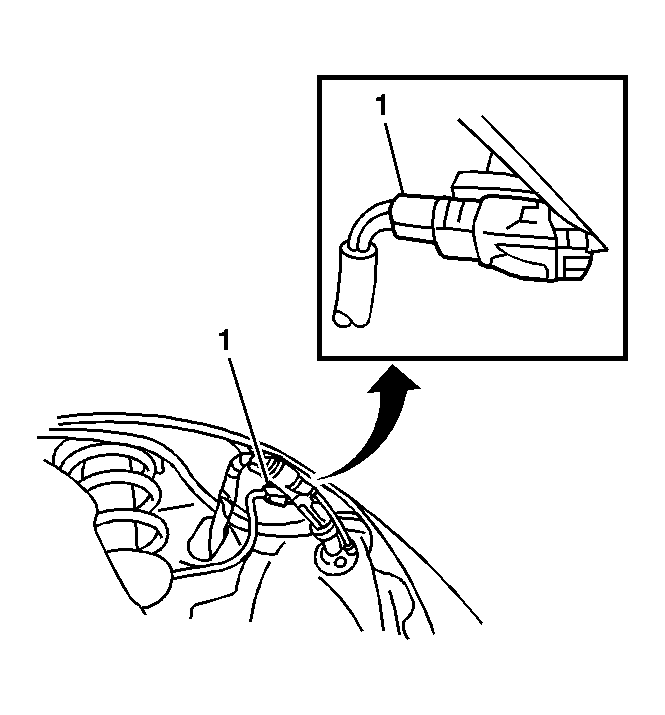

    3. Fig 3: Wheel Speed Sensor Electrical Connector
    GM819499Courtesy of GENERAL MOTORS CORP.
  3. Connect the wheel speed sensor electrical connector (1).
  4. Install the wheelhousing. Refer to Wheelhouse Panel Replacement .
  5. Perform Diagnostic System Check - Vehicle .
