Installation Procedure

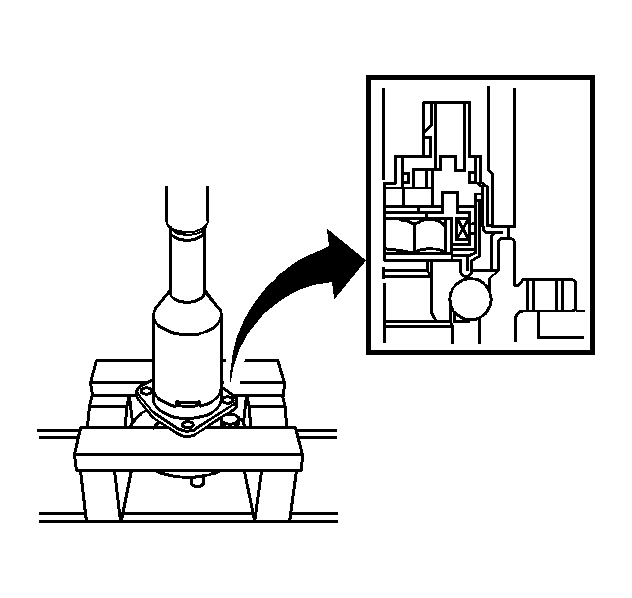

    Fig 1: Wheel Speed Sensor To Rear Wheel Hub
    GM840296Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the wheel speed sensor to rear wheel hub.
  2. Install the rear axle hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Rear .
    3. Fig 2: Wheel Cylinder Components
    GM829894Courtesy of GENERAL MOTORS CORP.
  3. Connect the wheel speed sensor electrical connector (6).
  4. Perform Diagnostic System Check - Vehicle .
