Removal Procedure

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the communication interface module. Refer to Communication Interface Module Replacement .
  2. Remove the communication vehicle interface unit. Refer to OnStar® Vehicle Interface Unit (VIU) Replacement .

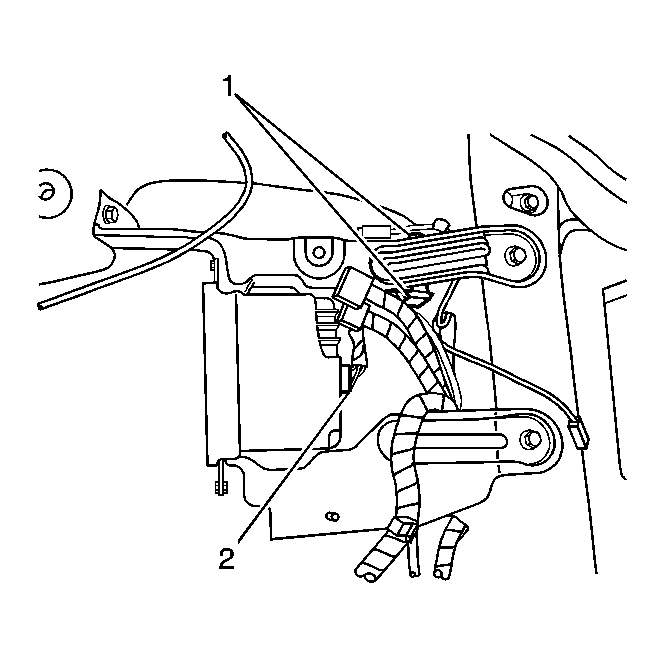

    3. Fig 1: Unclipping Antenna And Module Harness From Module Bracket
    GM1530168Courtesy of GENERAL MOTORS CORP.
  3. Unclip the antenna and module harness (1), from the module bracket.
  4. Disconnect the inverter electrical connector (2).

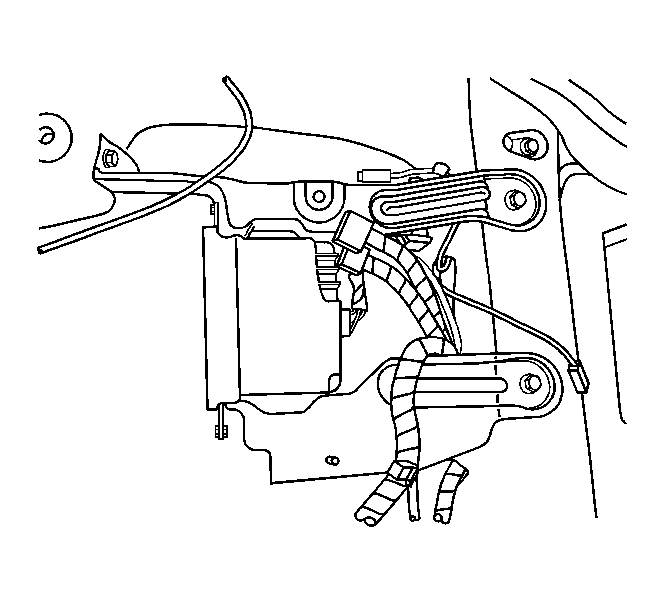

    5. Fig 2: Removing 3 Module Bracket Mounting Bolts
    GM1530173Courtesy of GENERAL MOTORS CORP.
  5. Remove 3 module bracket mounting bolts.
  6. Remove the module bracket.
