Navigation System Schematics

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

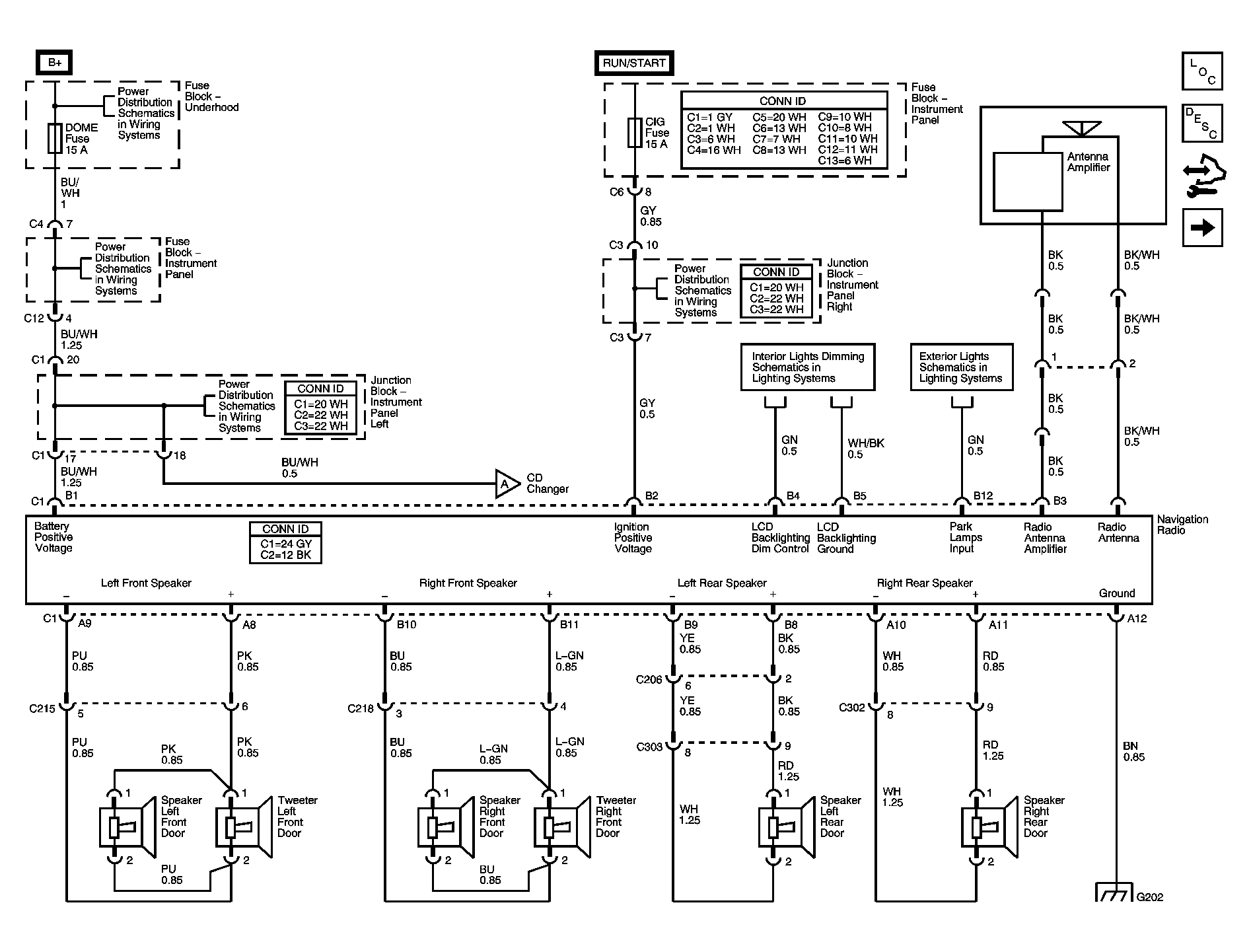

Fig 1: Navigation Radio - U1A And UZ6 Schematic
GM1426727Courtesy of GENERAL MOTORS CORP.

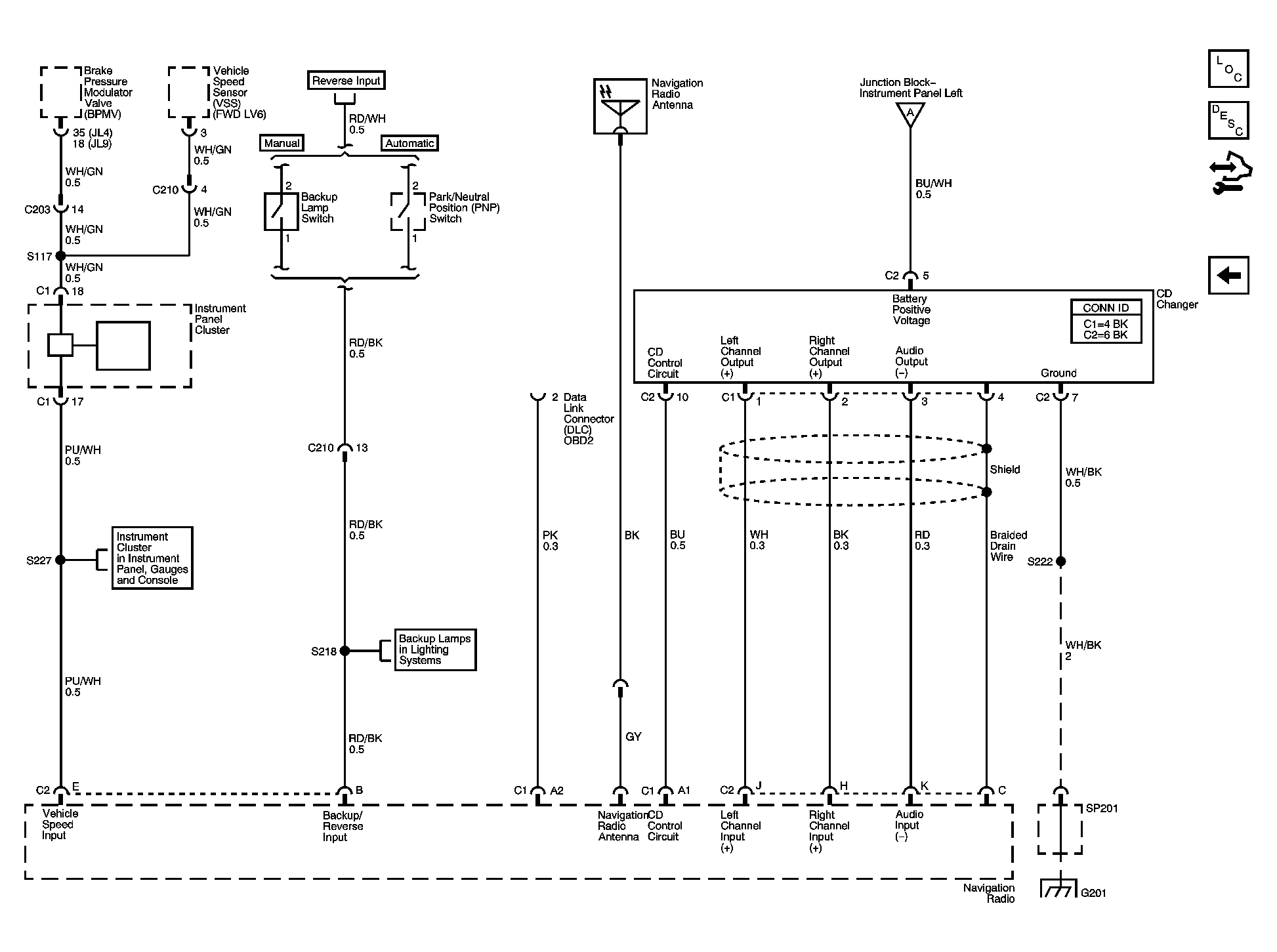

Fig 2: Navigation Radio and Remote CD Changer - U1A And UC6 Schematic
GM1426733Courtesy of GENERAL MOTORS CORP.
