Remote Function Connector End Views (Notchback)



Remote Function Connector End Views (Notchback)

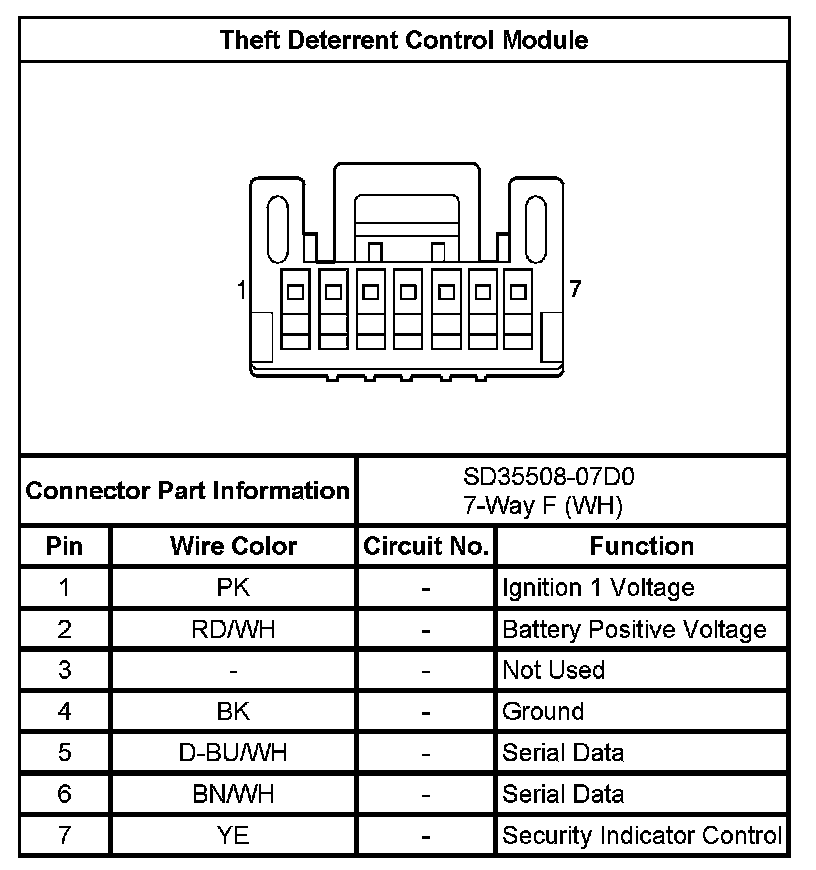

Theft Deterrent Control Module
