Shift Lock Control Connector End Views (Notchback)



Shift Lock Control Connector End Views (Notchback)

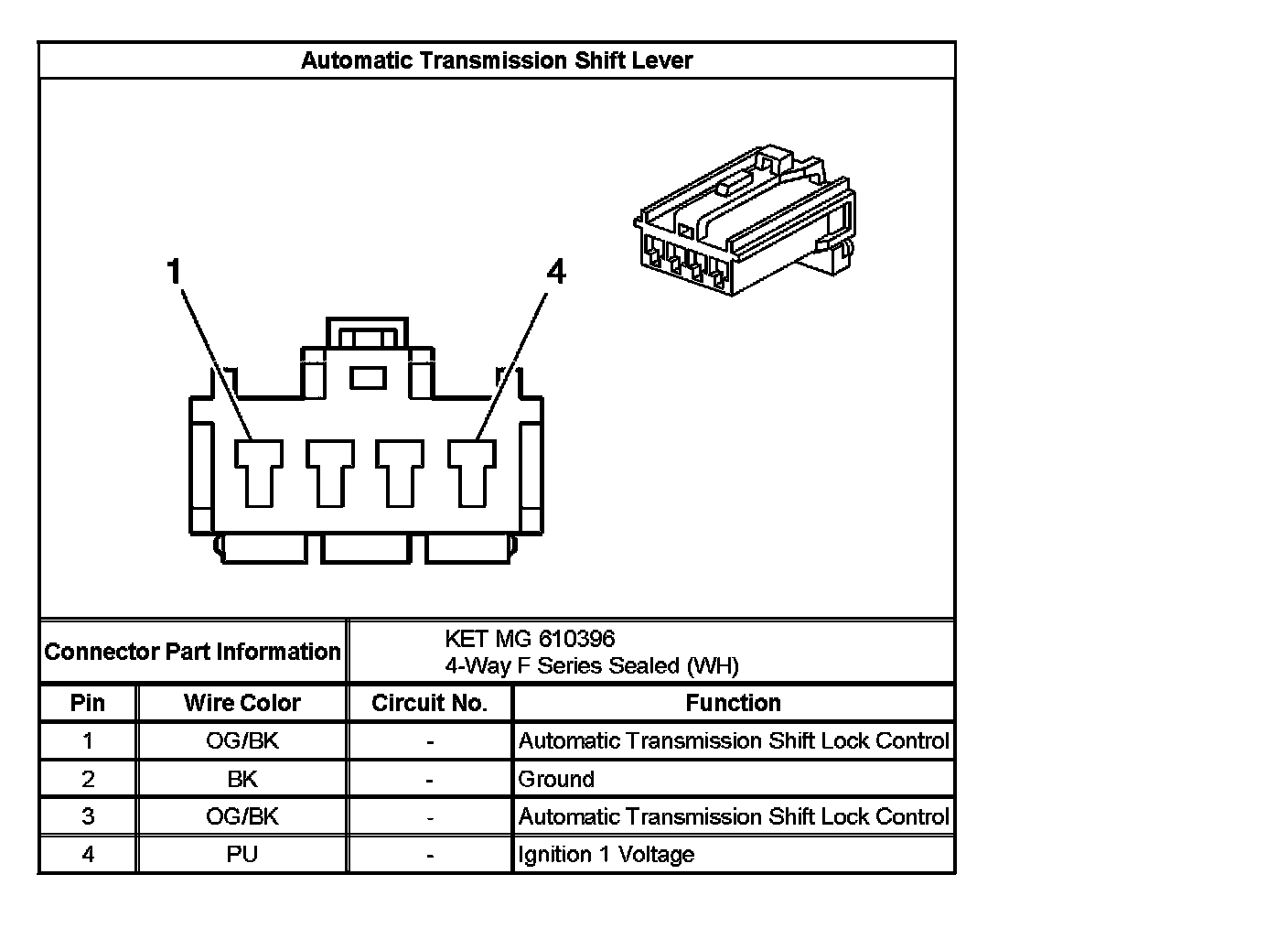

Automatic Transmission Shift Lever:
