Theft Deterrent System Connector End Views (Notchback)
Theft Deterrent System Connector End Views (Notchback)

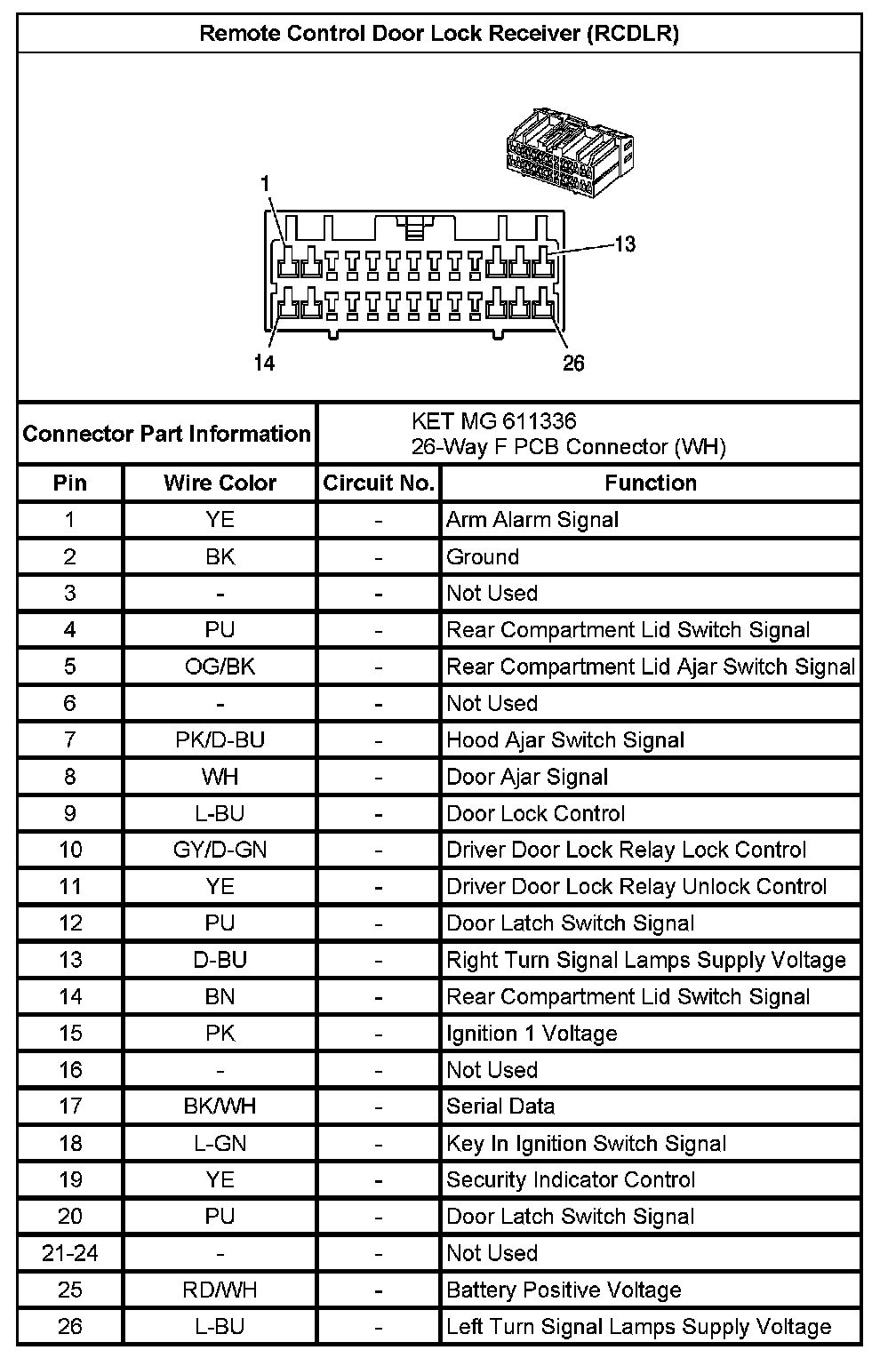

Remote Control Door Lock Receiver (RCDLR)
