Connector End Views (Notchback)
Connector End Views (Notchback)

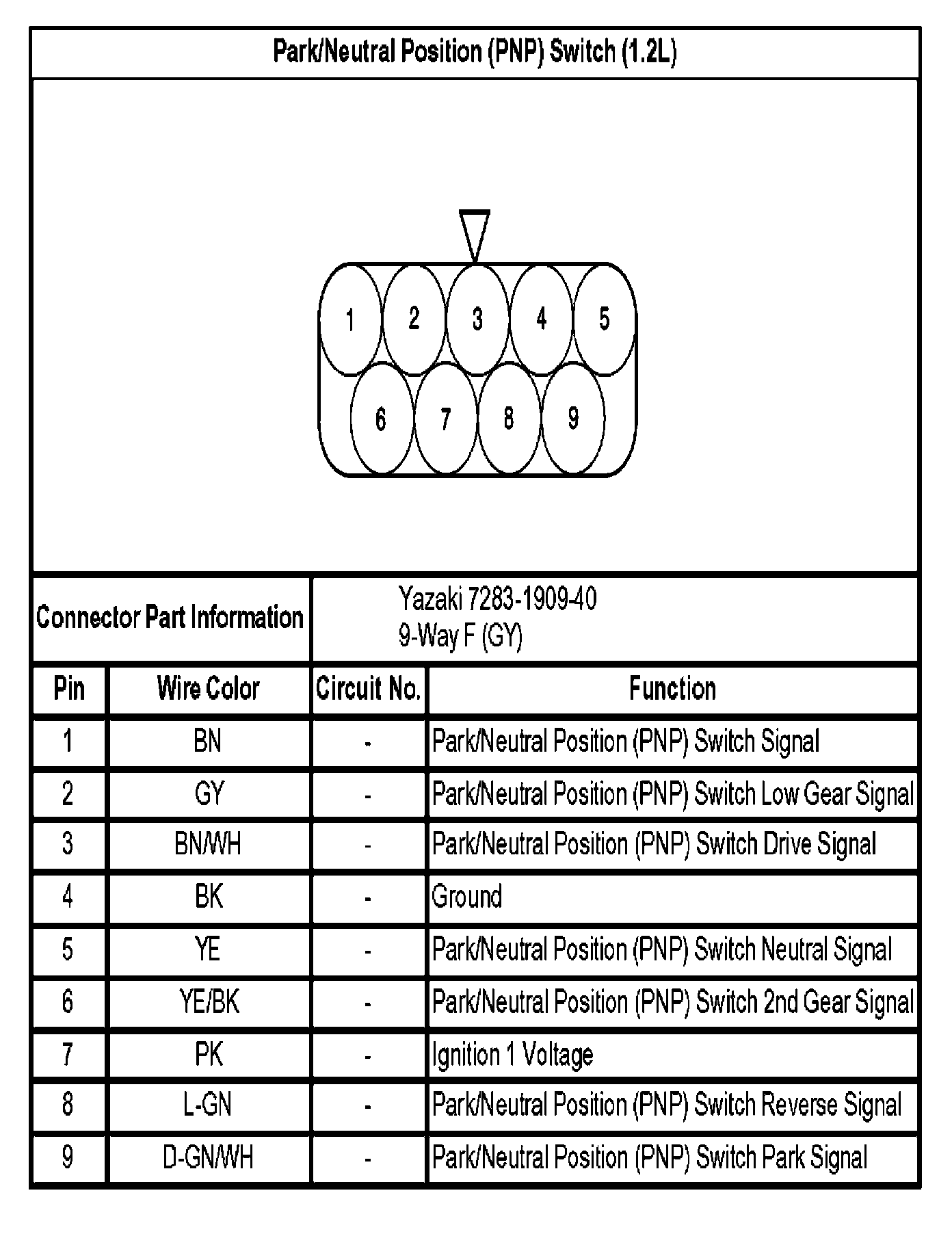

Park/Neutral Position (PNP) Switch (1.2L):

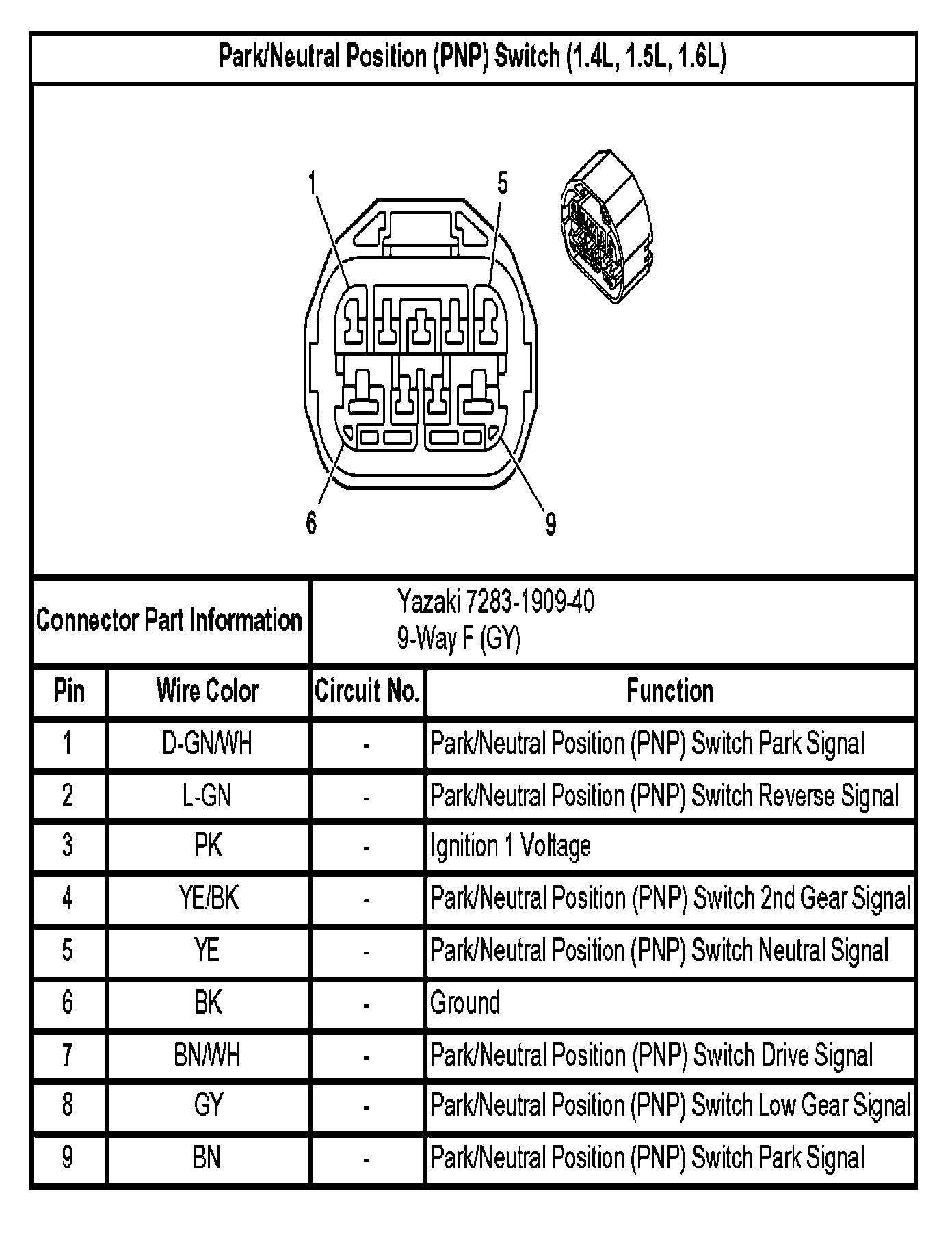

Park/Neutral Position (PNP) Switch (1.4L, 1.5L, 1.6L):
