Control Units

CONTROL UNITS LOCATION

Component Location
Body Control Module (BCM) Under center dash, on right side of center console. See Figure.
Digital Radio Receiver Center rear shelf, under trim pad. See Figure.
Electronic Brake Control Module (EBCM) Left side of engine compartment, near underhood fuse block. See Figure.
Electronic Power Steering (EPS) Control Module Under dash, near base of steering column. See Figure.
Engine Control Module (ECM) (2.2L & 2.4L) Left side of engine compartment, in front of underhood fuse block. See Figure.

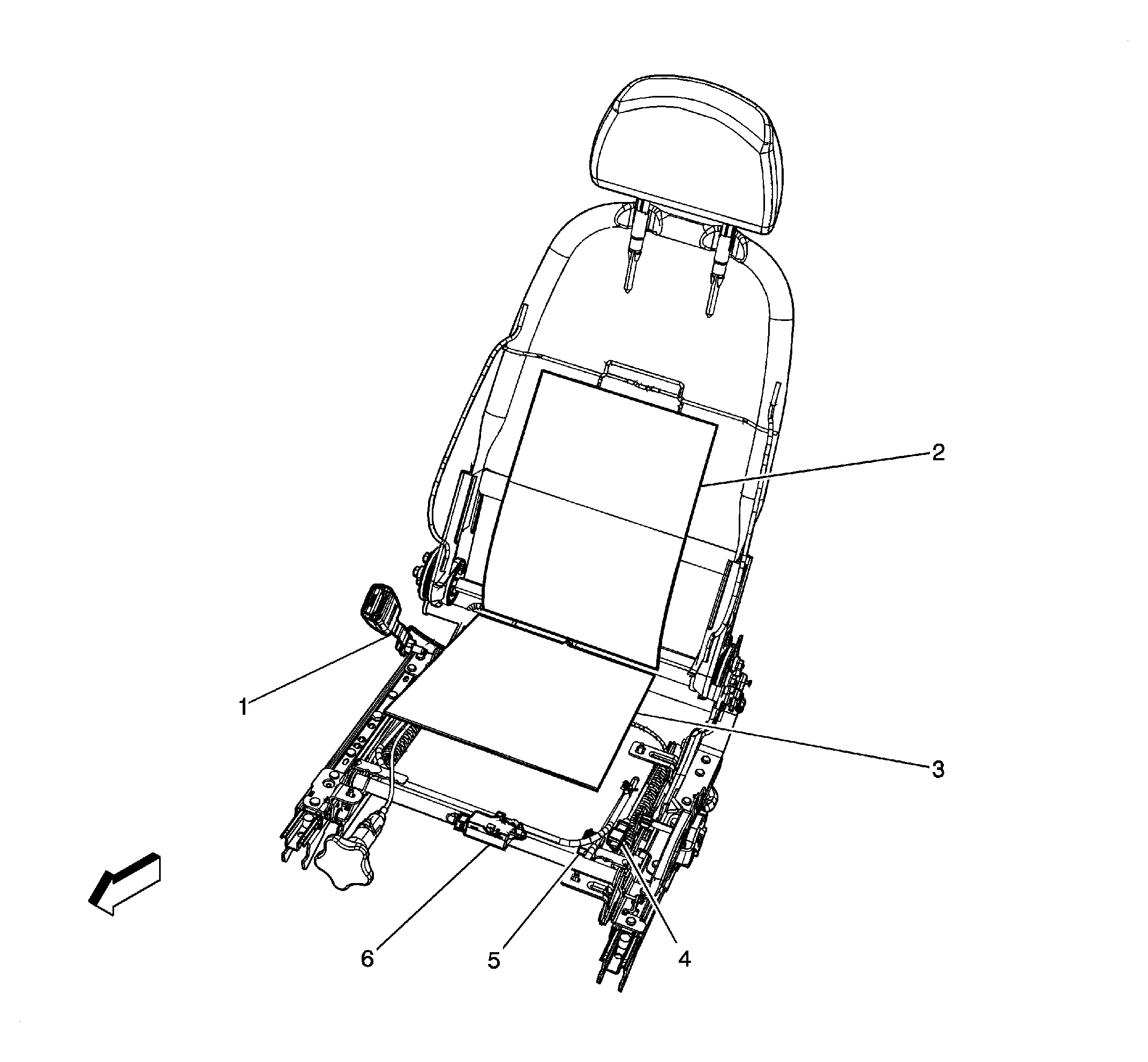

Heated Seat Module (Driver) (6) Under front center of driver seat. See Figure.

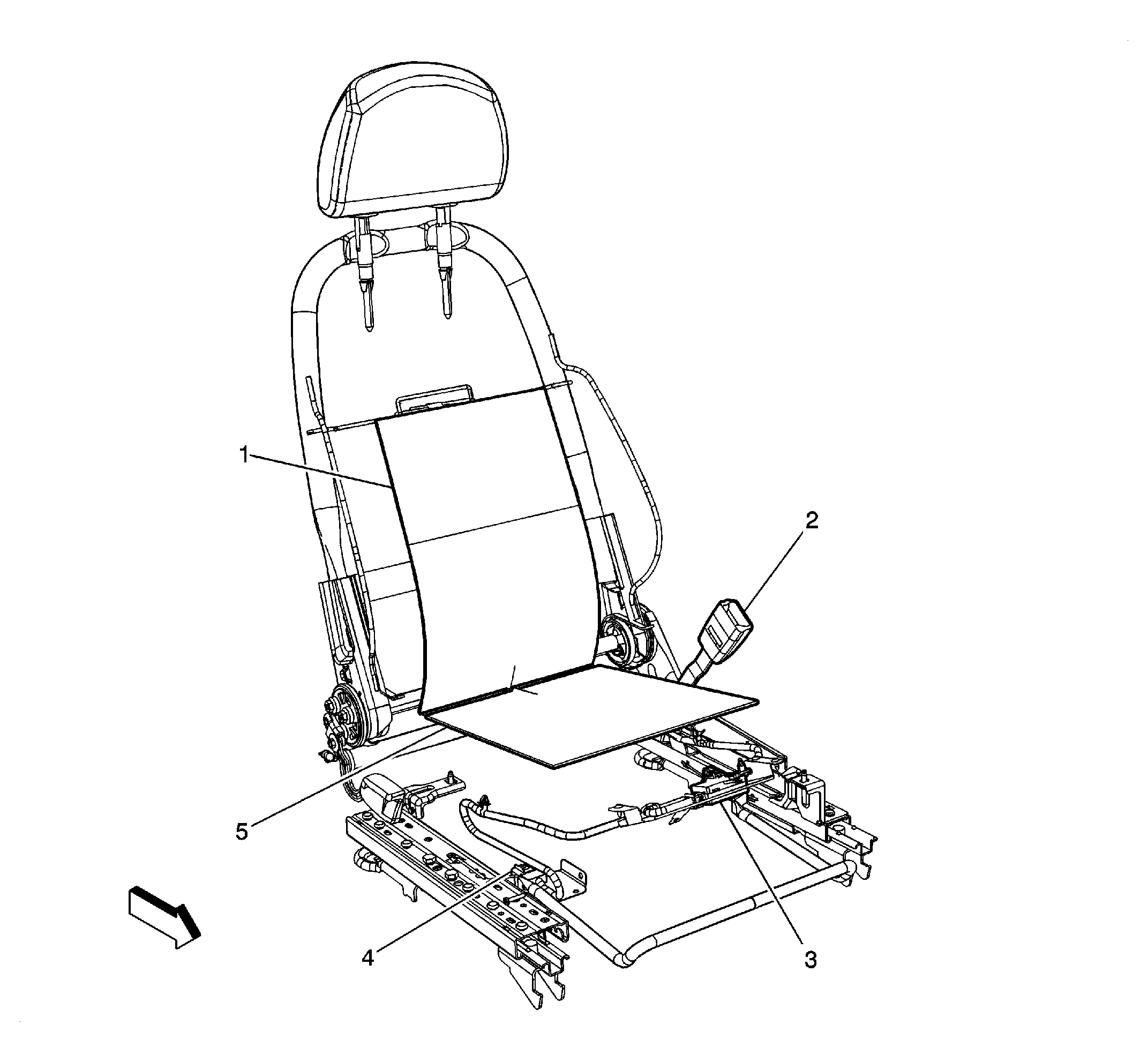

Heated Seat Module (Passenger) (3) Under front center of front passenger's seat. See Figure.
HVAC Control Module Center of dash, below radio. See Figure.

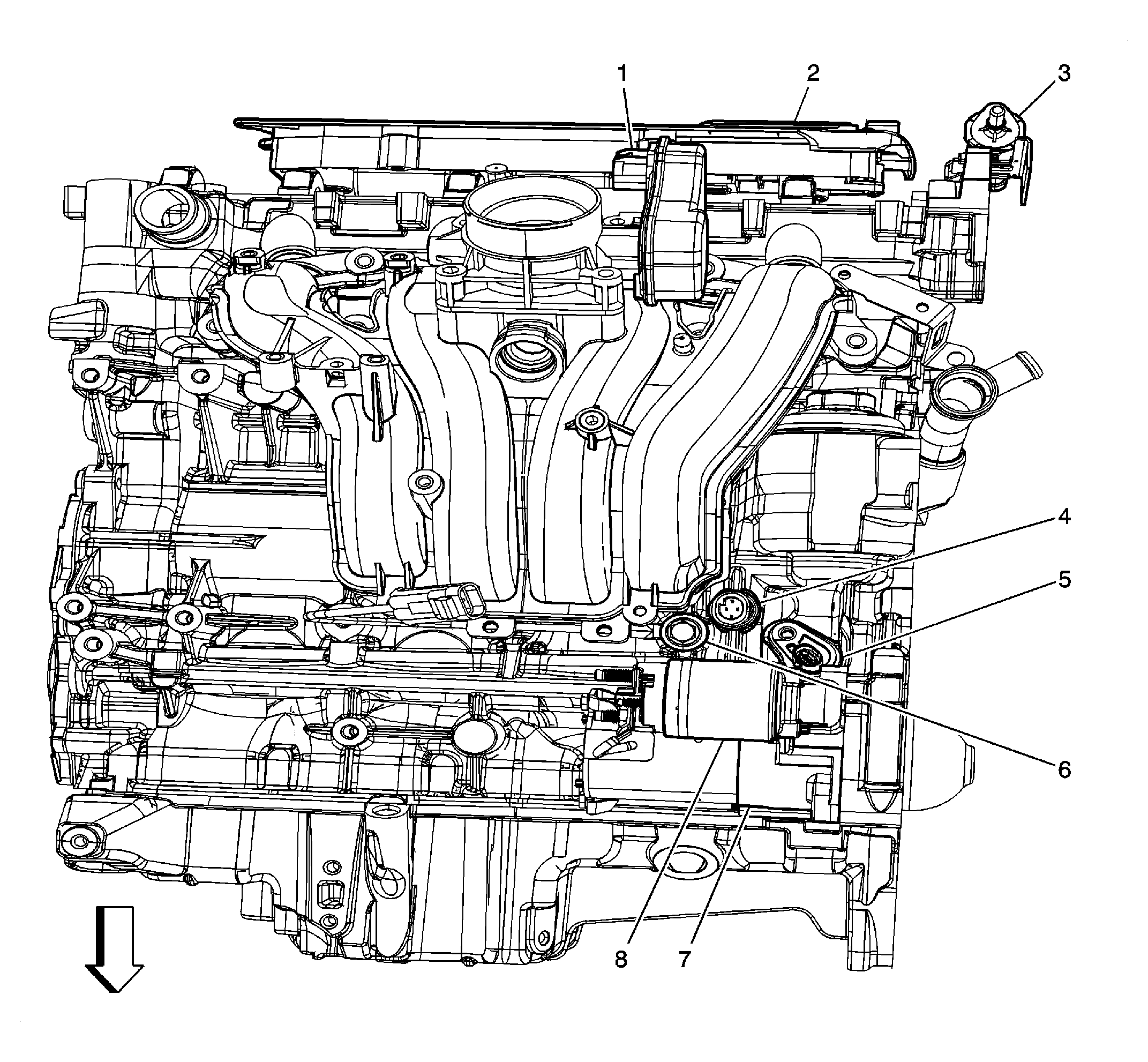

Ignition Coil Module 1 Top of engine, under cover at cylinder No. 1. See Figure.
Ignition Coil Module 2 Top of engine, under cover at cylinder No. 2. See Figure.
Ignition Coil Module 3 Top of engine, under cover at cylinder No. 3. See Figure.
Ignition Coil Module 4 Top of engine, under cover at cylinder No. 4. See Figure.
Ignition Control Module (ICM) (2) Top of engine. See Figure.
Inflatable Restraint Front Passenger Presence System (PPS) Module Under passenger seat cushion. See Figure.
Inflatable Restraint Sensing & Diagnostic Module (SDM) Under center console, behind parking brake. See Figure.
Remote Control Door Lock Receiver (RCDLR) Under right dash trim panel, above passenger's inflator module. See Figure.
Theft Deterrent Control Module In steering column, near ignition switch. See Figure.
Throttle Actuator Control (TAC) Module Top of intake manifold. See Figure.
Throttle Actuator Control (TAC) Module (2.2L) (1) Top left side of engine. See Figure.
Transmission Control Module (TCM) Left rear of engine compartment, behind powertrain control module/engine control module.
Vehicle Communication Interface Module (VCIM) Under rear, shelf between speakers. See Figure.
